Plan 510013WDY

Well-Designed Southern House Plan

Heated S.F.
3,206
Beds
4 - 5
Baths
3 - 4
Stories
1
Cars
3

Floor Plan

Plan 510013WDY

Main Level
Main Level
Bonus
Bonus

Plan 510013WDY

M-F 9am-5pm EST |

1-203-761-8500

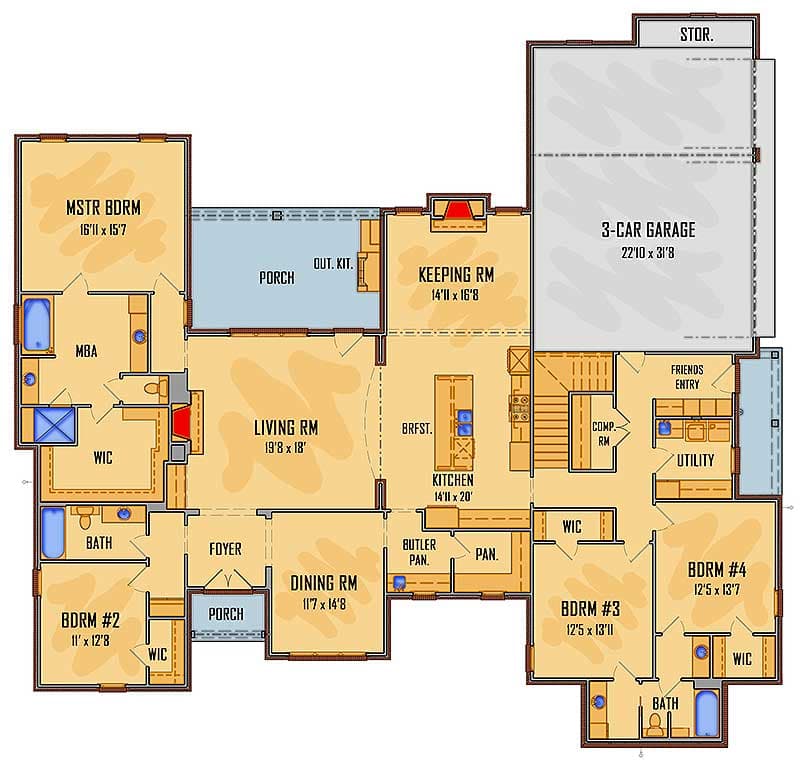

Main Level

Plan 510013WDY: Well-Designed Southern House Plan - Floor Plan - Main Level - Acadian, European, Louisiana-Style, Southern

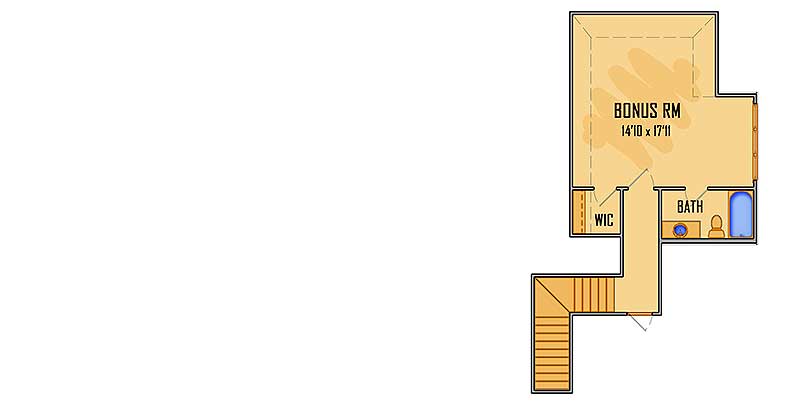

Bonus

Plan 510013WDY: Well-Designed Southern House Plan - Floor Plan - Bonus - Acadian, European, Louisiana-Style, Southern

Plan Details

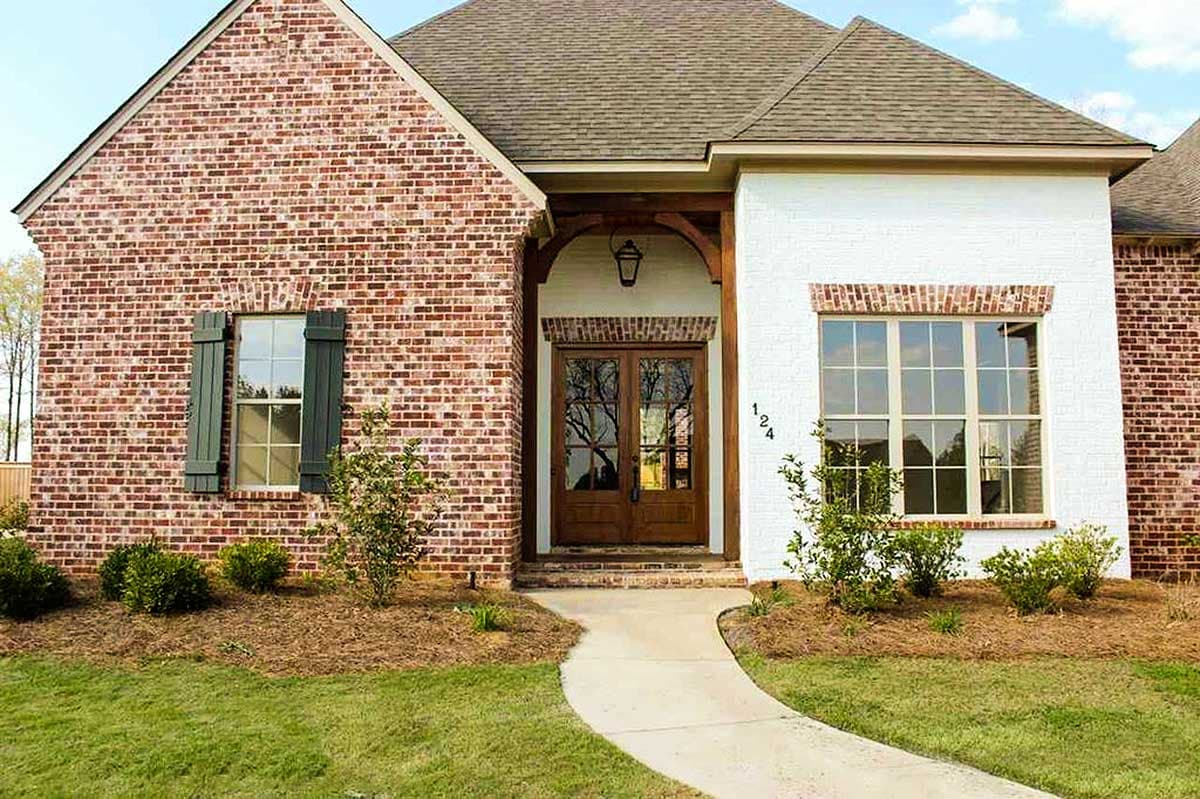

  • The distinctive brick exterior of this Southern house plan is topped by an elegant hip roof.

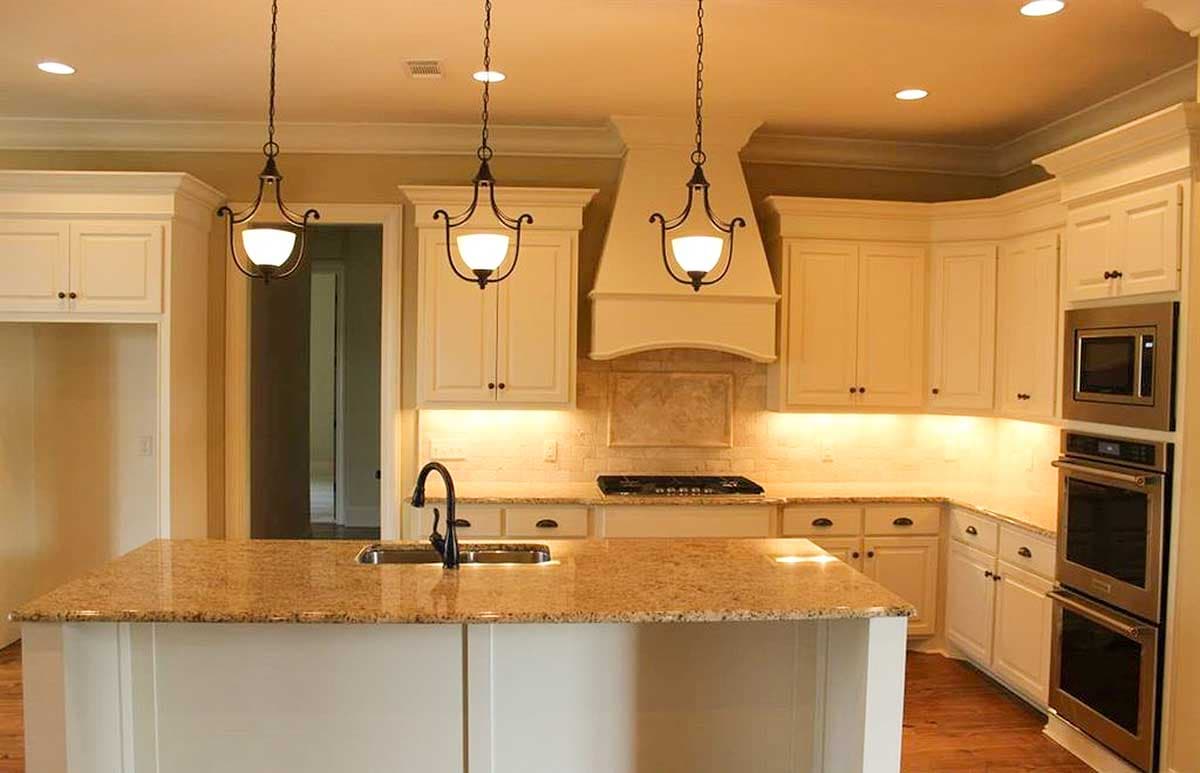

  • While the formal dining room is a room unto itself, the living room, kitchen and keeping room all blend together in one space.
  • There are fireplaces in the large living room and the keeping room.
  • Windows look out onto the covered porch with its outdoor kitchen.
  • A computer nook off the garage entry is a quiet spot for the kids to do their homework.
  • Homeowners get a spacious master suite with a giant walk-in clothes closet.
  • The additional bedrooms are split up with two on the right side and one on the left facing front.
  • Bonus space on the second floor comes drawn with a walk-in closet and full bathroom so it could easily serve as an extra bedroom.

What's Included

This plan has 8 pages as follows:

  1. Coversheet Color Rendering
  2. Floor Plan with Dimensions, Notes, Door and Window Sizes, Beam Sizing

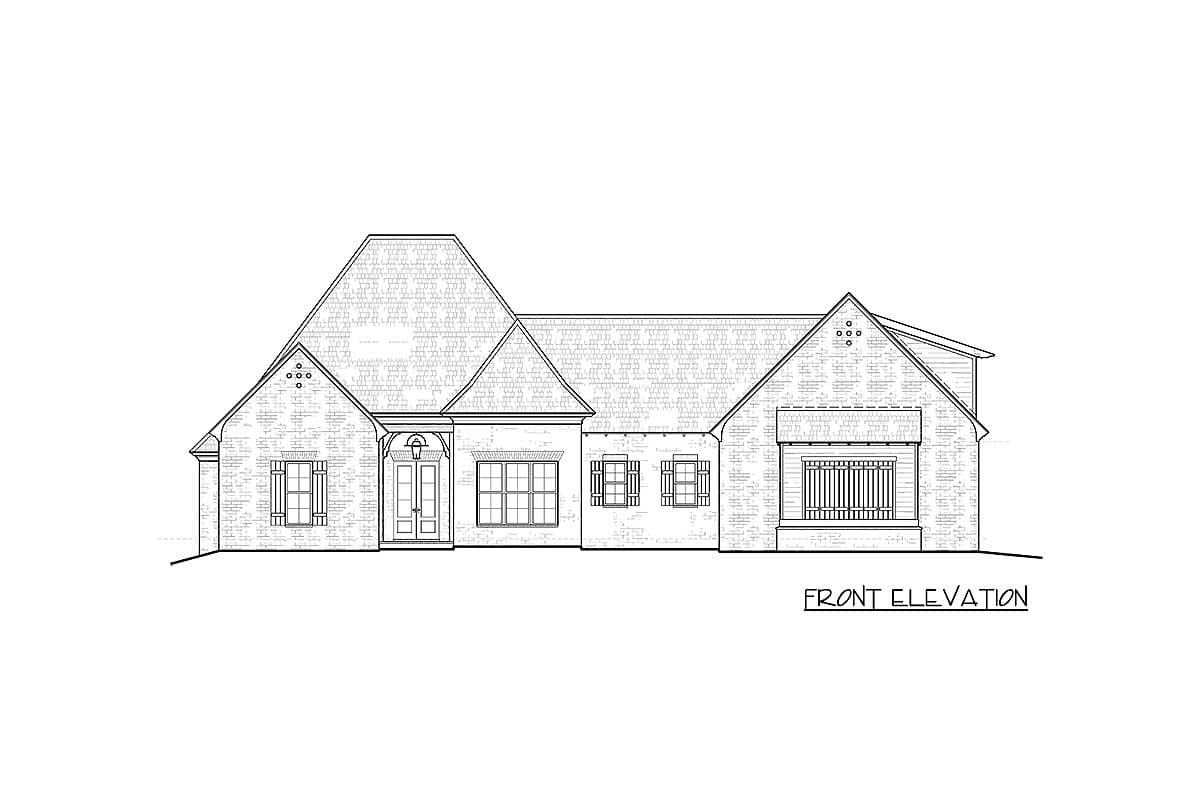

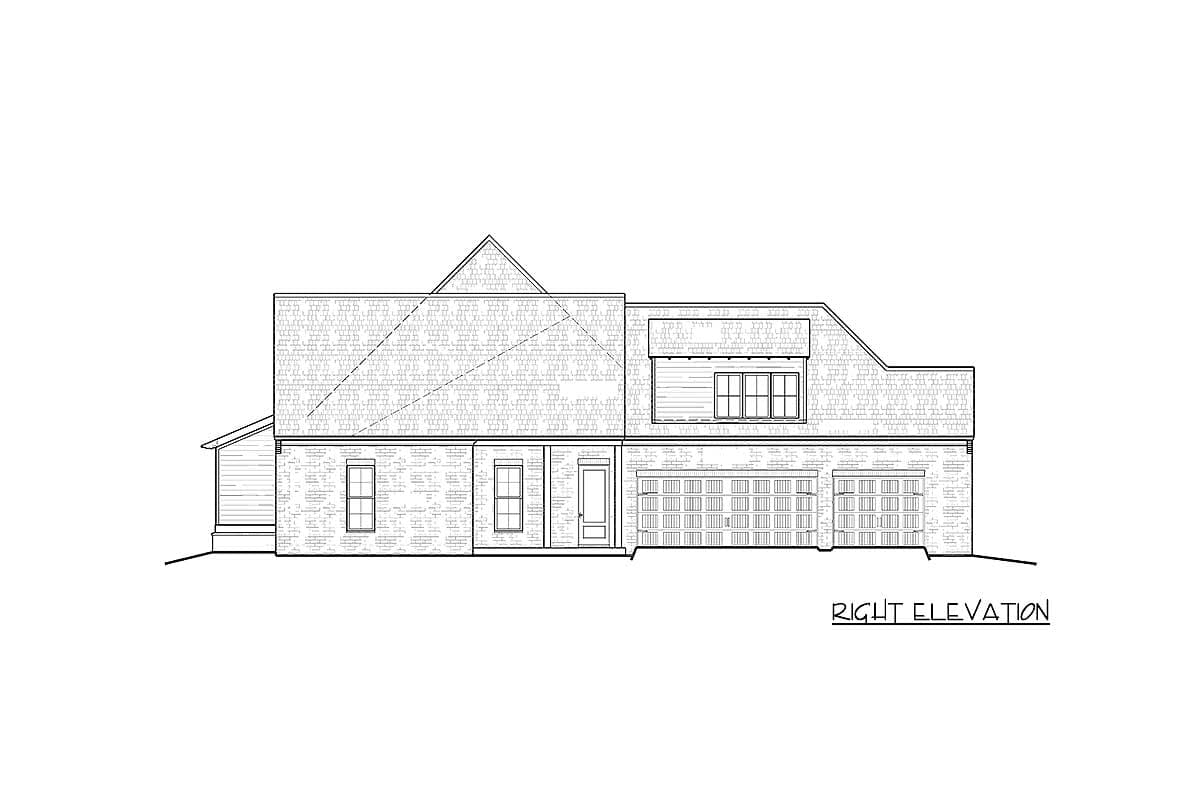

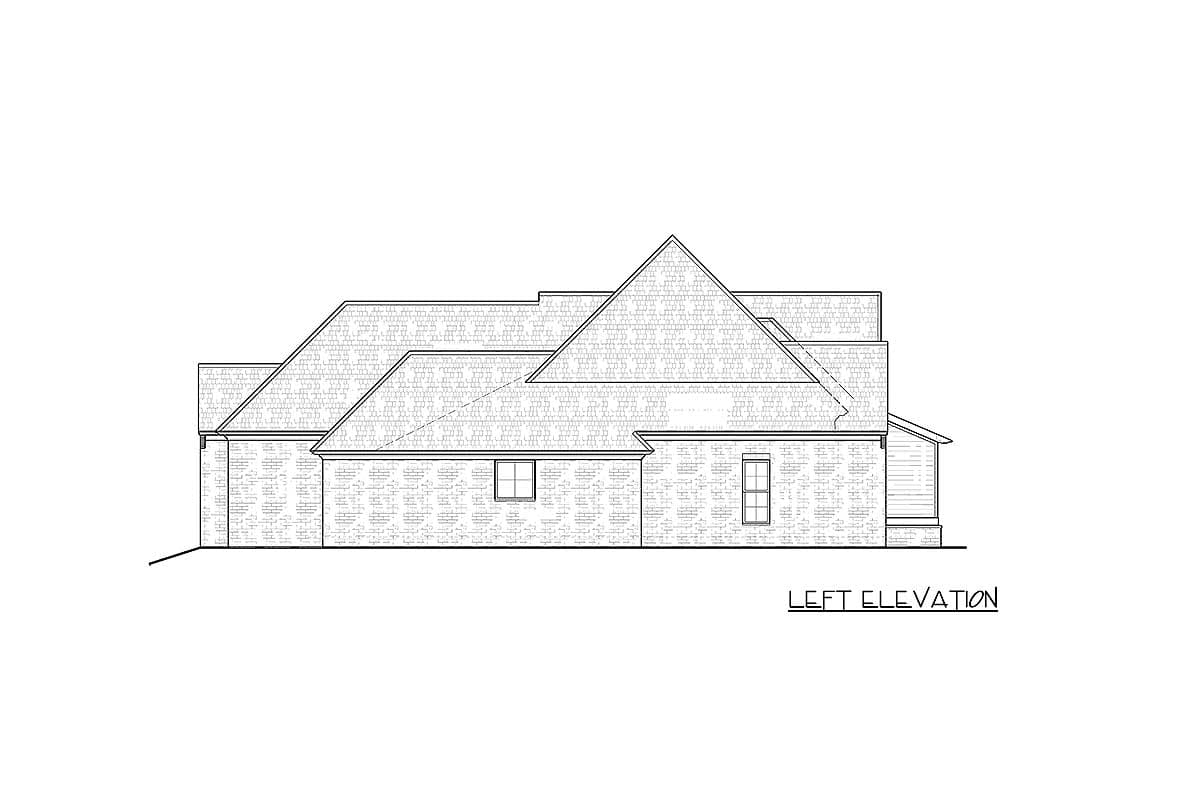

  3. 2nd Floor, Front Elevation, Leftside Elevation Cornice Detail

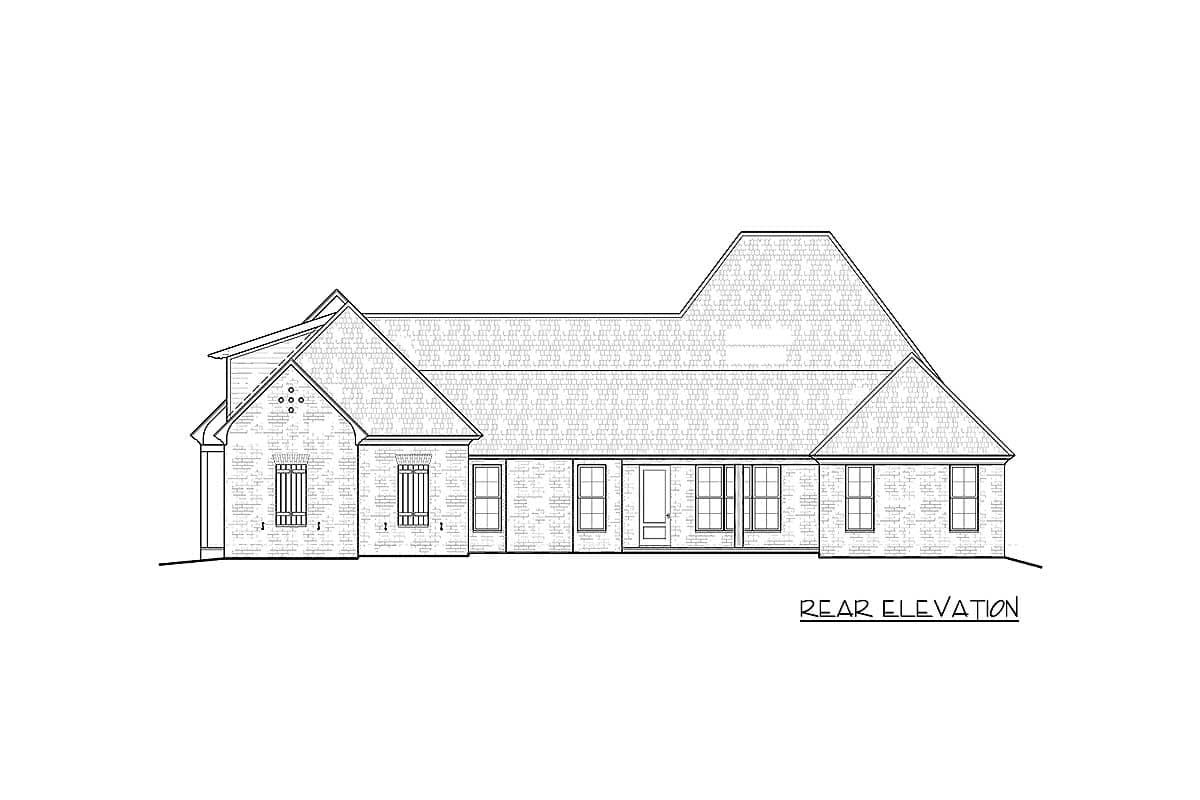

  4. Rear Elevation, Rightside, Building Section, Rafter Sch/
  5. Roof Plan, Building Section, Cornice, Details
  6. Electrical Plans
  7. Slab Foundation Plans
  8. Footing Details for Slab

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,206 sq. ft.

1st Floor

3,206 sq. ft.

Bonus

504 sq. ft.

Porch, Front

38 sq. ft.

Porch, Rear

249 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 1"

Depth

76' 5"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

819 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Living Room

12' 0''

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

European

Louisiana-Style

Southern

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Outdoor Kitchen

Walk-in Pantry

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,206 sq. ft.

1st Floor

3,206 sq. ft.

Bonus

504 sq. ft.

Porch, Front

38 sq. ft.

Porch, Rear

249 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3 or 4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 1"

Depth

76' 5"

Max Ridge Height

31' 6"

Garage

Type

Attached

Area

819 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Living Room

12' 0''

Roof Details

Primary Pitch

16 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Acadian

European

Louisiana-Style

Southern

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Jack & Jill Bath

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Outdoor Kitchen

Walk-in Pantry

Plan Collections

Photo Gallery
