Your Own Home Theater

Plan 59783ND

  • 3,206

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This gorgeous home plan is full of amenities. French doors lead into the private study/library from the foyer.
  • Elegant columns divide the dining room from the great room with media center and fireplace - perfect for entertaining.
  • Relax in the whirlpool bath or next to the fireplace in your luxurious master suite on the main level of this house plan.
  • While upstairs, you're sure to enjoy the computer center/loft area, as well as the home theater down the hall.
  • A generous bonus area is also included in this design.
  • See 59063ND for a related house plan .

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

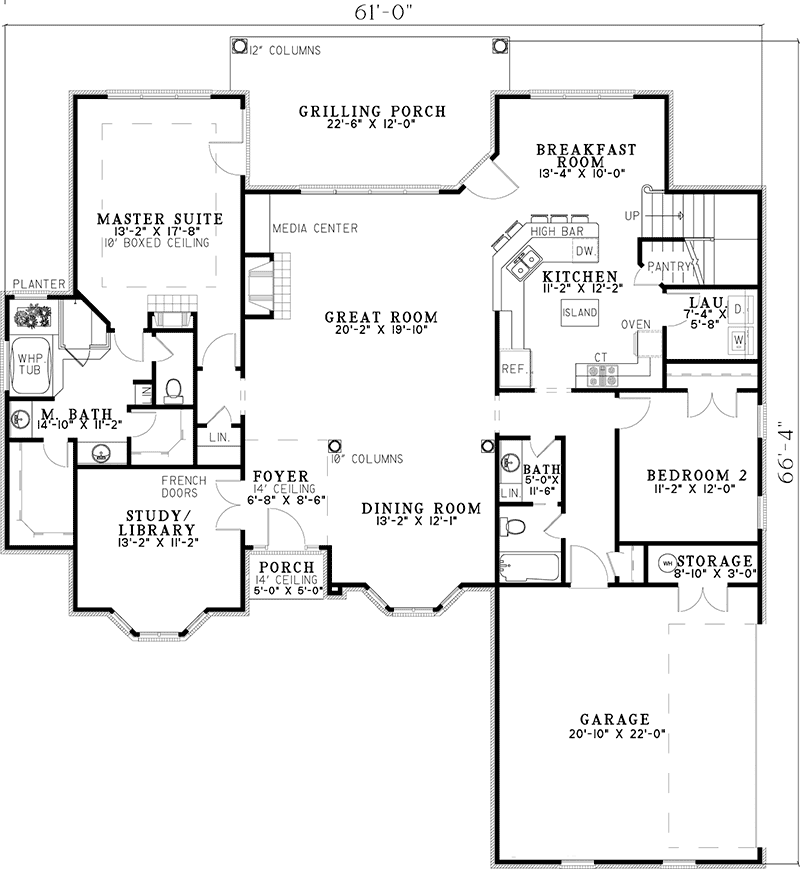

Your Own Home Theater - 59783ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

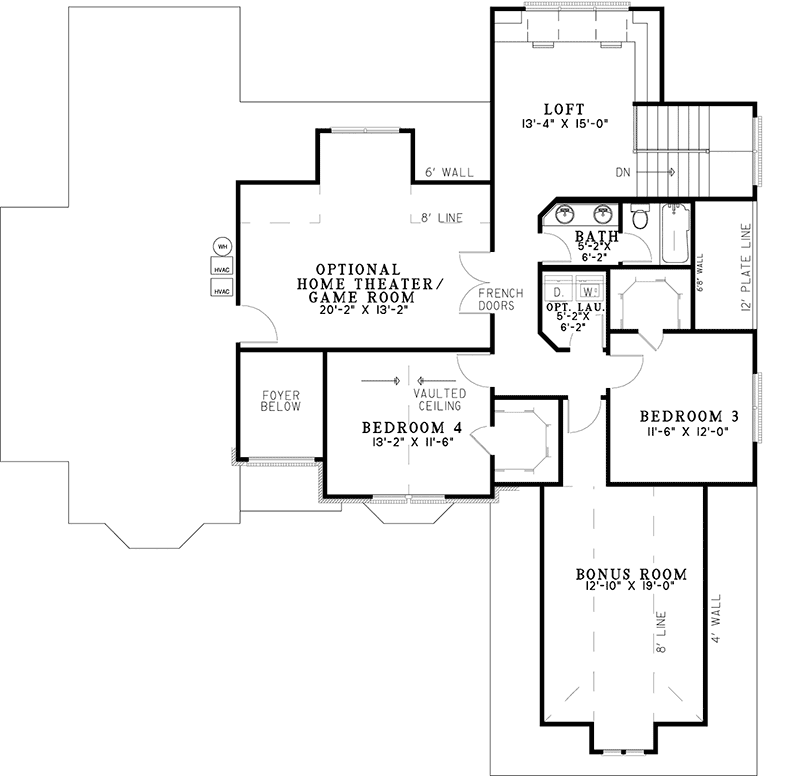

Your Own Home Theater - 59783ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,206 sq. ft.
  • 1st Floor: 2,107 sq. ft.
  • 2nd Floor: 1,099 sq. ft.
  • Bonus: 298 sq. ft.
  • Porch, Combined: 271 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 61' 0"
  • Depth: 66' 4"
  • Max ridge height: 29' 8"

Garage

  • Type: Attached
  • Area: 510 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
