Plan 100343GHR

Exclusive

1-Bed Contemporary ADU House Plan Under 600 Sq Ft

Heated S.F.
576
Beds
1
Baths
1
Stories
1

Floor Plan

Plan 100343GHR

Main Level
Main Level

Plan 100343GHR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

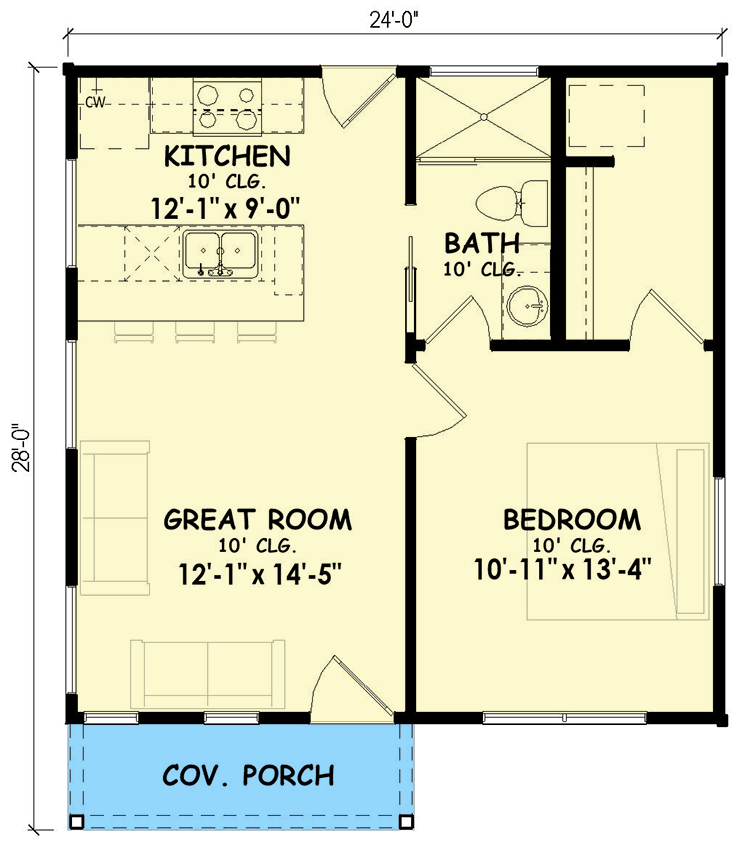

Plan 100343GHR: 1-Bed Contemporary ADU House Plan Under 600 Sq Ft - Floor Plan - Main Level - Cabin, Contemporary, Cottage, Country, Modern Farmhouse, Traditional

Plan Details

  • This contemporary ADU house plan offers you 576 square feet of heated living space with 1 bed and 1 bath.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details
  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

576 sq. ft.

1st Floor

576 sq. ft.

Porch, Front

50 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

28' 0"

Max Ridge Height

16' 6"

Ceiling Heights

First Floor

10' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Cabin

Contemporary

Cottage

Country

Modern Farmhouse

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Exclusive

Square Footage Breakdown

Total Heated Area

576 sq. ft.

1st Floor

576 sq. ft.

Porch, Front

50 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

24' 0"

Depth

28' 0"

Max Ridge Height

16' 6"

Ceiling Heights

First Floor

10' 1"

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Cabin

Contemporary

Cottage

Country

Modern Farmhouse

Traditional

Special Features

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Exclusive
