Plan 430125LY

1-Bed Contemporary Mountain House Plan with U-Shaped Kitchen - 900 Sq Ft

Heated S.F.
900
Beds
1
Baths
1
Stories
2

Floor Plan

Plan 430125LY

Main Level
Main Level
2nd Floor
2nd Floor

Plan 430125LY

M-F 9am-5pm EST |

1-203-761-8500

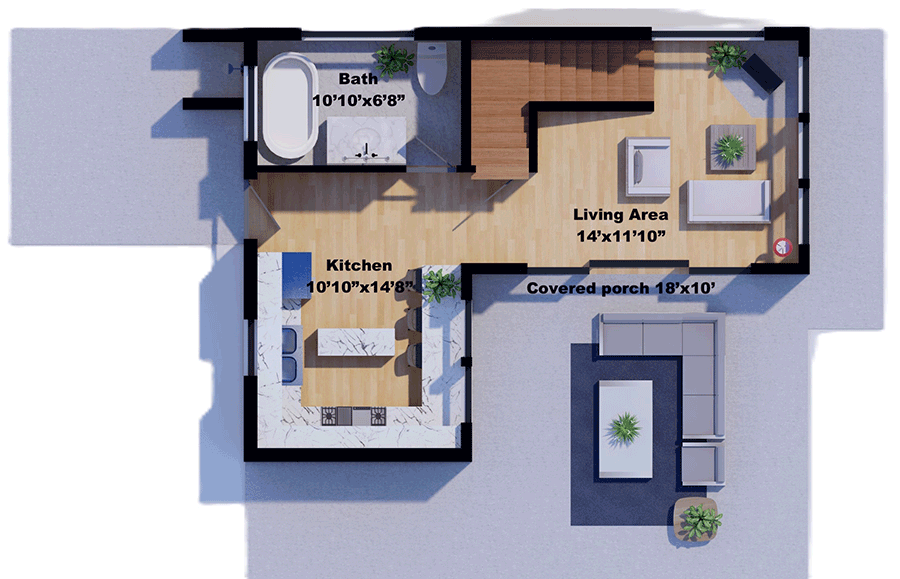

Main Level

Plan 430125LY: 1-Bed Contemporary Mountain House Plan with U-Shaped Kitchen - 900 Sq Ft - Floor Plan - Main Level - Contemporary, Mountain

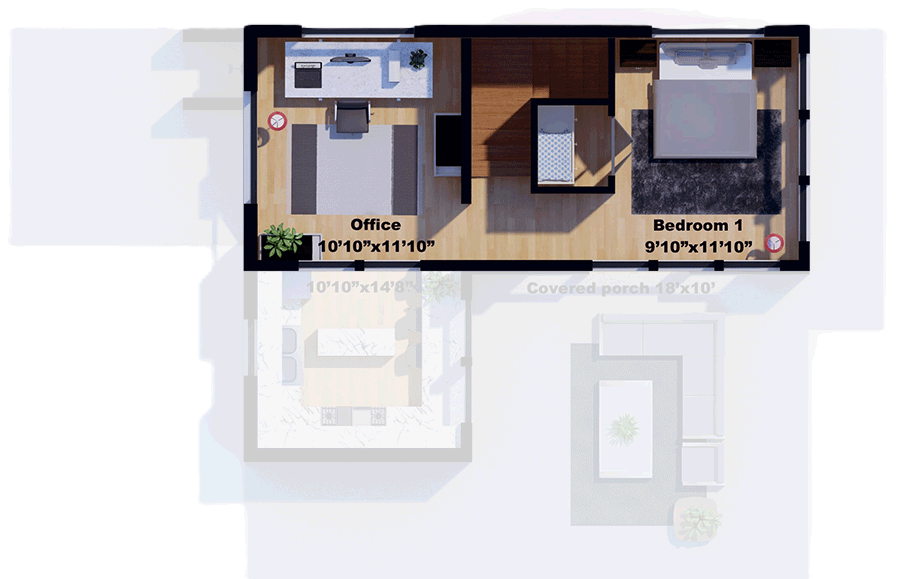

2nd Floor

Plan 430125LY: 1-Bed Contemporary Mountain House Plan with U-Shaped Kitchen - 900 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Mountain

Plan Details

  • This contemporary mountain house plan offers you 900 square feet of heated living space with 1 bed and 1 bath.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover sheet
  • Plot Plan (survey must be provided)
  • Roof plan
  • Floor plan
  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

900 sq. ft.

1st Floor

510 sq. ft.

2nd Floor

390 sq. ft.

Porch, Front

180 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

30' 0"

Max Ridge Height

22' 6"

Ceiling Heights

First Floor

9'

Room

Ceiling Type

Height

Kitchen

Slope

9' 0''

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mountain

Special Features

Home Office

Master Suite - Upstairs

Plan Collections

Home Office
