1-Bed Guesthouse with 3-Car Carport and an Upper Floor Porch

Heated S.F.
1,774
Beds
1
Baths
2
Stories
2
Cars
3

Floor Plan

Plan 871027JEN

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level Foundation
Lower Level Foundation

Plan 871027JEN

M-F 9am-5pm EST |

1-203-761-8500

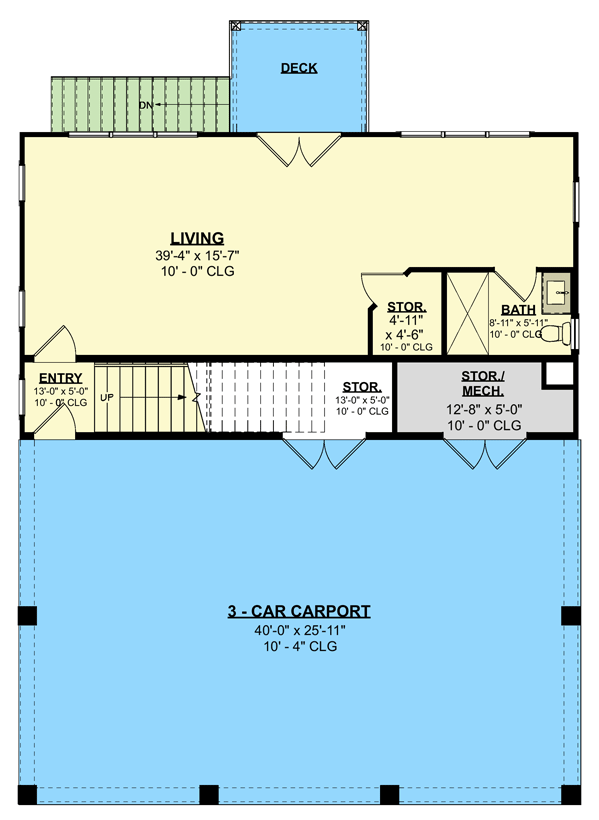

Main Level

Plan 871027JEN: 1-Bed Guesthouse with 3-Car Carport and an Upper Floor Porch - Floor Plan - Main Level - Craftsman, Rustic, Vacation

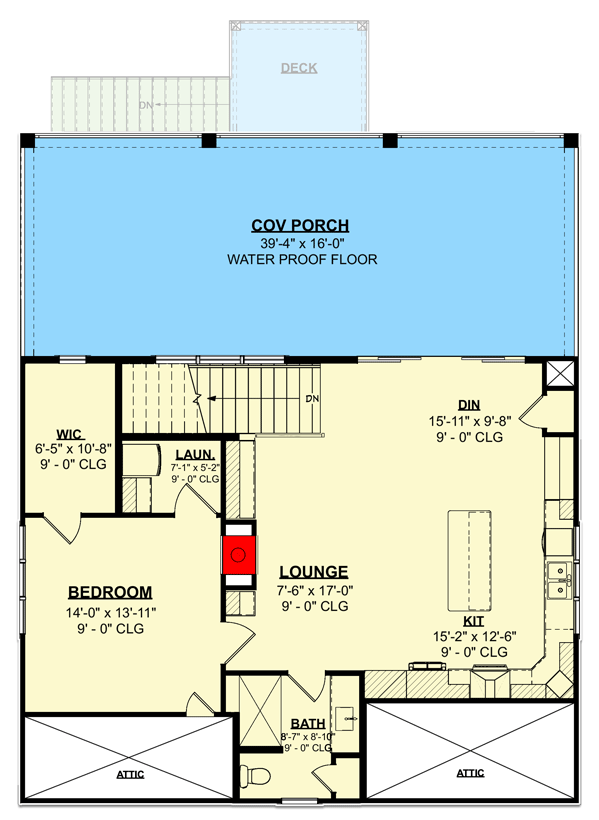

2nd Floor

Plan 871027JEN: 1-Bed Guesthouse with 3-Car Carport and an Upper Floor Porch - Floor Plan - 2nd Floor - Craftsman, Rustic, Vacation

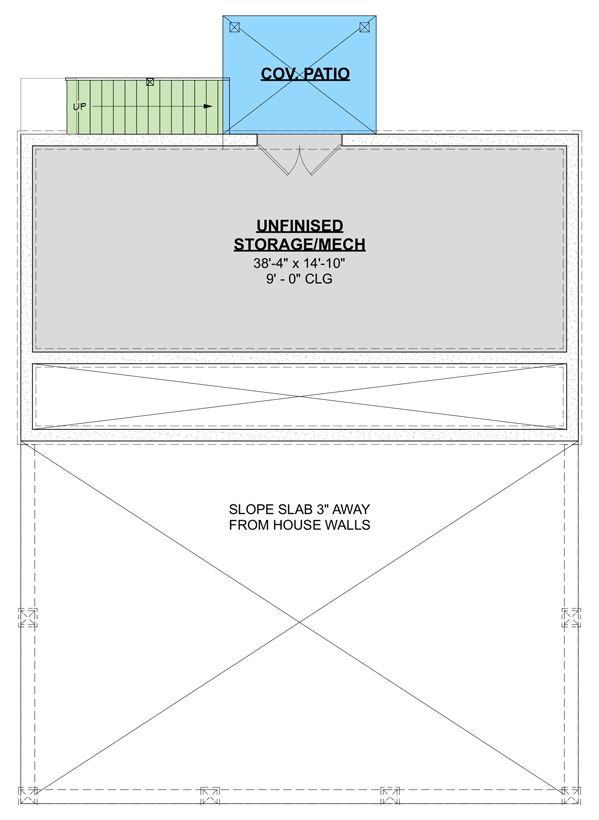

Lower Level Foundation

Plan 871027JEN: 1-Bed Guesthouse with 3-Car Carport and an Upper Floor Porch - Floor Plan - Lower Level Foundation - Craftsman, Rustic, Vacation

Plan Details

  • This 1-bed guesthouse prioritizes fun, relaxation, and enjoyment of your natural setting with nearly a third of the livable space designed for outdoor enjoyed including the large covered porch, a deck, and a covered patio.
  • There is ample entertaining space with a large living room downstairs and an open lounge, dining, and kitchen upstairs.
  • The bedroom on the upper level has a walk-in closet and direct access to a laundry room.
  • You'll find a surprising amount of storage space for housing gear and toys, both on the lower ground level and on the top “attic” level.
  • A 3-car carport can house multiple vehicles and a boat or 4-wheelers.
  • BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

What's Included

  • Foundation plan
  • Detailed floor plans
  • Roof plan

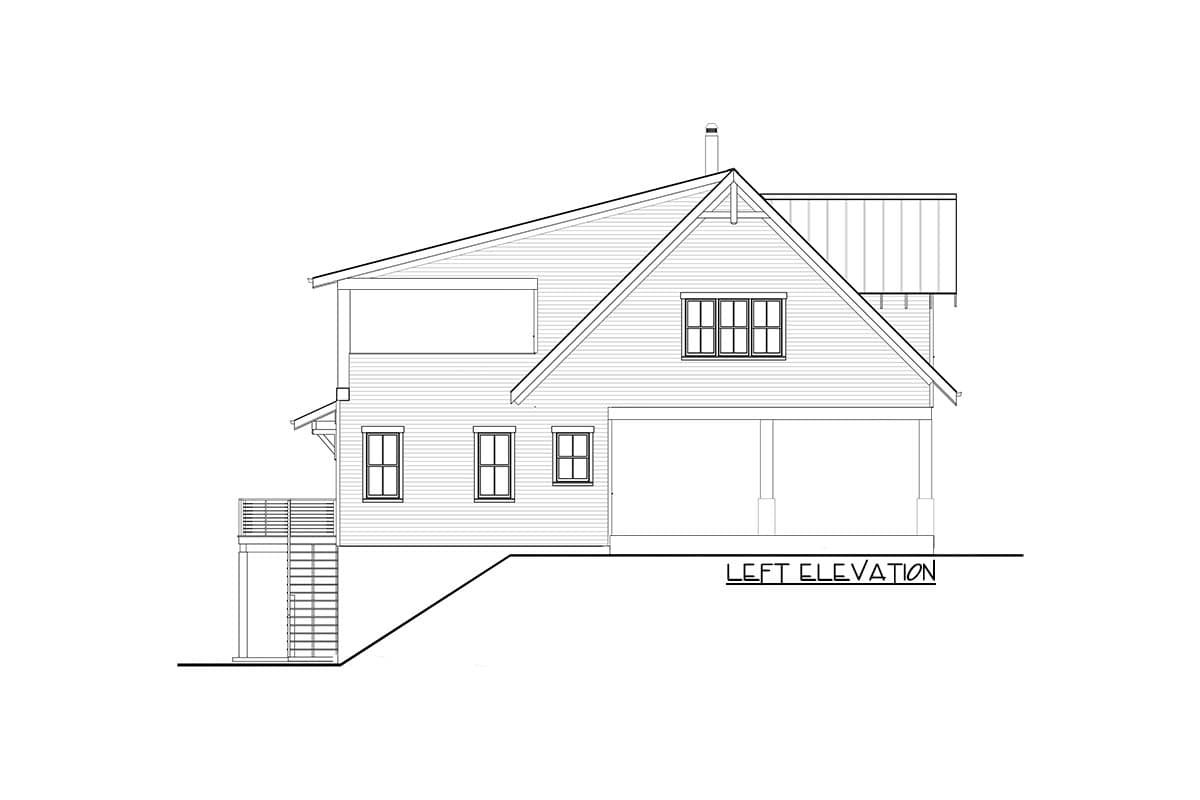

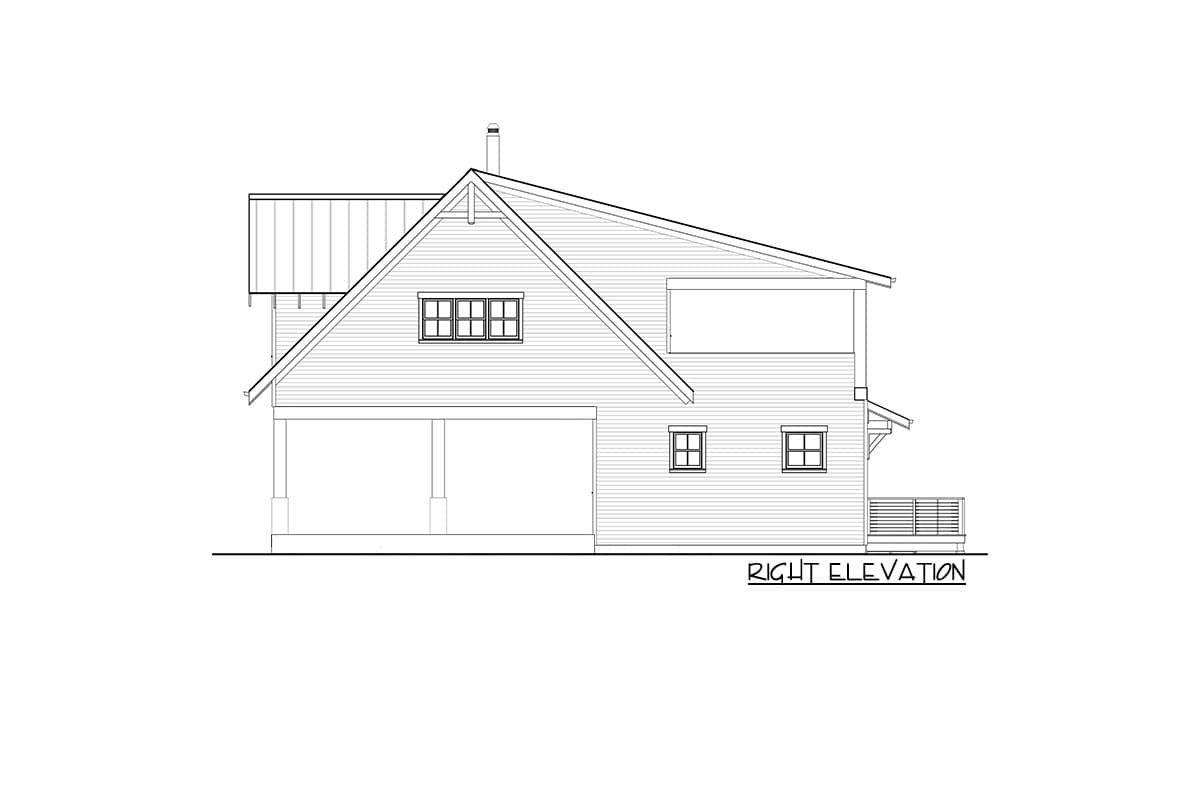

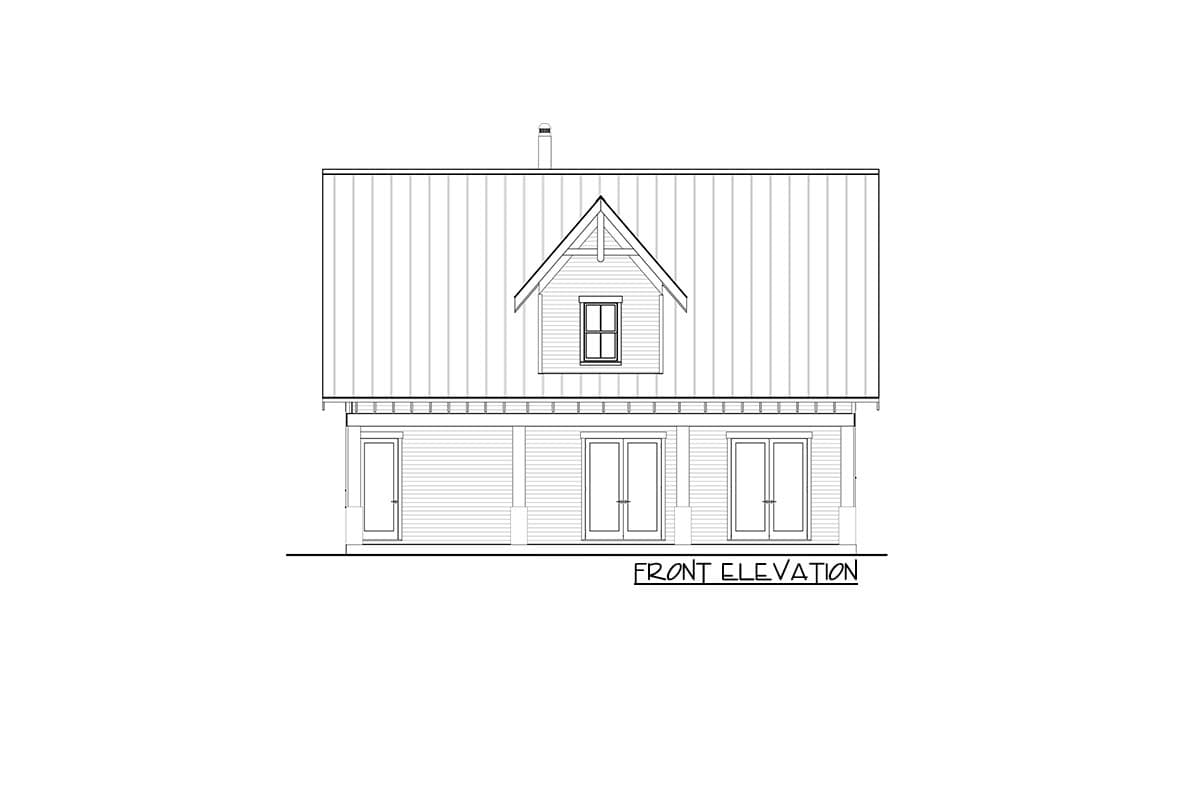

  • Elevations (all four sides)
  • Sections
  • 3D model views
  • Electrical plans
  • Framing details

What's Not Included

  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
