Plan 80961PM

1 Bedroom Apartment Above a 2-Car Garage - 683 Sq Ft Apartment - 870 Sq Ft Garage

Heated S.F.
683
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 80961PM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 80961PM

M-F 9am-5pm EST |

1-203-761-8500

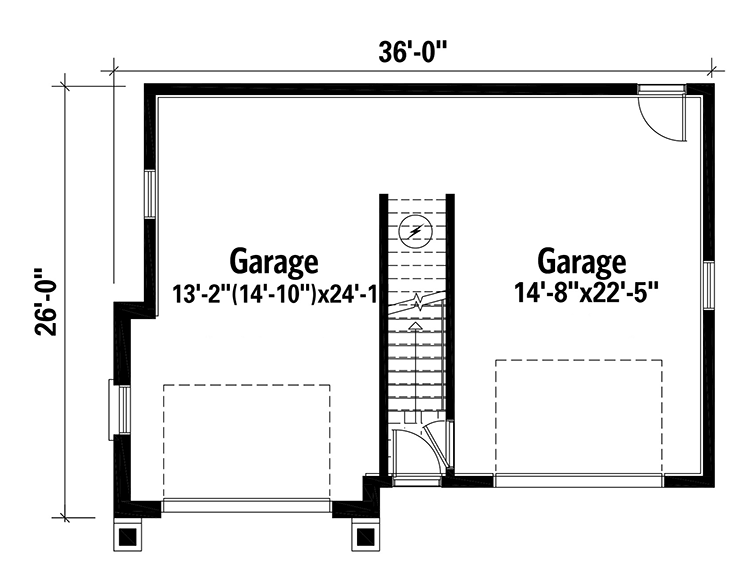

Main Level

Plan 80961PM: 1 Bedroom Apartment Above a 2-Car Garage - 683 Sq Ft Apartment - 870 Sq Ft Garage - Floor Plan - Main Level - Carriage

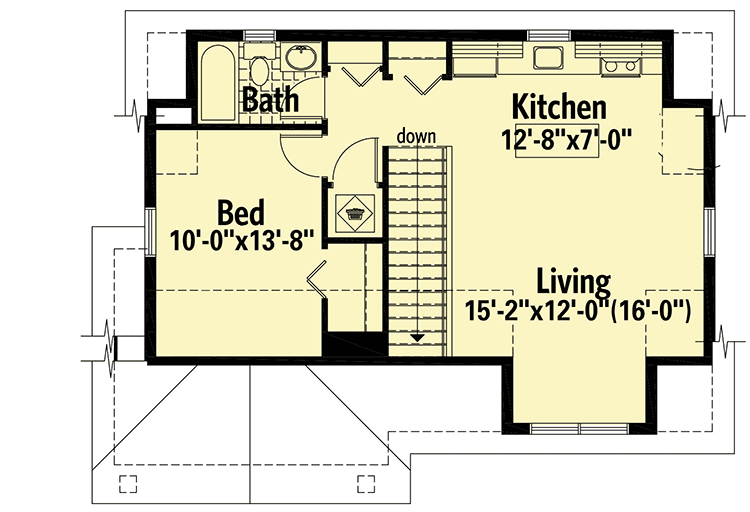

2nd Floor

Plan 80961PM: 1 Bedroom Apartment Above a 2-Car Garage - 683 Sq Ft Apartment - 870 Sq Ft Garage - Floor Plan - 2nd Floor - Carriage

Plan Details

  • This garage apartment plan features an adaptable style that would be a lovely addition to any property. Utilize the above apartment as an income property or in-law suite when family and friends visit.
  • Two garage bays are located on the main level, separated by the staircase that leads to the second level apartment.
  • Upstairs, the living room and kitchen are open to one another, making the space feel larger, and the kitchen includes a prep island to increase workspace.
  • A shed dormer window provides a cozy nook, while increasing access to natural light.
  • The bedroom features a walk-in closet and neighbors the full bath.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

683 sq. ft.

2nd Floor

683 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

26' 0"

Max Ridge Height

24' 10"

Garage

Type

Detached

Area

870 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 2"

Second Floor

8' 2"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Carriage

Special Features

Breakfast Nook

In-Law Suite

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Canadian House Plans

Square Footage Breakdown

Total Heated Area

683 sq. ft.

2nd Floor

683 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

26' 0"

Max Ridge Height

24' 10"

Garage

Type

Detached

Area

870 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 2"

Second Floor

8' 2"

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Carriage

Special Features

Breakfast Nook

In-Law Suite

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

ADU

Canadian House Plans
