Plan 430078LY
EXCLUSIVE
1-Story Contemporary Home Plan with In-Law Suite with Full Kitchen
Heated S.F.
3,663
Beds
4
Baths
3.5
Stories
1
Cars
3
What's Included
Plan Details
  • Stone and vertical siding adorn the exterior of this 1-story Contemporary home plan. Metal rain awnings and shed dormers complete the look.
  • In the center of this design, discover a large, open living space that freely flows onto the expansive rear patio.
  • The gourmet kitchen offers plenty of workspace, along with a walk-in pantry for buying in bulk.
  • The master bedroom is privately situated apart from the other bedrooms and enjoys a 5-fixture bathroom with a walk-in closet that connects to the laundry room. Bedrooms 2 and 3 share a Jack-and-Jill bath.
  • The in-law suite is connected by a covered breezeway and features a full kitchen, living area, and bedroom with a full bathroom; perfect for in-laws, a boomerang child, or income property.
What's Included
  • Cover sheet
  • Roof plan
  • Floor plan

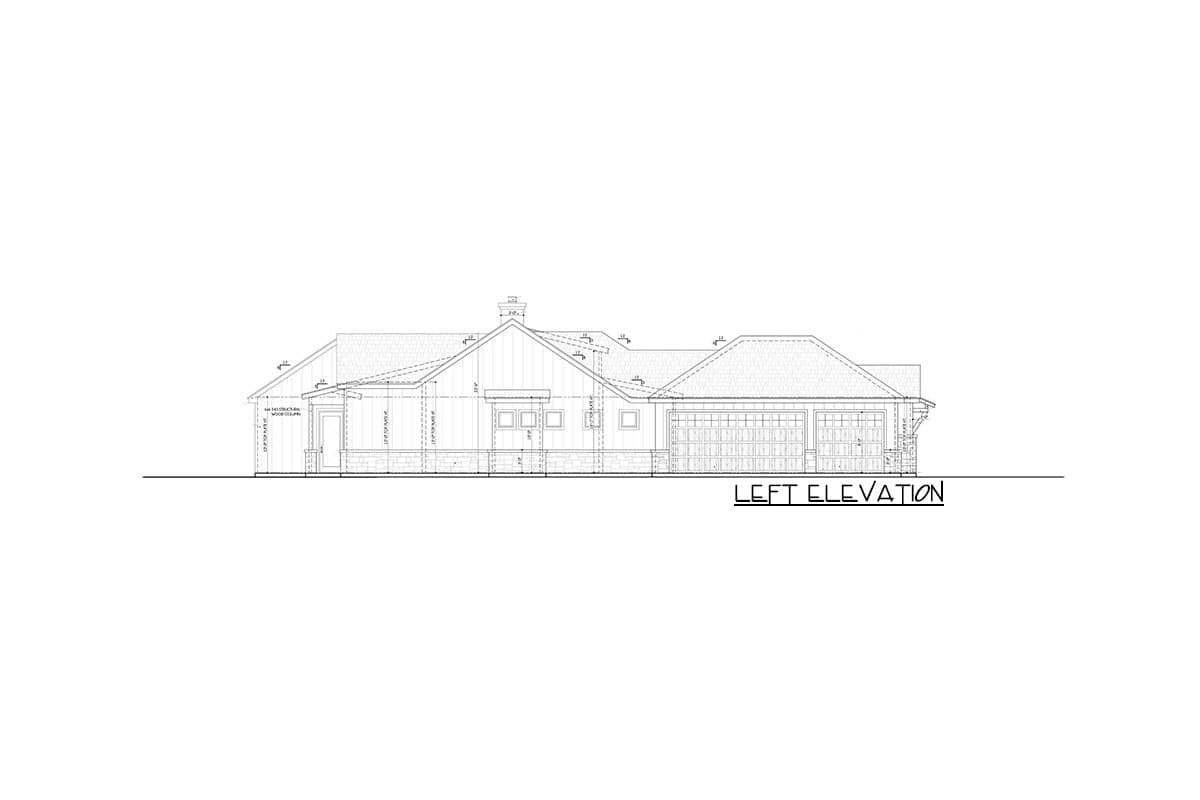

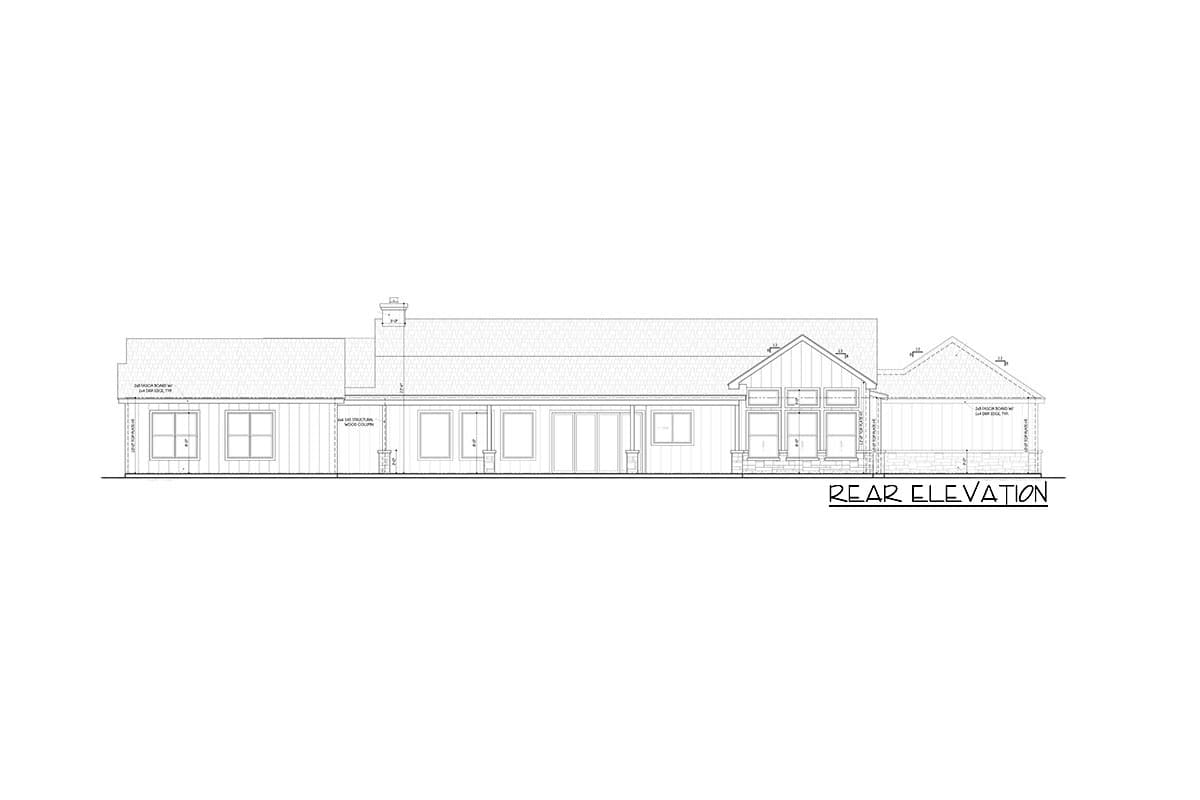

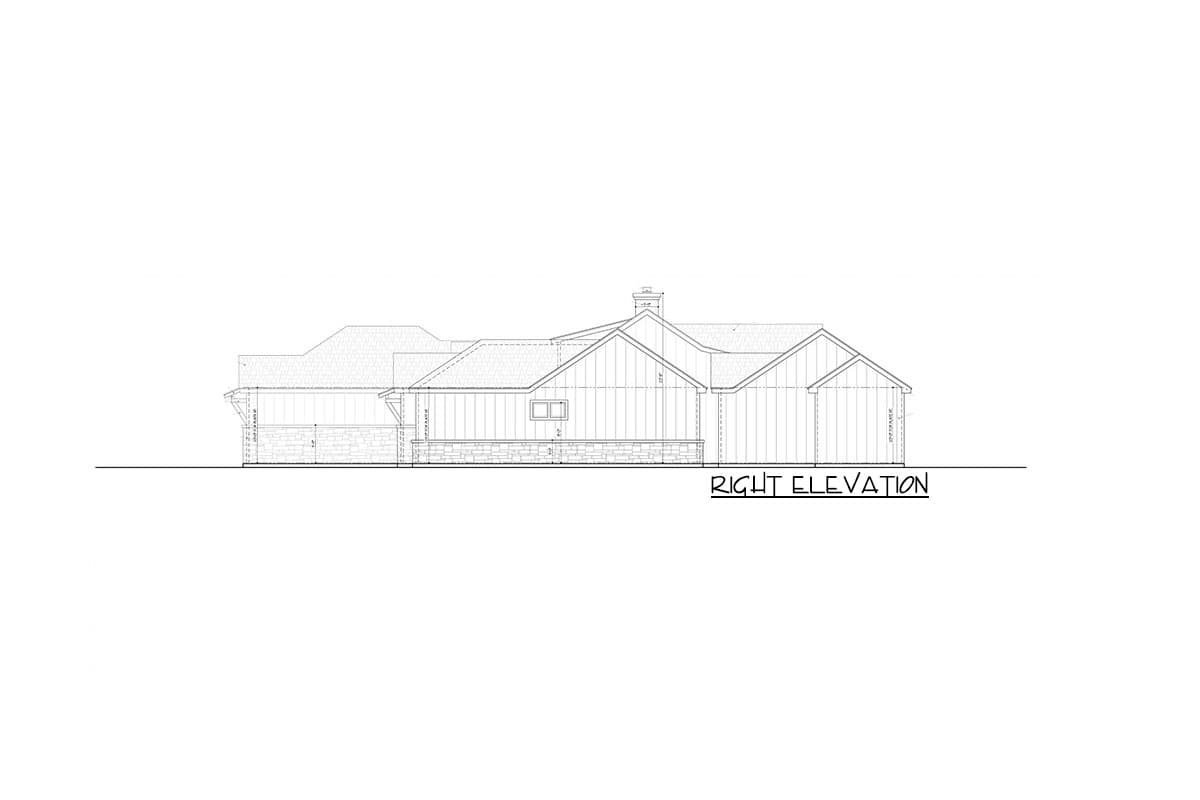

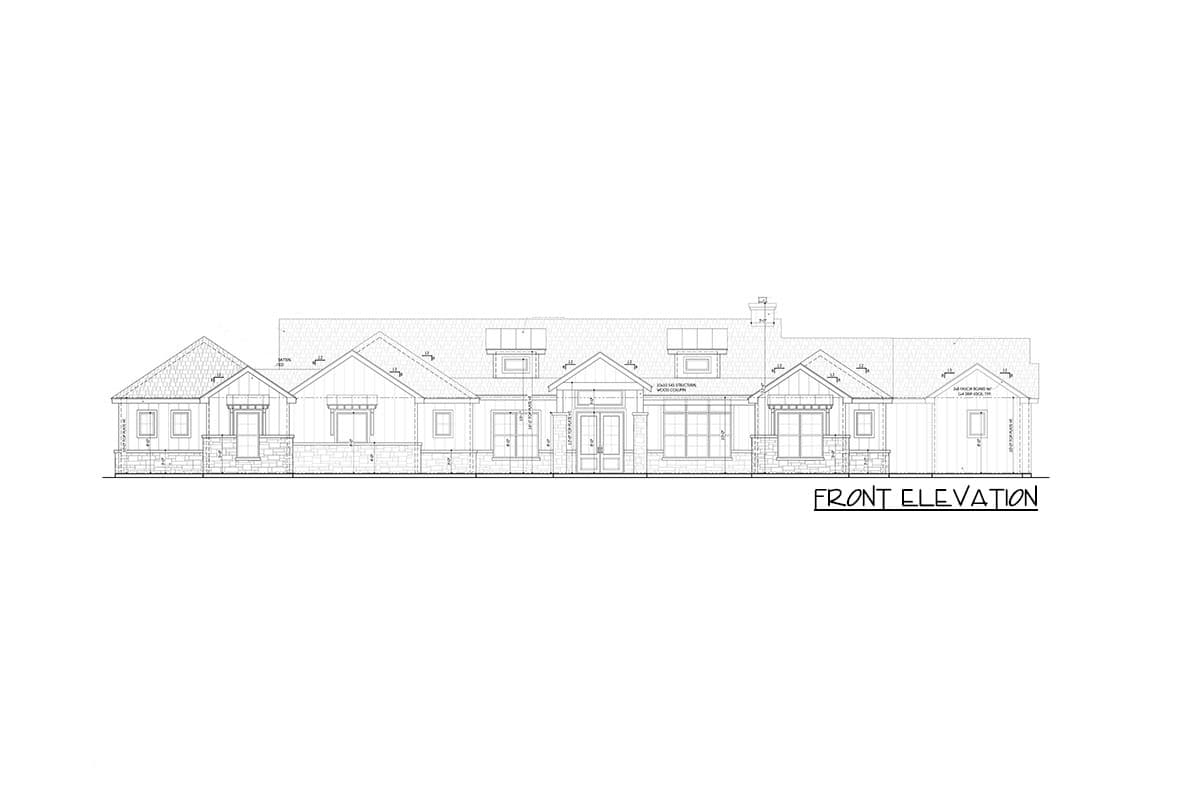

  • Exterior elevations
  • Typical wall sections
  • Ceiling treatment plans
  • Electrical floor plans
  • Interior elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Foundations are engineered locally based on soil samples which is why a “typical” foundation plan is not provided.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1-Story Contemporary Home Plan with In-Law Suite with Full Kitchen

  • 3,663

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

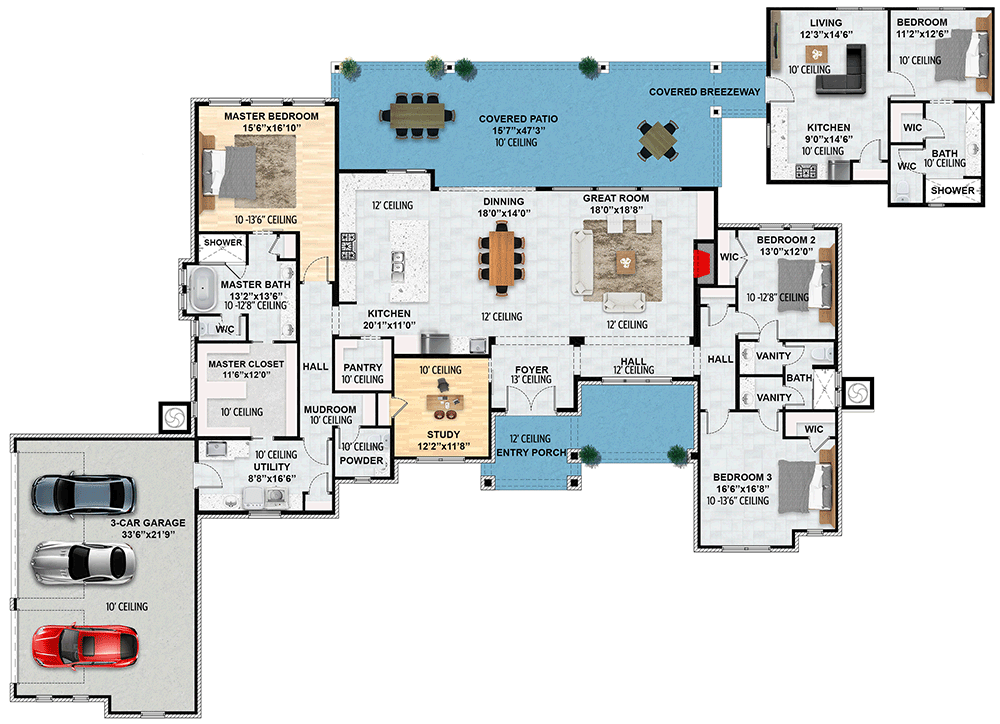

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,663 sq. ft.
  • 1st Floor: 3,026 sq. ft.

Dimensions

  • Width: 121' 8"
  • Depth: 87' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 796 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 3 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site
