Plan 720043DA 1-Story House Plan with an Open Floor Plan

2,880 3 2.5 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

1-Story House Plan with an Open Floor Plan

Plan 720043DA

  • 2,880

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Perfect for a large and open lot, this 1-story house plan is a sprawling 2,880 square feet of heated living space. An open floor plan with plenty of natural light decorates this 3-bedroom,  3-bathroom floor plan.
  • The kitchen island has a flush eating bar with a built-in wine refrigerator. There's a beverage bar as well located by the dining area. A large walk-in pantry with built-in shelving and counterspace gives you great storage.
  • A studio with built-in shelves can be used as a home office or as a place to pursue your hobbies.
  • The home's two bedrooms are separated from the master suite with the extra large great room and kitchen separating them. The large master walk-in closet gives you great storage.
  • An outdoor kitchen to the rear is a hallmark for entertaining, and with the covered patio is functional year round.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

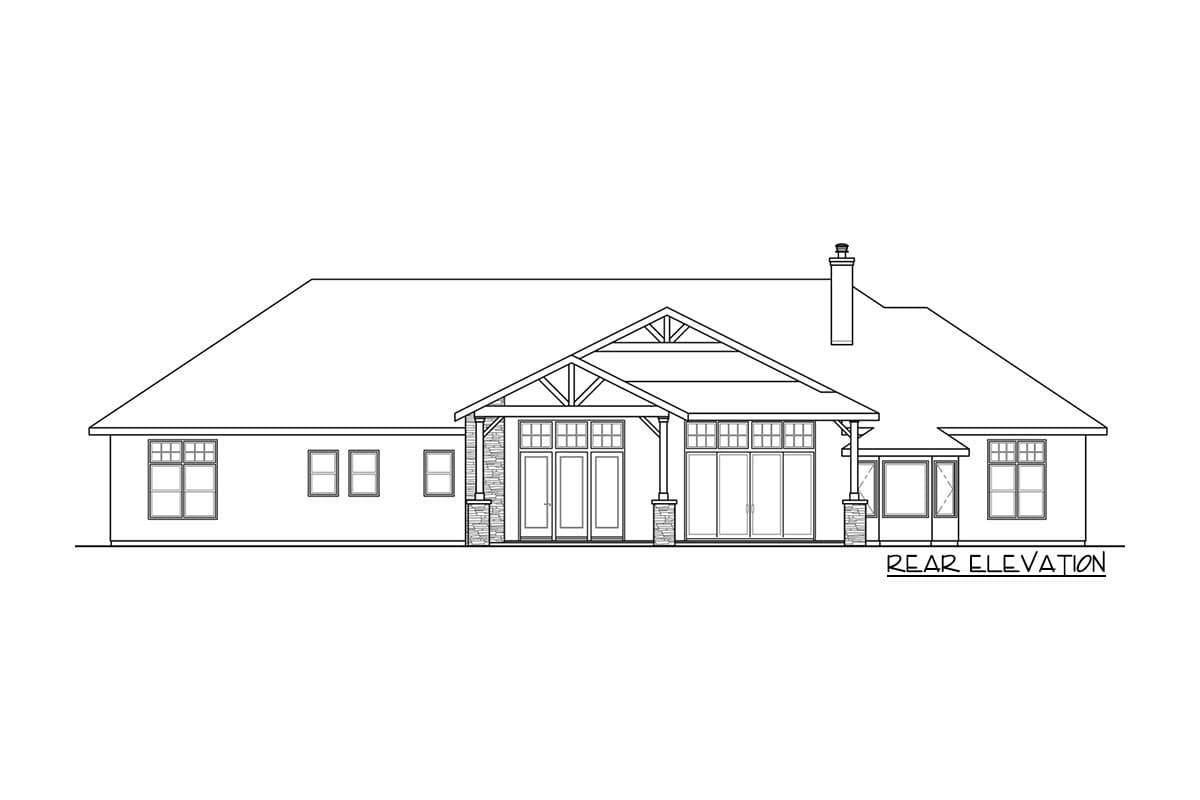

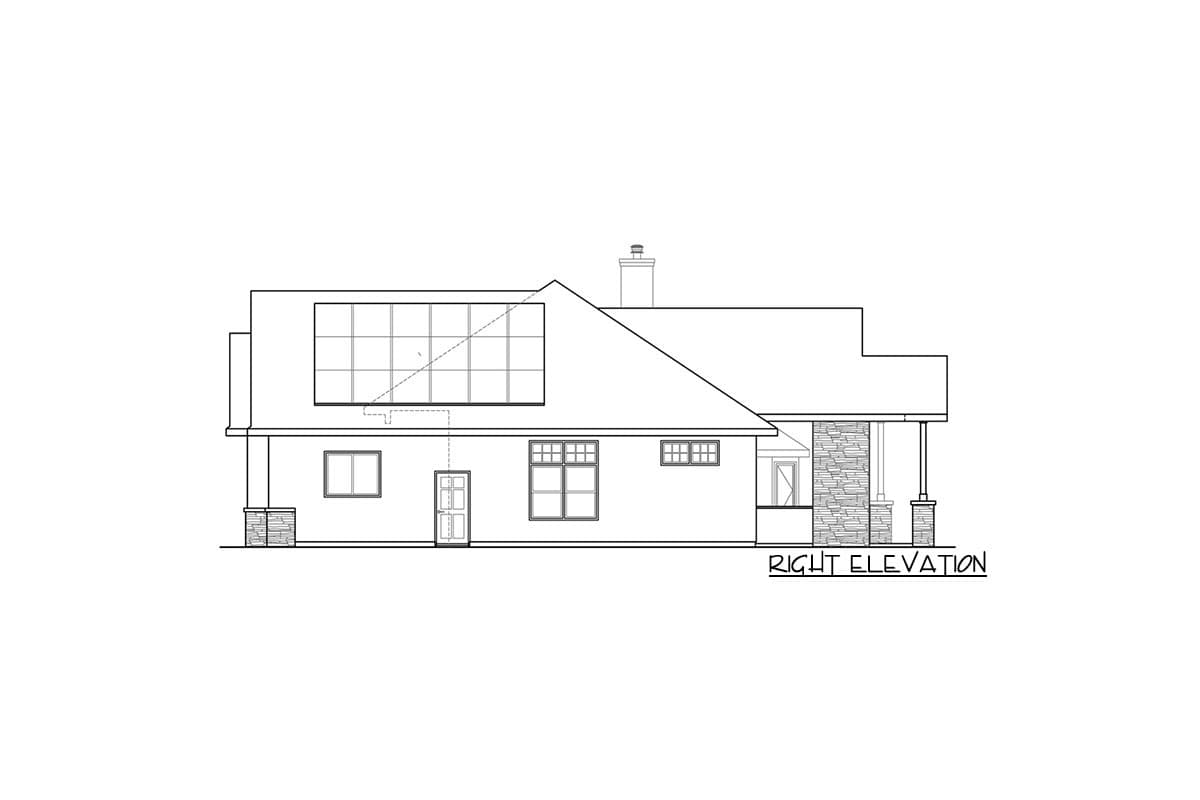

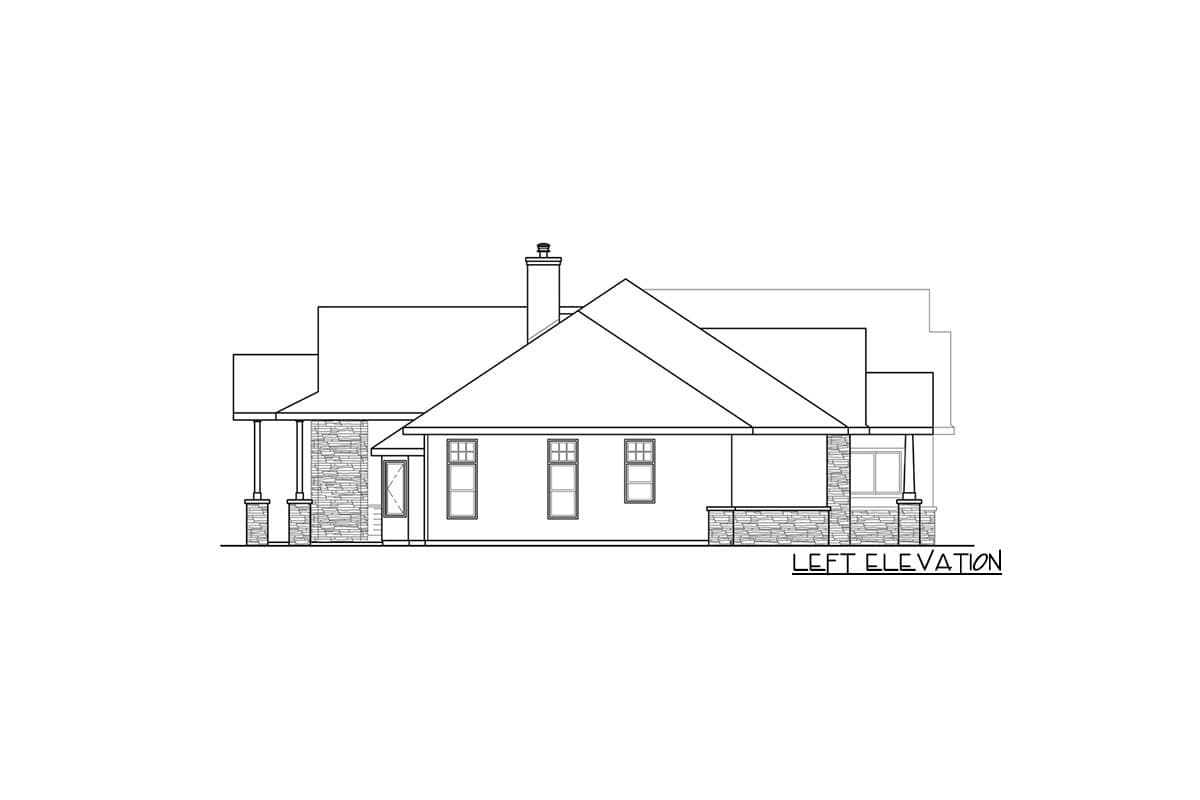

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

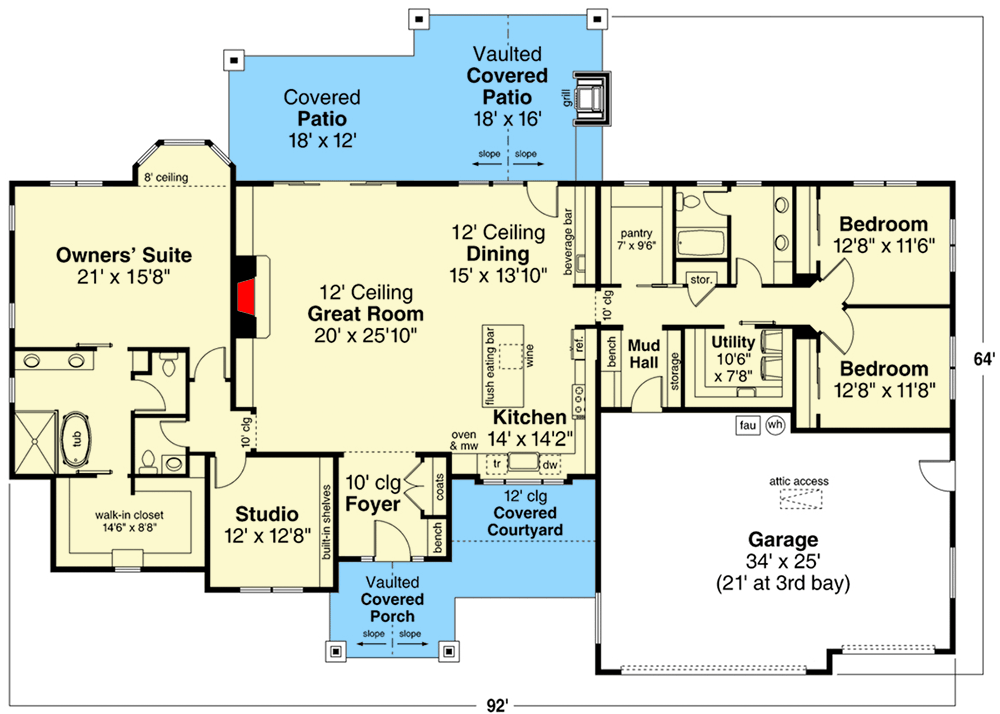

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

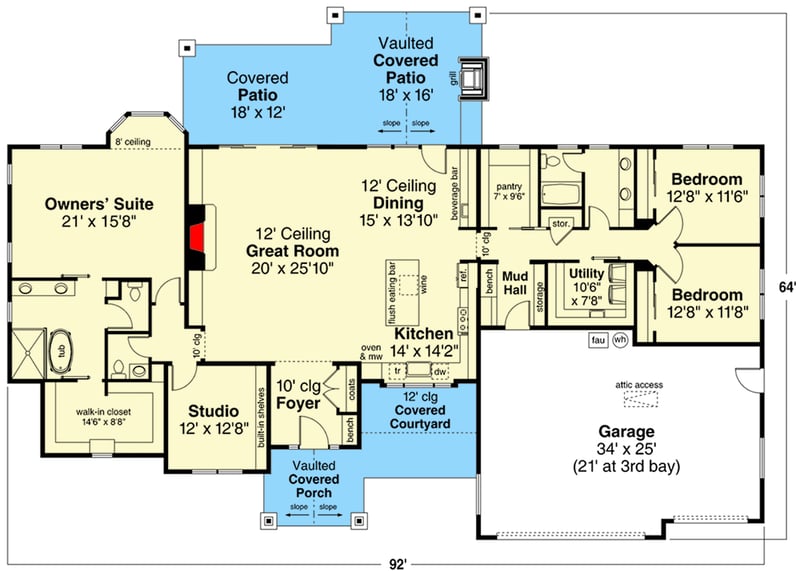

1-Story House Plan with an Open Floor Plan - 720043DA floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,880 sq. ft.
  • 1st Floor: 2,880 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 92' 0"
  • Depth: 64' 0"
  • Max ridge height: 25' 2"

Garage

  • Type: Attached
  • Area: 833 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

1-Story House Plan with an Open Floor Plan

  • 2,880

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $870
  • PDF Light $1,110
  • 5 Sets + PDF $1,353
  • PDF - Single-Build $2,165
  • CAD - Single-Build $2,345
  • CAD - Unlimited Build $2,595
  • View all purchase option online
