1032 Square Foot Urban Bungalow with 2 Bedrooms

Plan 801020PM

  • 1,032

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • With a sunken entrance and a side door, this contemporary bungalow house plan displays an attractive urban architecture. The house plan is 30 feet 10 inches wide by 36 feet deep and provides 1,032 square feet of heated living space.
  • With 9-foot high ceilings, the home features an open living and dining area, a kitchen with a lunch counter and a large pantry, a closet for the washer and dryer, and two bedrooms, including a master bedroom with a walk-in closet and a direct access to the family bathroom.

Plan sets include the following:

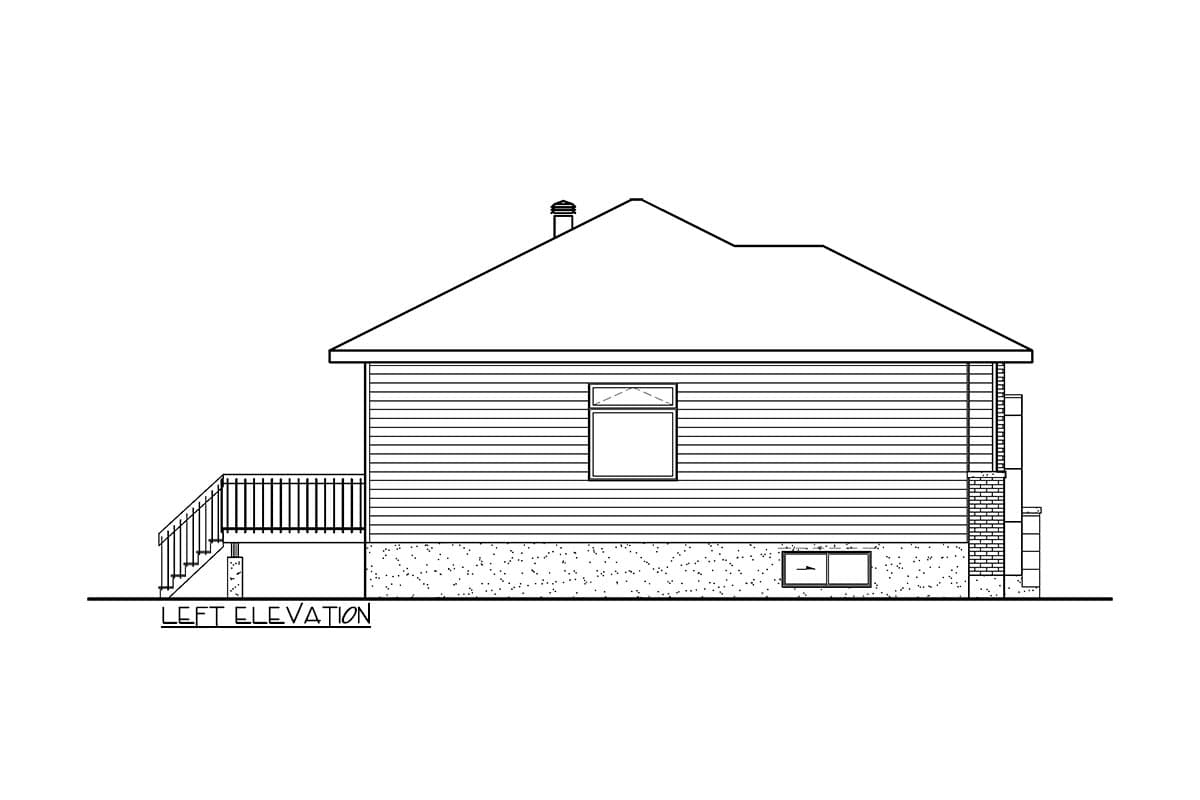

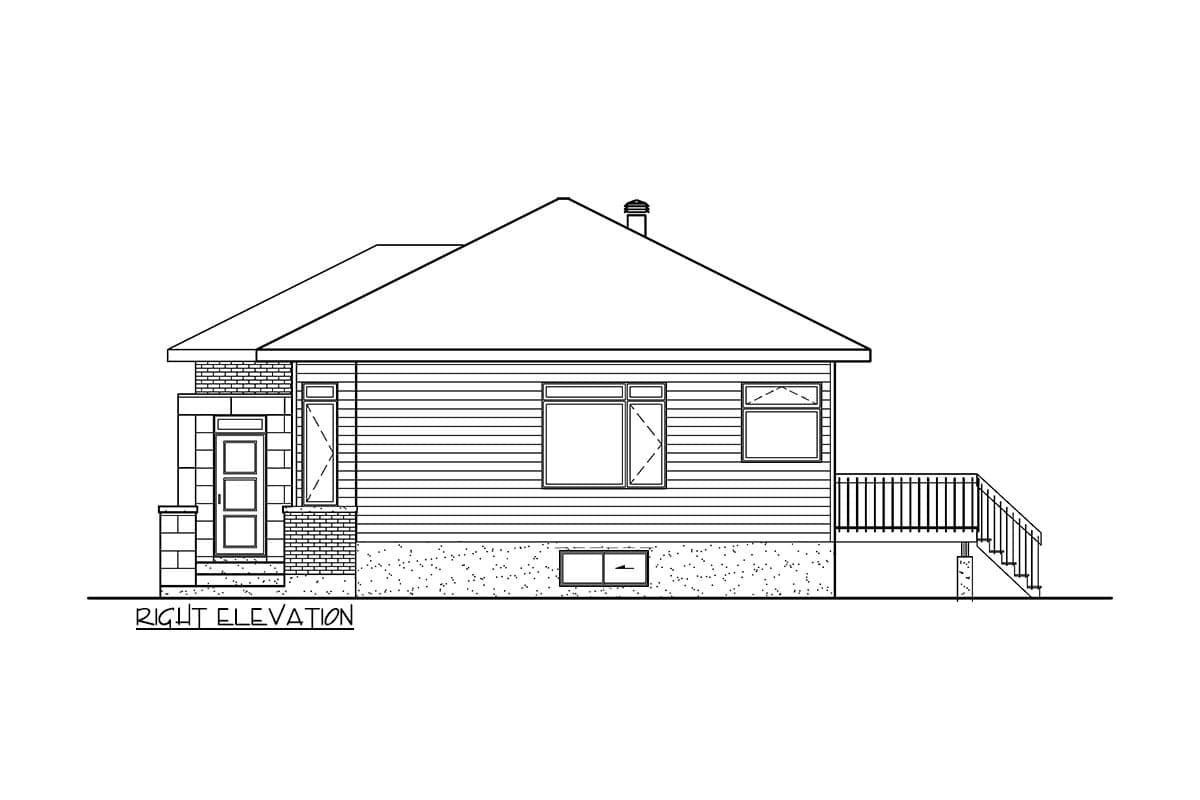

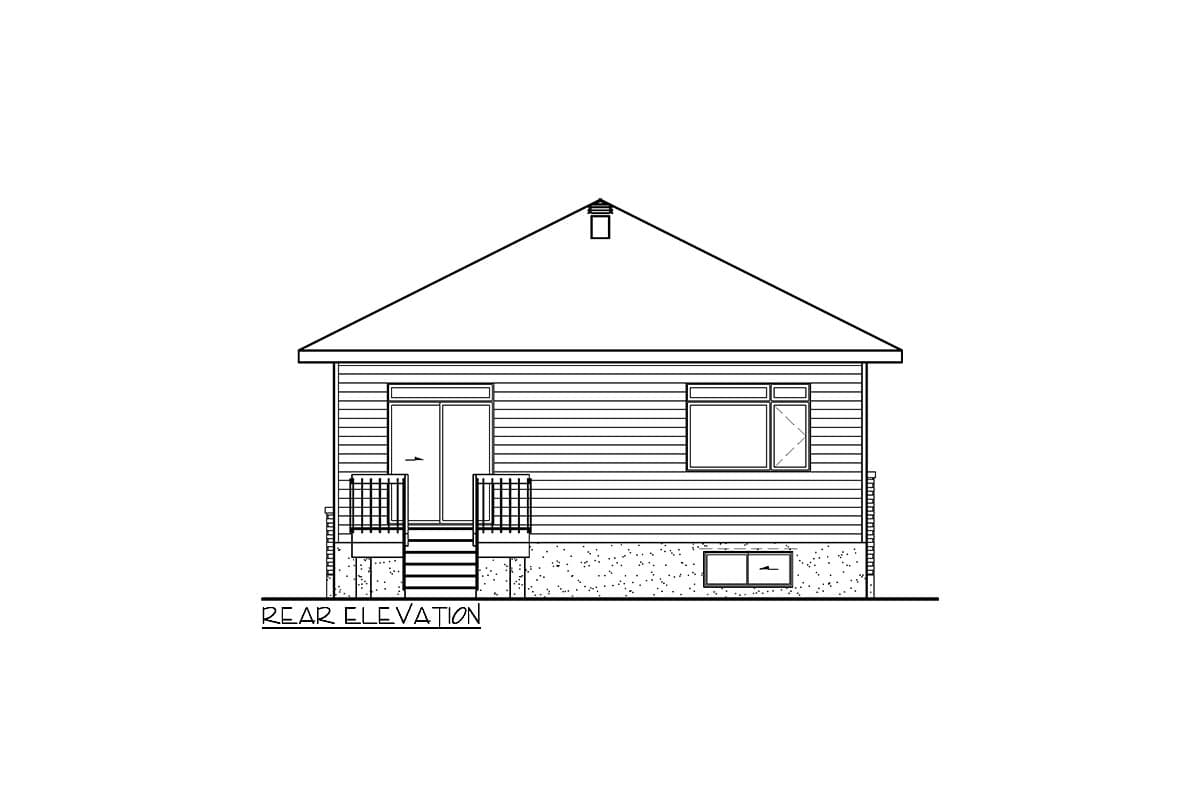

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

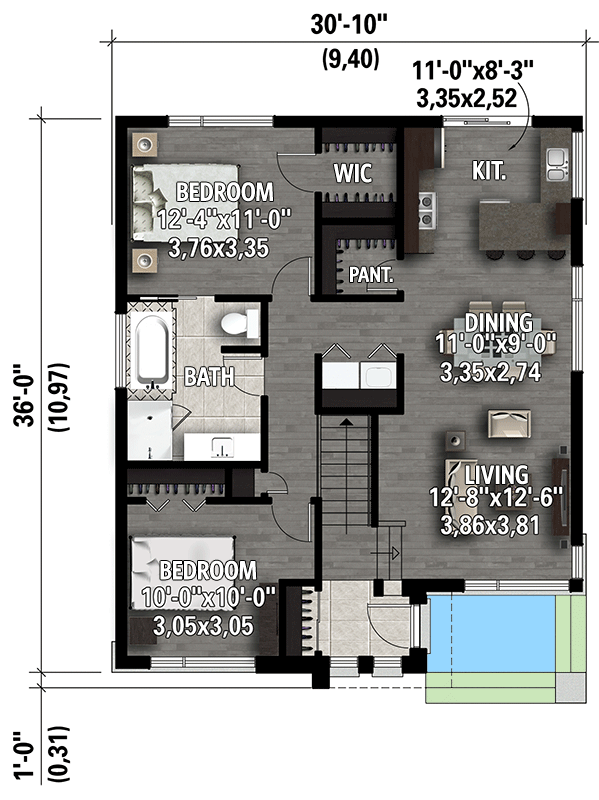

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
1032 Square Foot Urban Bungalow with 2 Bedrooms - 801020PM floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,032 sq. ft.
  • 1st Floor: 1,032 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 10"
  • Depth: 36' 0"
  • Max ridge height: 22' 6"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12

Architectural Style

Special features

Plan Collections

1032 Square Foot Urban Bungalow with 2 Bedrooms

  • 1,032

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $760
  • 5 Sets $805
  • 5 Sets + PDF $880
  • 5 Set + PDF + Materials List $950
  • CAD + PDF - Single-Build $1,780
  • View all purchase option online

About This Plan

  • With a sunken entrance and a side door, this contemporary bungalow house plan displays an attractive urban architecture. The house plan is 30 feet 10 inches wide by 36 feet deep and provides 1,032 square feet of heated living space.
  • With 9-foot high ceilings, the home features an open living and dining area, a kitchen with a lunch counter and a large pantry, a closet for the washer and dryer, and two bedrooms, including a master bedroom with a walk-in closet and a direct access to the family bathroom.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,032 sq. ft.
  • 1st Floor: 1,032 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 30' 10"
  • Depth: 36' 0"
  • Max ridge height: 22' 6"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
Plan 801020PM
View this and more for this plan by visiting www.architechtecturaldesigns.com/801020PM
|
Need Help? 800-854-7852
|
