1109 Square Foot Ranch House Plan with a Side Loading Drive-Under Garage

Plan 680124VR

  • 1,109

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • This traditional, 2-bedroom ranch house plan has a simple footprint and gives you 2 beds, 1 bath and 1,109 square feet of heated living space.
  • The inviting 6'-deep front porch spans the length of the home, and begs for company to enjoy the views. Step through the front door, and an open-concept floor plan greets you with a beautiful vaulted ceiling. The kitchen’s wrap-around counter offers seating for casual meals.
  • Down the hall, a two bedrooms share a full bath with laundry conveniently located steps away.
  • The lower level gives you 482 square feet of parking and storage plus 627 square feet of future space.
  • Related Plan: Get alternate versions with house plans 68559VR and 68529VR (both 1,000 sq. ft.),  680019VR (900 sq. ft.).

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

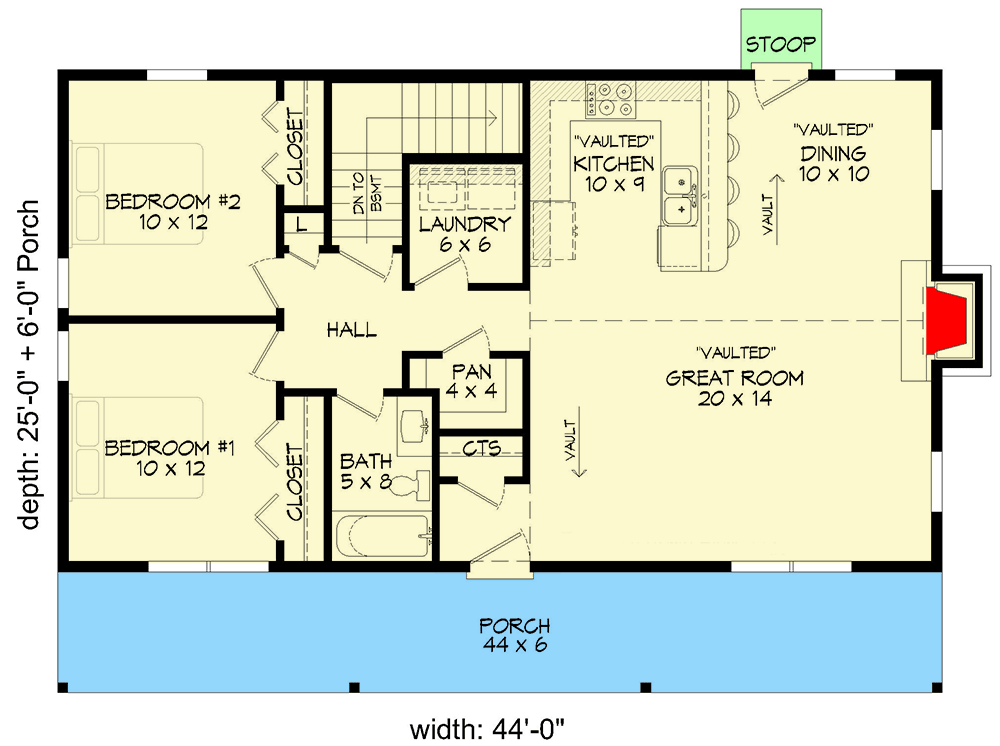

1109 Square Foot Ranch House Plan with a Side Loading Drive-Under Garage - 680124VR floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

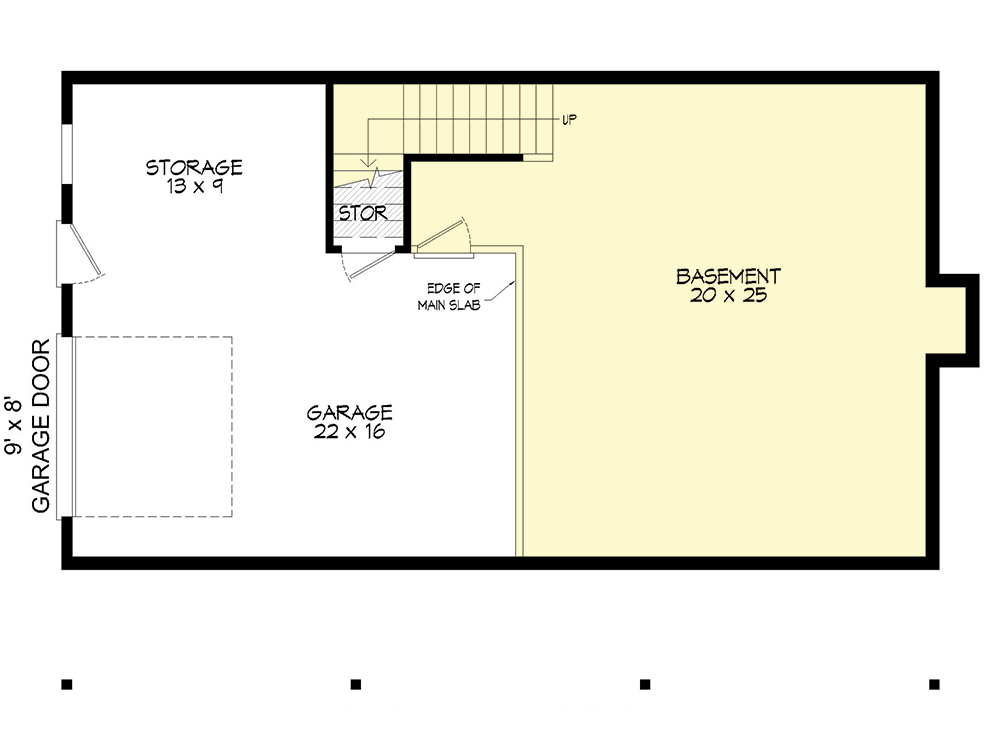

1109 Square Foot Ranch House Plan with a Side Loading Drive-Under Garage - 680124VR floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,109 sq. ft.
  • 1st Floor: 1,109 sq. ft.
  • Porch, Combined: 264 sq. ft.
  • Basement Unfinished: 482 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 31' 0"
  • Max ridge height: 15' 0"

Garage

  • Type: Drive Under, Attached
  • Area: 482 sq. ft.
  • Count: 1 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

1109 Square Foot Ranch House Plan with a Side Loading Drive-Under Garage

  • 1,109

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $975
  • 5 Sets $1,060
  • 5 Sets + PDF $1,183
  • CAD + PDF - Single-Build $1,425
  • View all purchase option online

About This Plan

  • This traditional, 2-bedroom ranch house plan has a simple footprint and gives you 2 beds, 1 bath and 1,109 square feet of heated living space.
  • The inviting 6'-deep front porch spans the length of the home, and begs for company to enjoy the views. Step through the front door, and an open-concept floor plan greets you with a beautiful vaulted ceiling. The kitchen’s wrap-around counter offers seating for casual meals.
  • Down the hall, a two bedrooms share a full bath with laundry conveniently located steps away.
  • The lower level gives you 482 square feet of parking and storage plus 627 square feet of future space.
  • Related Plan: Get alternate versions with house plans 68559VR and 68529VR (both 1,000 sq. ft.),  680019VR (900 sq. ft.).

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,109 sq. ft.
  • 1st Floor: 1,109 sq. ft.
  • Porch, Combined: 264 sq. ft.
  • Basement Unfinished: 482 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 44' 0"
  • Depth: 31' 0"
  • Max ridge height: 15' 0"

Garage

  • Type: Drive Under, Attached
  • Area: 482 sq. ft.
  • Count: 1 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
Plan 680124VR
View this and more for this plan by visiting www.architechtecturaldesigns.com/680124VR
|
Need Help? 800-854-7852
|
