Plan 135210GRA

1200 Square Foot 2-Car Detached Garage Plan with Storage Loft Above

Heated S.F.
698
Beds
0
Baths
0
Stories
1
Cars
2

Floor Plan

Plan 135210GRA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 135210GRA

M-F 9am-5pm EST |

1-203-761-8500

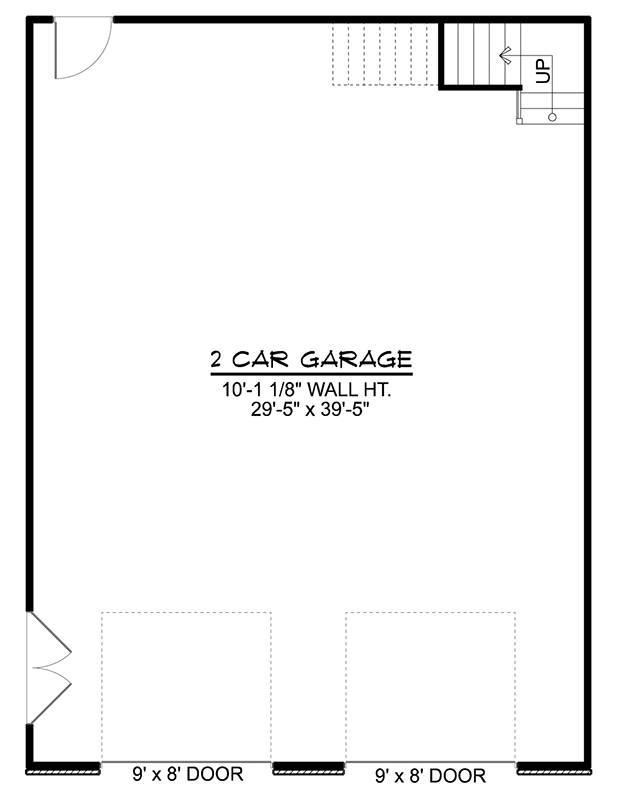

Main Level

Plan 135210GRA: 1200 Square Foot 2-Car Detached Garage Plan with Storage Loft Above - Floor Plan - Main Level - Country, Craftsman, Traditional

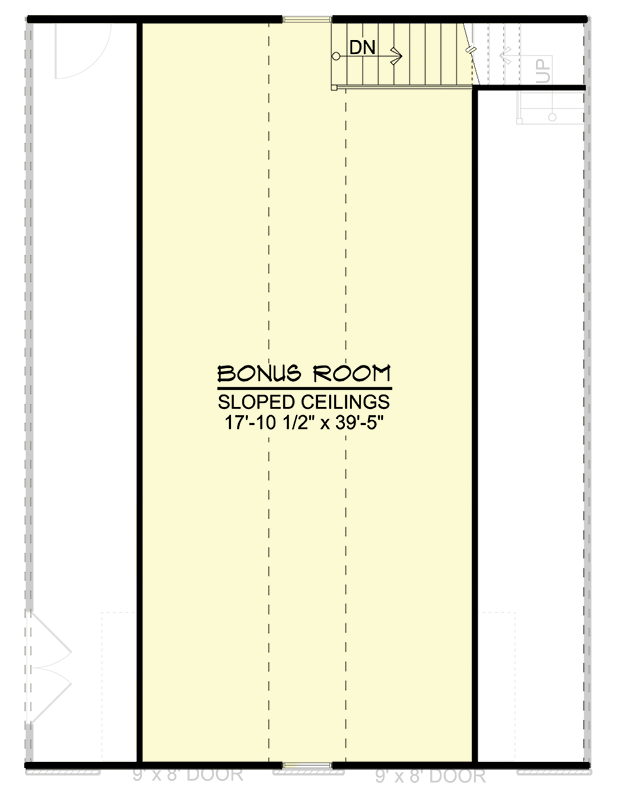

2nd Floor

Plan 135210GRA: 1200 Square Foot 2-Car Detached Garage Plan with Storage Loft Above - Floor Plan - 2nd Floor - Country, Craftsman, Traditional

Plan Details

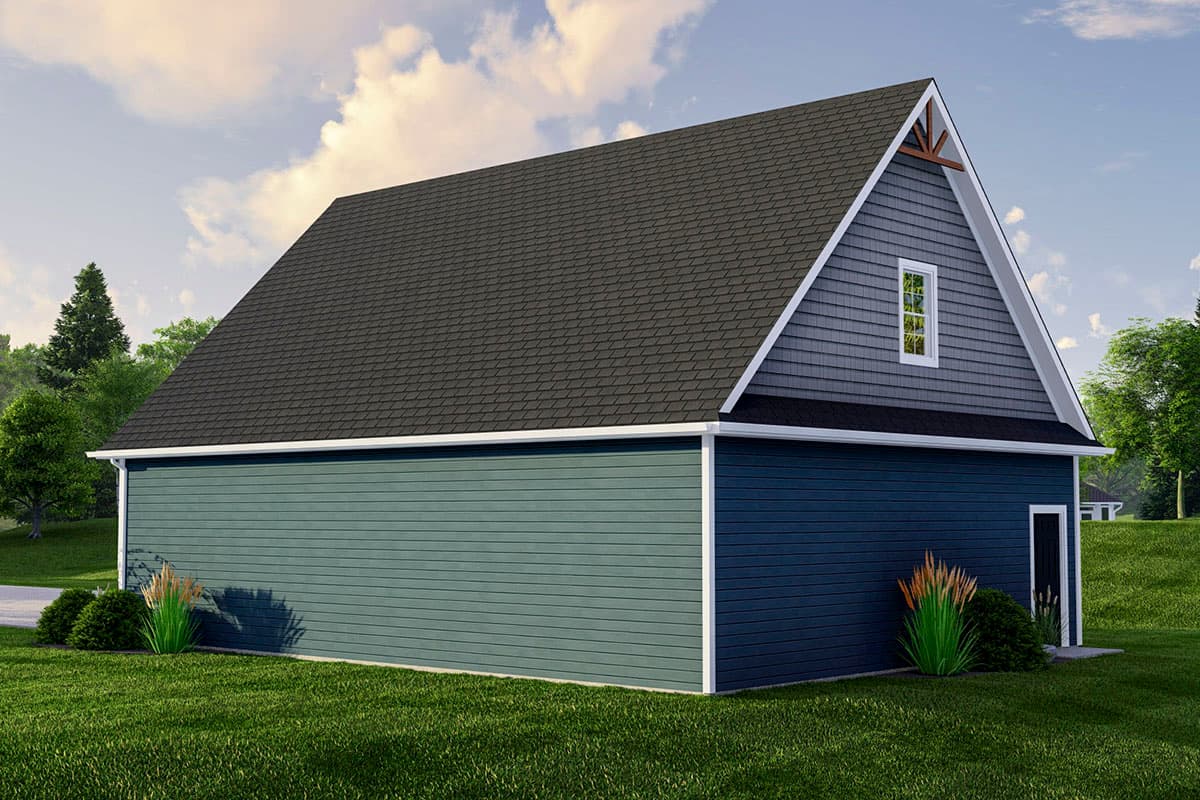

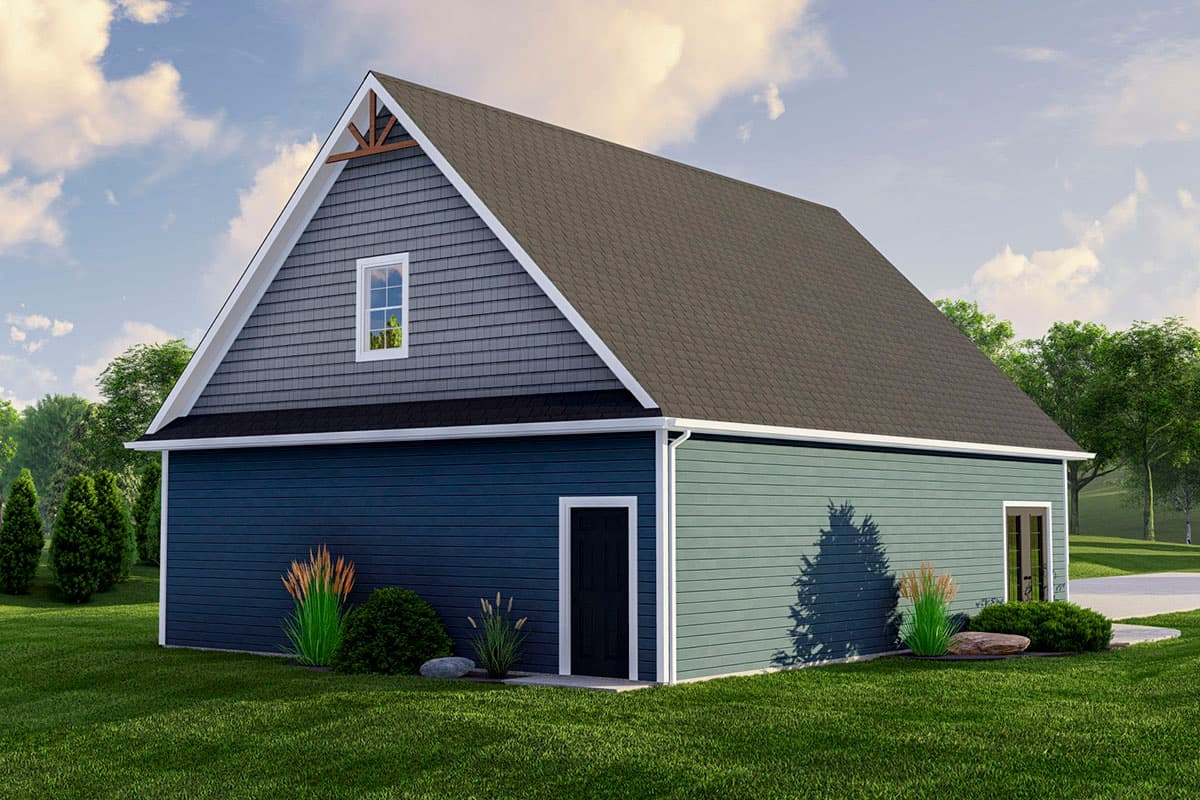

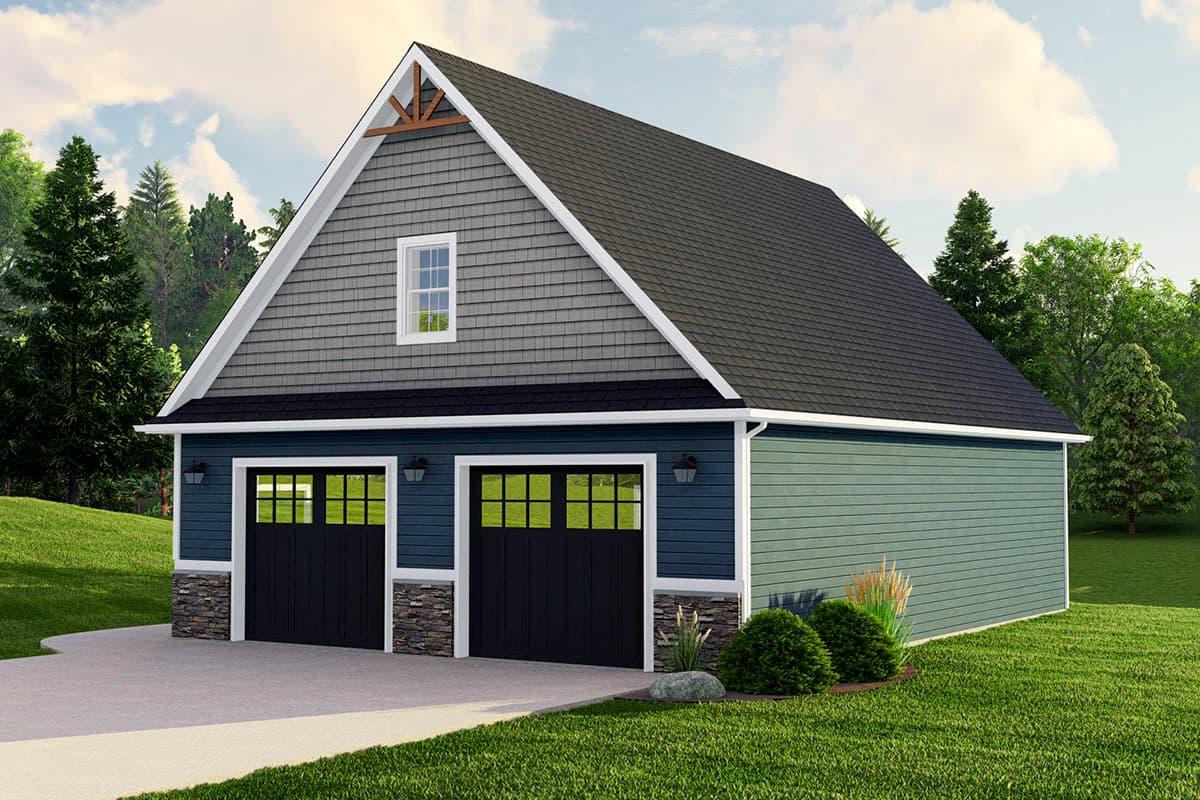

  • This 2-car detached garage plan is perfect as an addition to a home that lacks adequate parking. It has an exterior with a blend of clapboard, stone and shingles and a decorative bracket at the gable peak.
  • Two garage doors - one per bay - a man door in back and a French doors on the left get you and your vehicles inside.
  • Stairs in the back go up to bonus space. Use this as a play or game room, a work-from-home space a he- or she-shed or just for storage.
  • Related Plans: Add a shed roofed porch on the side with garage plans 135019GRA and 135189GRA.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

698 sq. ft.

2nd Floor

698 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

40' 0"

Max Ridge Height

26' 3"

Garage

Type

Detached

Area

1200 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Traditional

Special Features

Finished Bonus Room

Loft

Square Footage Breakdown

Total Heated Area

698 sq. ft.

2nd Floor

698 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

30' 0"

Depth

40' 0"

Max Ridge Height

26' 3"

Garage

Type

Detached

Area

1200 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Country

Craftsman

Traditional

Special Features

Finished Bonus Room

Loft
