Plan 55164BR

1200 Square Foot Contemporary 3-bed Home Plan

Heated S.F.
1,202
Beds
3
Baths
2
Stories
1

Floor Plan

Plan 55164BR

Main Level
Main Level

Plan 55164BR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

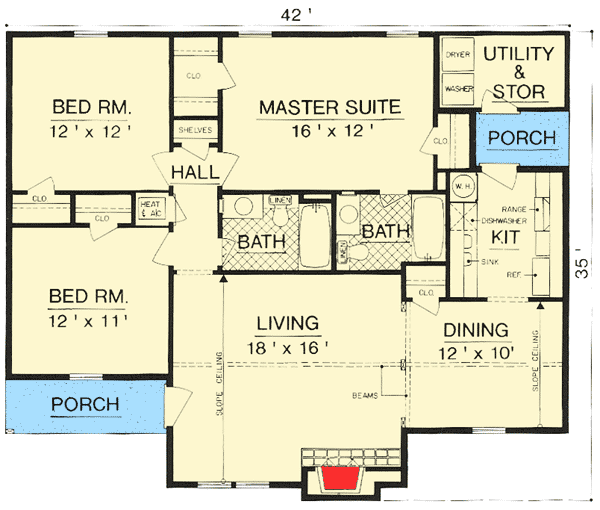

Plan 55164BR: 1200 Square Foot Contemporary 3-bed Home Plan - Floor Plan - Main Level - Contemporary, Ranch

Plan Details

  • This 1200 square foot contemporary 3-bed home plan has a vaulted open concept area in front, connecting the living room with fireplace to the dining room which share a vaulted ceiling.
  • A galley kitchen has access to the outdoors by a side porch and opens to the dining room.
  • Bedrooms line the left side of the home while the master suite with ensuite bath is in back.

What's Included

  • Cover Sheet  - with general information
  • Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation Footing - details
  • Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

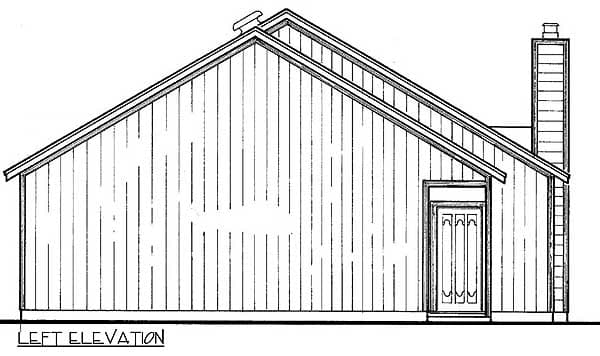

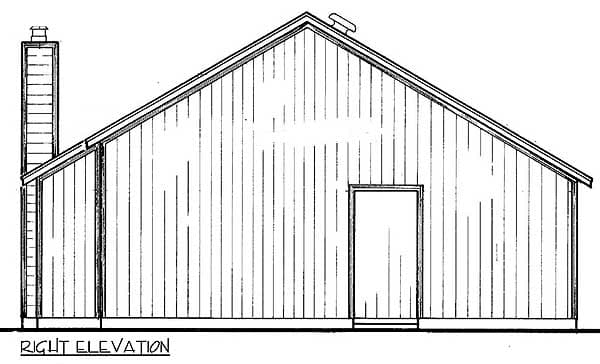

  • Elevations - which call out exterior finish materials
  • Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction Details - schedules for the interior finish, exterior finish, electrical schedule
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,202 sq. ft.

1st Floor

1,202 sq. ft.

Porch, Combined

76 sq. ft.

Storage

60 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

34' 0"

Max Ridge Height

18' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Contemporary

Ranch

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,202 sq. ft.

1st Floor

1,202 sq. ft.

Porch, Combined

76 sq. ft.

Storage

60 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

42' 0"

Depth

34' 0"

Max Ridge Height

18' 0"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Contemporary

Ranch

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor
