1248 Square Foot Contemporary Lake House Plan with Walkout Lower Level

Plan 680142VR

  • 1,248

    Heated s.f.

  • 1

    Beds

  • 2

    Baths

  • 1

    Stories

  • The sloping roof and oversized windows on this contemporary lake (or mountain) house plan allow you to take advantage of downslope views, while the attached balcony invites you to take in the fresh air.
  • On the main level, discover an open floor plan, combining the living room and eat-in kitchen. A collapsible wall of windows opens to the balcony for outdoor living. The ceiling goes from 7' in the bedroom to 12'2" in the open living area.
  • The bedroom is separated from the bath by a pocket door. There's laundry, a shower and a walk-in closet.
  • Spiral stairs take you to the walkout lower level with a full bath.
  • Related Plan: Replace the lower level with parking with house plan 68939VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

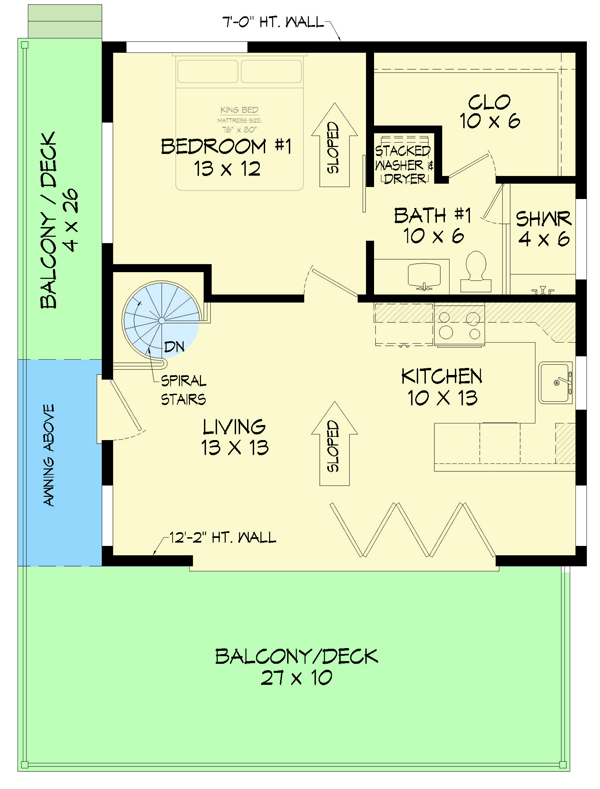

1248 Square Foot Contemporary Lake House Plan with Walkout Lower Level - 680142VR floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

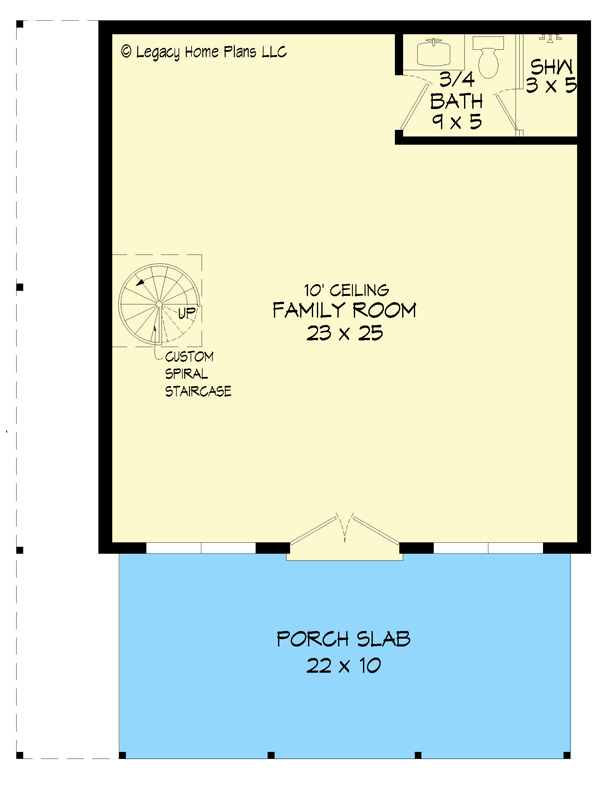

1248 Square Foot Contemporary Lake House Plan with Walkout Lower Level - 680142VR floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,248 sq. ft.
  • Lower Level: 624 sq. ft.
  • 1st Floor: 624 sq. ft.
  • Porch, Front: 220 sq. ft.
  • Balcony/Deck: 374 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Slab, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 36' 0"
  • Max ridge height: 14' 0"

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0"

Roof Details

  • Primary Pitch: 2.5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

1248 Square Foot Contemporary Lake House Plan with Walkout Lower Level

  • 1,248

    Heated s.f.

  • 1

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $975
  • 5 Sets $1,060
  • 5 Sets + PDF $1,183
  • CAD + PDF - Single-Build $1,425
  • View all purchase option online

About This Plan

  • The sloping roof and oversized windows on this contemporary lake (or mountain) house plan allow you to take advantage of downslope views, while the attached balcony invites you to take in the fresh air.
  • On the main level, discover an open floor plan, combining the living room and eat-in kitchen. A collapsible wall of windows opens to the balcony for outdoor living. The ceiling goes from 7' in the bedroom to 12'2" in the open living area.
  • The bedroom is separated from the bath by a pocket door. There's laundry, a shower and a walk-in closet.
  • Spiral stairs take you to the walkout lower level with a full bath.
  • Related Plan: Replace the lower level with parking with house plan 68939VR.
