1320 Square Foot Barn with Loft Above

Plan 680079VR

  • 0

    Heated s.f.

  • 2

    Stories

  • 4

    Cars

  • This barn with loft measures 44' by 30' and gives you 1,320 square feet of enclosed space on the main level.
  • Barn doors are on the front (20' by 8' opening) and the left (12' by 10' opening) giving you multiple access points for your larger equipment. A pair of man doors on the back and one on the right get you in on foot.
  • Upstairs, the vaulted loft gives you 947 square feet of usable space.
  • Related Plans: Get other versions with a 36' by 30' footprint with 68581VR and 68766VR. Get other sized versions with 68687VR (36' by 36'), 68601VR (40' by30'), 68462VR (36' by 24') and 68899VR (30' by 36').

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

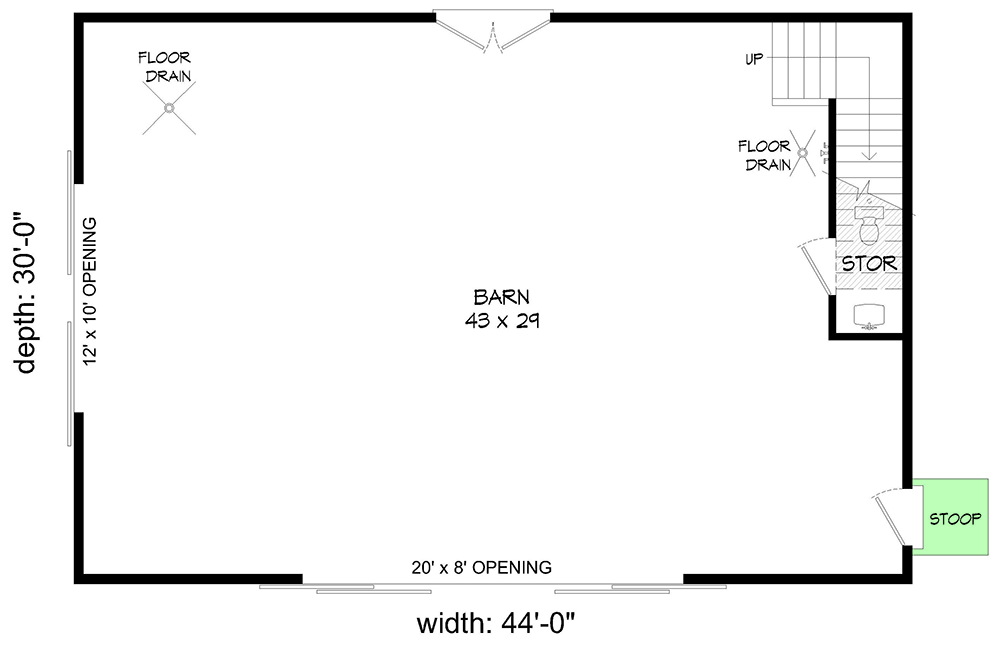

1320 Square Foot Barn with Loft Above - 680079VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

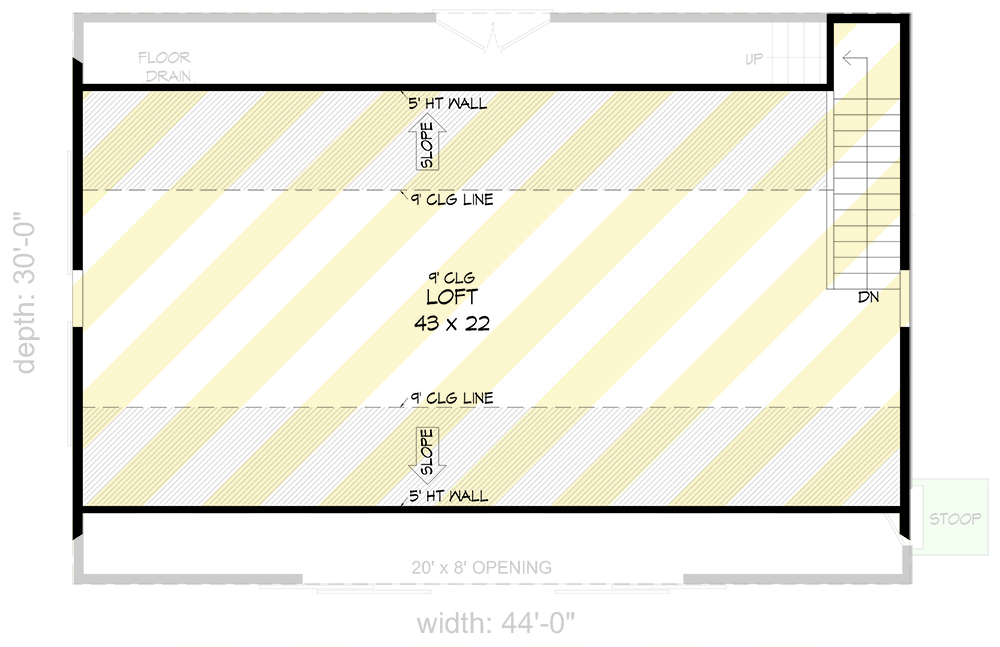

1320 Square Foot Barn with Loft Above - 680079VR floor plan - 2nd Floor

Architectural Style

Special features

1320 Square Foot Barn with Loft Above

  • 0

    Heated s.f.

  • Beds

  • 0

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.
  • Loft: 947 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 30' 0"
  • Max ridge height: 26' 6"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Garage

  • Type: Detached
  • Area: 1320 sq. ft.
  • Count: 4 Cars

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
