Expanded Barn-Style Garage With Loft

Plan 68601VR

  • 984

    Heated s.f.

  • 2

    Stories

  • 2

    Cars

  • This barn-style garage plan has large barn doors with window panes that provide natural light within.
  • A wide opening on the front elevation allows this structure to serve many functions.
  • Upstairs, discover a spacious loft for added flexibility.
  • Related Plans: Get alternate versions with garage plans 68462VR (36' by 24'), 68690VR (36' by 36'), 68687VR68581VR (36' by 30'),  68766VR (36' by 48'), 68899VR (30' by 36') and 680079VR 30' by 44').

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

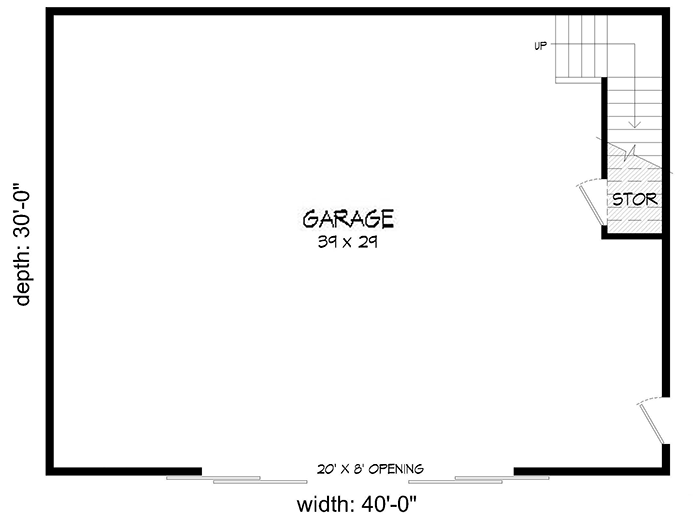

Expanded Barn-Style Garage With Loft - 68601VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

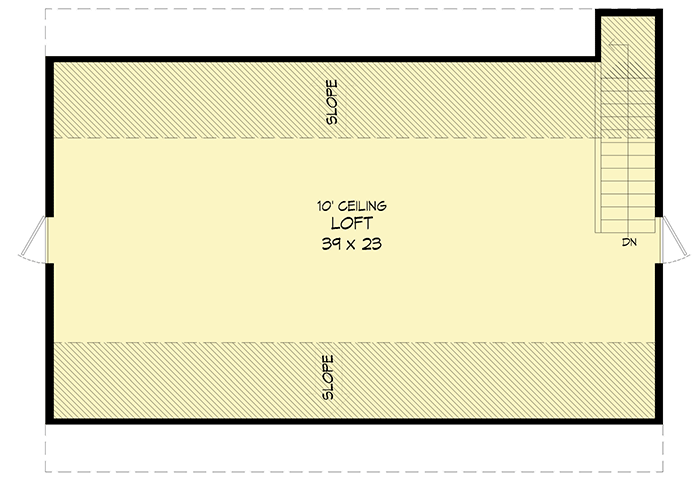

Expanded Barn-Style Garage With Loft - 68601VR floor plan - 2nd Floor

Architectural Style

Special features

Expanded Barn-Style Garage With Loft

  • 984

    Heated s.f.

  • Beds

  • 0

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 984 sq. ft.
  • 2nd Floor: 984 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 30' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Garage

  • Type: Detached
  • Area: 1120 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
