Plan 421511CHD

15-Foot-Wide Townhome Plan with 1-Car Alley-Access Garage

Heated S.F.
1,324
Beds
2
Baths
2.5
Stories
2
Cars
1

Floor Plan

Plan 421511CHD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 421511CHD

M-F 9am-5pm EST |

1-203-761-8500

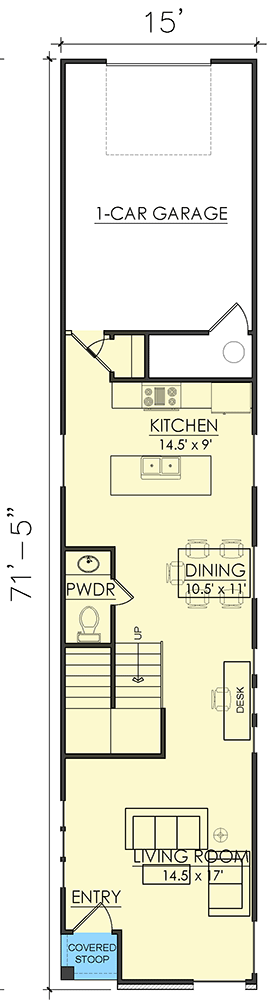

Main Level

Plan 421511CHD: 15-Foot-Wide Townhome Plan with 1-Car Alley-Access Garage - Floor Plan - Main Level - Contemporary, European, Northwest, Transitional

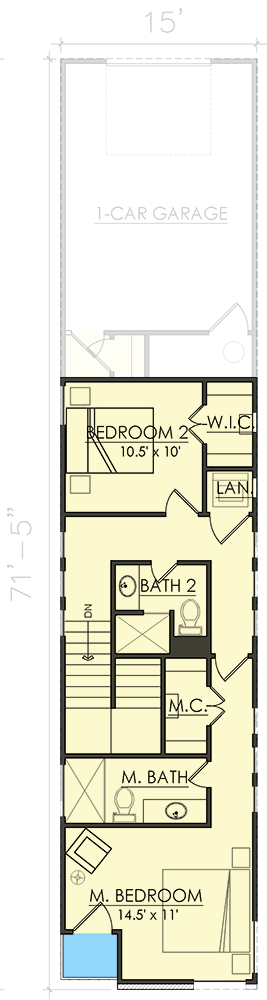

2nd Floor

Plan 421511CHD: 15-Foot-Wide Townhome Plan with 1-Car Alley-Access Garage - Floor Plan - 2nd Floor - Contemporary, European, Northwest, Transitional

Plan Details

  • This 15'-wide house plan is great for your narrow lot. It gives you 2 beds and 2.5 baths and 1,324 square feet of heated living plus a 1-car gar alley-access garage.
  • The main floor is open concept with the living room flowing seamlessly to the dining room and kitchen. A desk area located by the stairs gives you a space to keep the home organized.
  • A powder room is located by the stairs.
  • Upstairs, the master suite with walk-in closet located in front and Bed 2 is in back with a stackable washer/dryer in a hall closet.
  • An external staircase runs in back of the rear-facing 2-car detached garage and takes you to the apartment, perfect for us as a rental, an ADU, in-law or nanny space.

What's Included

  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,324 sq. ft.

1st Floor

710 sq. ft.

2nd Floor

614 sq. ft.

Porch, Front

15 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

15' 0"

Depth

71' 5"

Garage

Type

Attached

Area

343 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

1 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Contemporary

European

Northwest

Transitional

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Attached Apartments

Square Footage Breakdown

Total Heated Area

1,324 sq. ft.

1st Floor

710 sq. ft.

2nd Floor

614 sq. ft.

Porch, Front

15 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

15' 0"

Depth

71' 5"

Garage

Type

Attached

Area

343 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

1 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Contemporary

European

Northwest

Transitional

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Attached Apartments
