1541 Square Foot 3-Bed Southern Cottage with L-Shaped Front Porch

Plan 521022TTL

  • 1,541

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • The brick-clad base and front porch add to the immense curb appeal offered by this 3-bedroom Southern Cottage home plan.
  • The wraparound porch invites you inside where an open living area connects with the dining space and kitchen.
  • French doors on the back of the dining room take you to a 13'4" by 9'4" covered back porch, a great place to eat al fresco or to catch some fresh air.
  • Three bedrooms line the left side of the plan, including the master bedroom that features a 4-fixture bathroom, a walk-in closet and direct access to the laundry room.

  • Cover sheet
  • Foundation plan
  • Floor plan

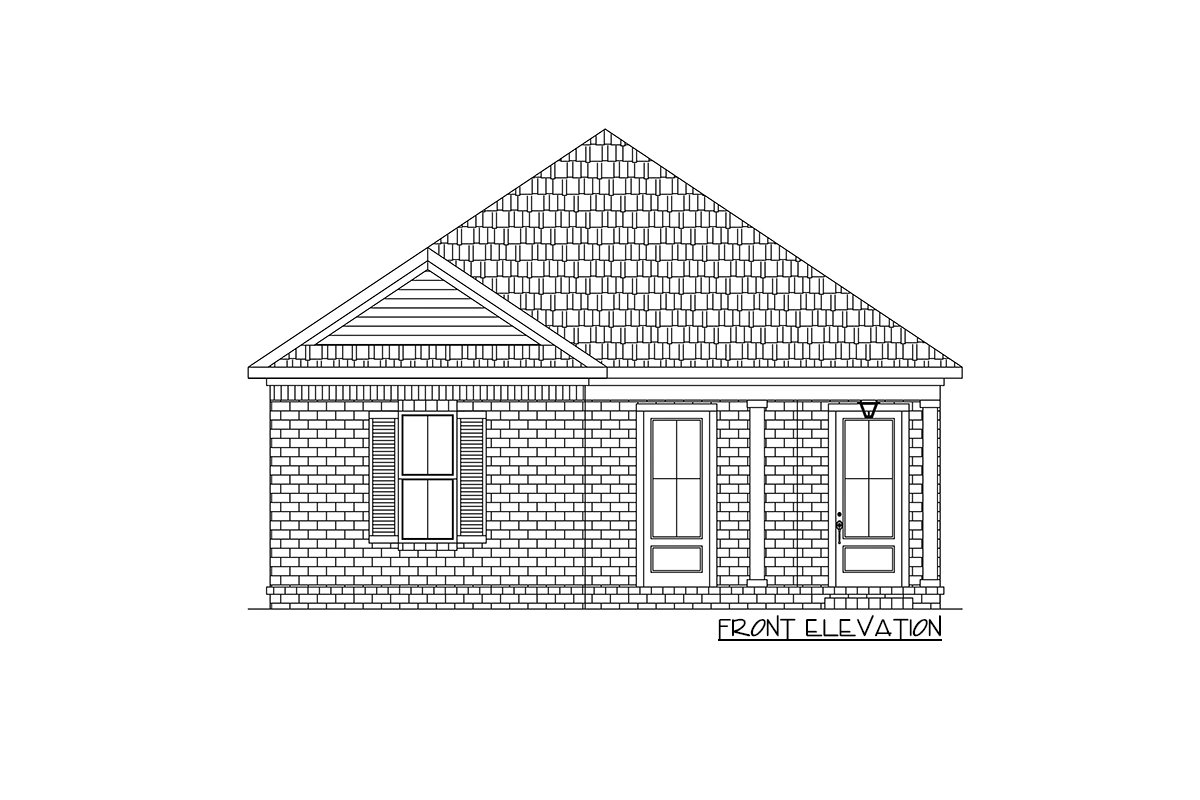

  • Front, side and rear elevations
  • Electrical plan
  • Details
  • Building cross section
  • Wall section
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

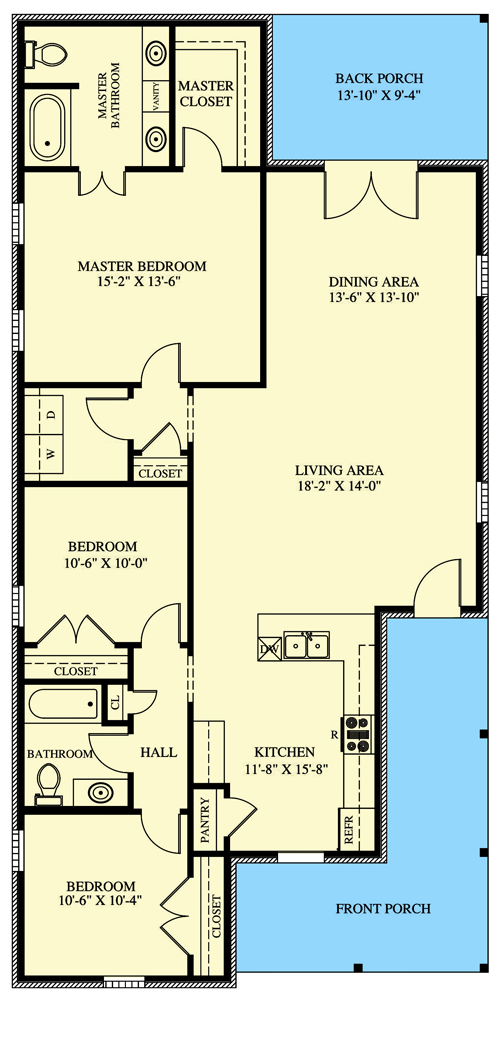

1541 Square Foot 3-Bed Southern Cottage with L-Shaped Front Porch - 521022TTL floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,541 sq. ft.
  • 1st Floor: 1,541 sq. ft.
  • Porch, Combined: 345 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 30' 6"
  • Depth: 62' 4"
  • Max ridge height: 21' 10"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

Plan Collections

1541 Square Foot 3-Bed Southern Cottage with L-Shaped Front Porch

  • 1,541

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,250
  • 5 Sets + PDF $1,500
  • PDF - Unlimited Build $1,950
  • CAD + PDF - Unlimited Build $2,250
  • View all purchase option online

About This Plan

  • The brick-clad base and front porch add to the immense curb appeal offered by this 3-bedroom Southern Cottage home plan.
  • The wraparound porch invites you inside where an open living area connects with the dining space and kitchen.
  • French doors on the back of the dining room take you to a 13'4" by 9'4" covered back porch, a great place to eat al fresco or to catch some fresh air.
  • Three bedrooms line the left side of the plan, including the master bedroom that features a 4-fixture bathroom, a walk-in closet and direct access to the laundry room.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,541 sq. ft.
  • 1st Floor: 1,541 sq. ft.
  • Porch, Combined: 345 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 30' 6"
  • Depth: 62' 4"
  • Max ridge height: 21' 10"

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss
