1550 Square Foot Split Bedroom One-Story House Plan

Heated S.F.
1,547
Beds
3
Baths
2
Stories
1
Cars
2

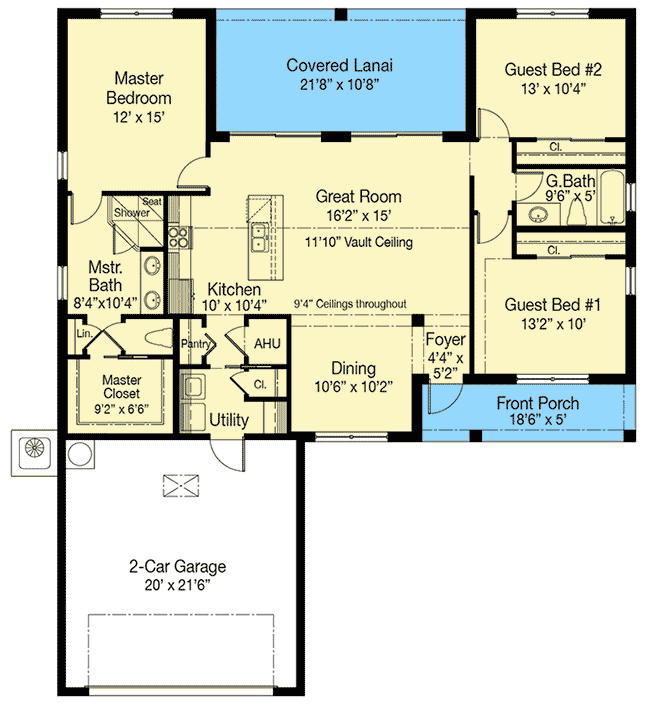

Floor Plan

Plan 33229ZRX

Main Level
Main Level

Plan 33229ZRX

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 33229ZRX: 1550 Square Foot Split Bedroom One-Story House Plan - Floor Plan - Main Level - Ranch, Southern, Vacation

Plan Details

  • This split bedroom house plan is classic and understated. Step inside from the modest front porch lined with square square columns into the foyer and you see the wide open great room with its 11’10” vaulted ceiling. Two sets of sliding glass doors open up the living space to the covered lanai. This is perfect for outdoor entertaining. Plenty of room for alfresco dining and perfect for adding a pool.
  • The kitchen provides all the amenities, including an island for quick meals and food prep. A pantry is close at hand, next to the utility room. The dining room is sequestered off the foyer and defined by a single column with beams.
  • The entrance to the master suite is set back near the rear of the home, and extends the entire depth. The master bath provides a corner walk-in shower, with dual sinks and a private privy. The generous master closet makes room for luxurious built-ins.
  • The two guest bedrooms share a single bath that is positioned perfectly for great room guests to use as well. A carefully crafted entrance makes these two bedrooms feel more private.
  • The 2-car front load garage makes grocery drop-off a breeze, with its quick access to the kitchen and pantry. The utility room has a drop off area with shelves and a closet.

What's Included

  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.
  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,547 sq. ft.

1st Floor

1,547 sq. ft.

Porch, Front

92 sq. ft.

Lanai

231 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

50' 0"

Depth

59' 6"

Max Ridge Height

19' 6"

Garage

Type

Attached

Area

472 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Ranch

Southern

Vacation

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,547 sq. ft.

1st Floor

1,547 sq. ft.

Porch, Front

92 sq. ft.

Lanai

231 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

50' 0"

Depth

59' 6"

Max Ridge Height

19' 6"

Garage

Type

Attached

Area

472 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Ranch

Southern

Vacation

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
