Plan 51209MM
1619 Square Foot 3 Bed Craftsman House Plan with Flex Room
Heated S.F.
1,619
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This 1,619 square foot one-story house plan has Craftsman styling and gives you 3 beds, 2 baths and a 2-car 612 square foot garage.
  • The front and rear covered porches add 48 square feet of outdoor space to enjoy.
  • The great room features a vaulted ceiling and built in cabinets. French doors open to the back porch and the room is open to the well-equipped kitchen with large island with an eating bar.
  • The master bedroom has a raised ceiling and opens into the well equipped bath with dual sinks, corner tub and walk in closet. Across the home, two beds share a bath with two vanities.
  • Use the flex room as a home office or a den.
  • A shop area off the garage is there for projects and storage.
  • Related Plans: See the basement stairs with house plan 51208MM and get a version in reverse orientation with 51139MM (1,619 square foot)
What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

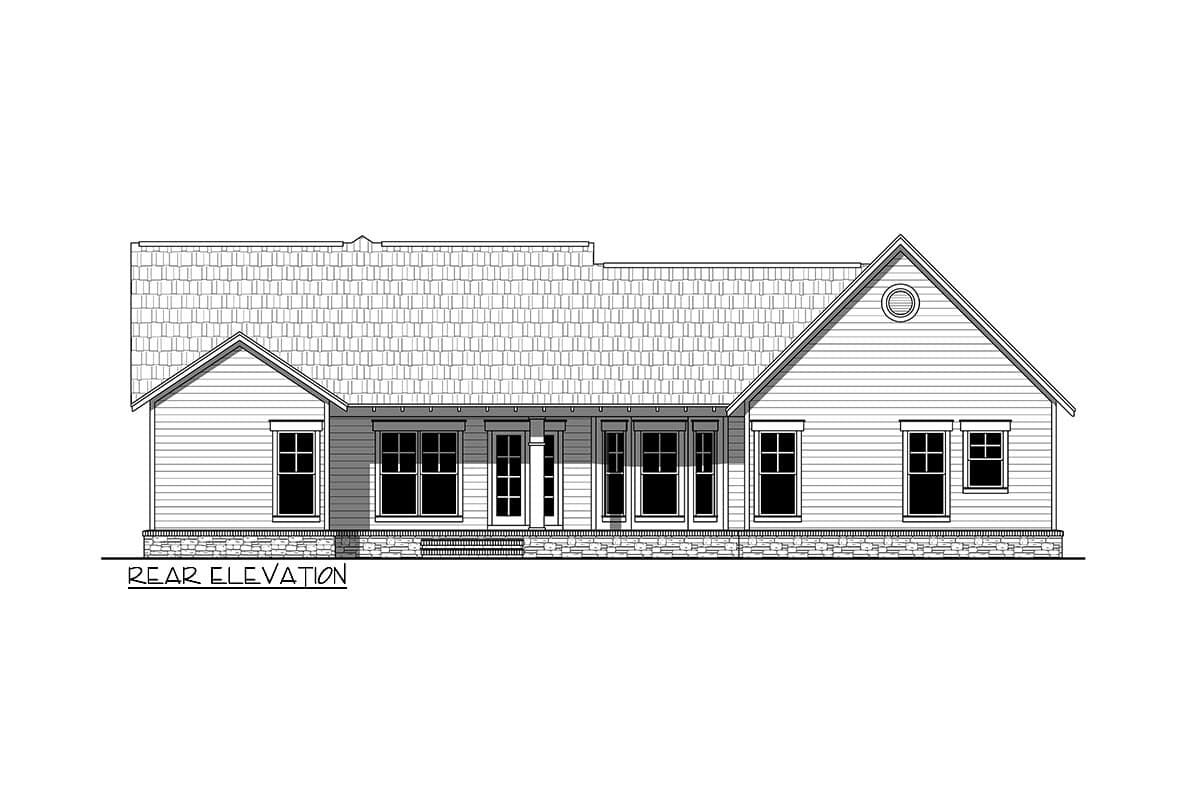

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1619 Square Foot 3 Bed Craftsman House Plan with Flex Room

  • 1,619

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,619 sq. ft.
  • 1st Floor: 1,619 sq. ft.

Dimensions

  • Width: 64' 0"
  • Depth: 52' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 612 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6
All house plans are copyright ©2024 by the architects and designers represented on our web site
