Plan 51208MM

3-Bed Craftsman House Plan Under 1650 Square Feet

Name: Plan 51208MM: 3-Bed Craftsman House Plan Under 1650 Square Feet
Brand: Architectural Designs
SKU: 51208MM
Price: 1300.0 USD
Availability: InStock

Heated S.F.

1,637

Beds

Baths

Stories

Cars

Floor Plan

Main Level

Plan Details

This 1,637 square foot one-story house plan has Craftsman styling and gives you 3 beds, 2 baths and a 2-car 681 square foot garage.
Front and rear porches combine for 418 square feet of shady space to enjoy.

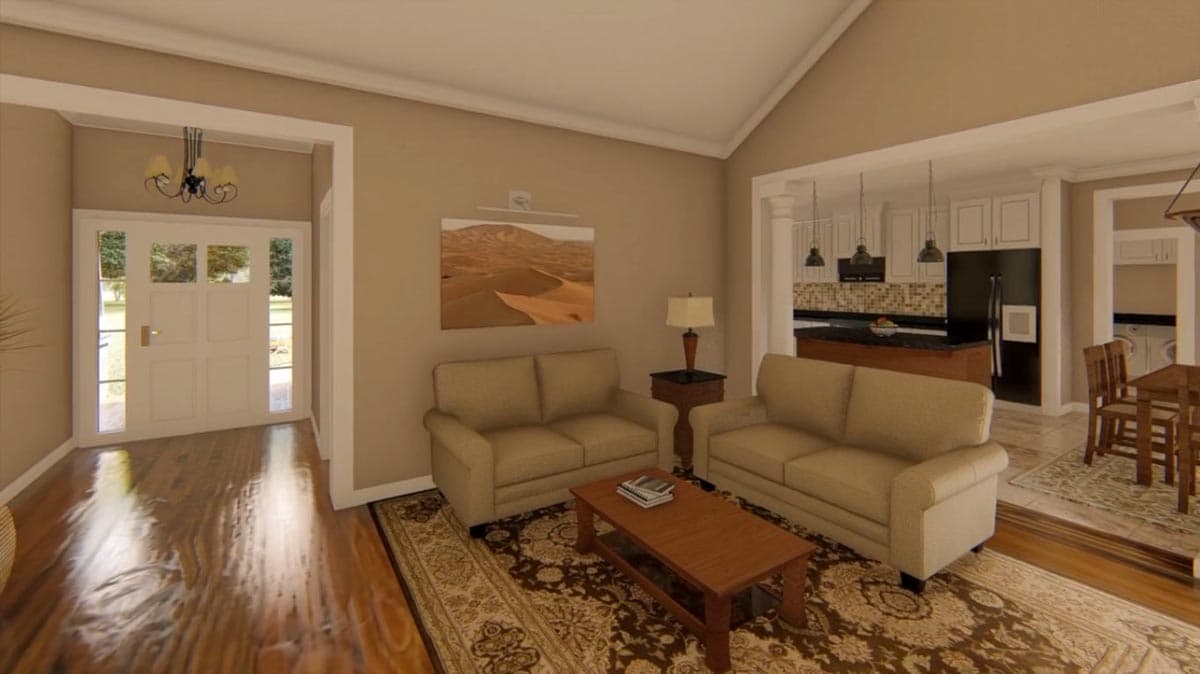

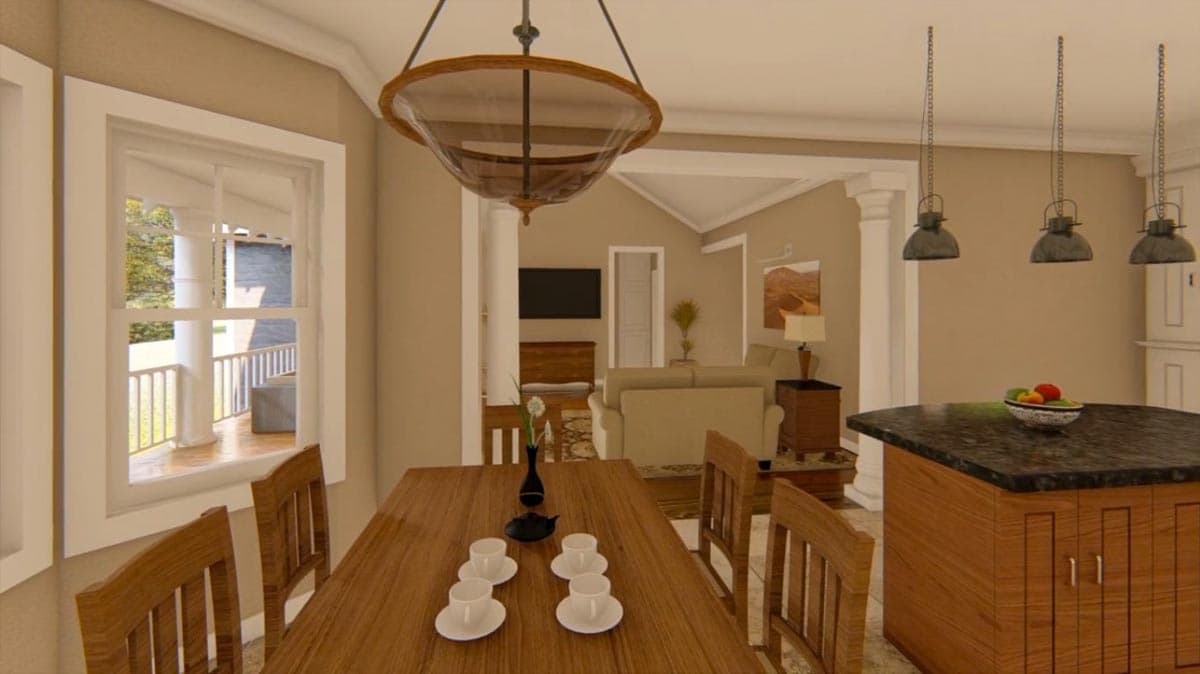

The great room features a vaulted ceiling and built in cabinets. French doors open to the back porch and the room is open to the well-equipped kitchen with large island with an eating bar.

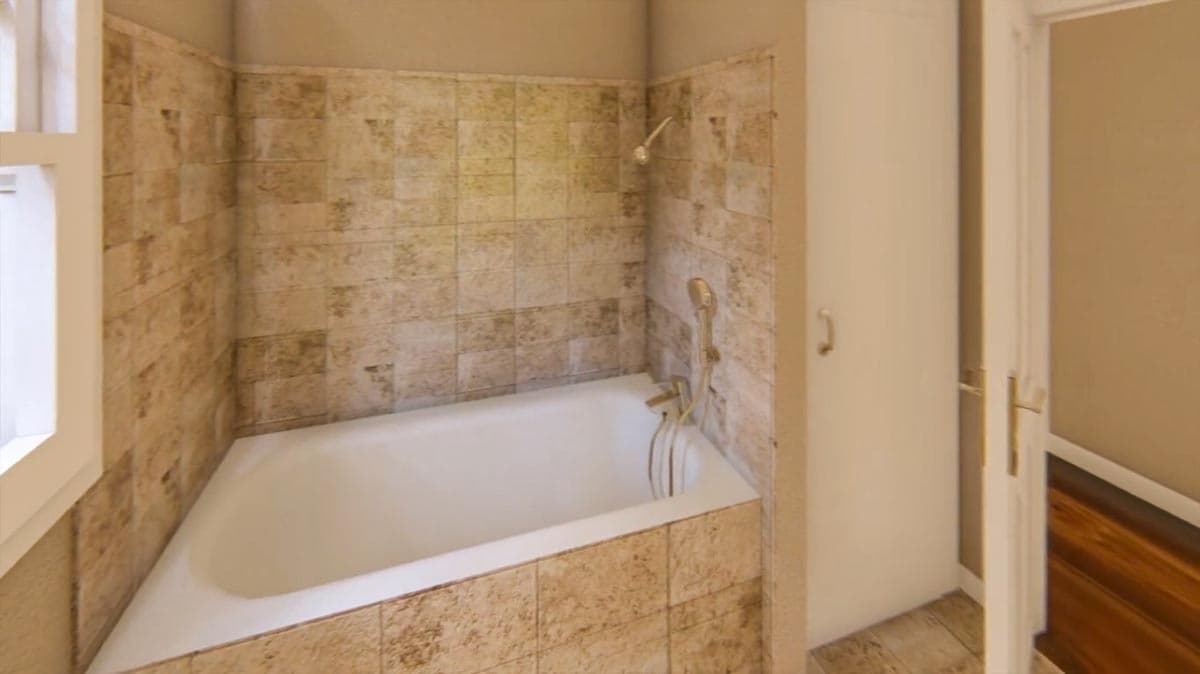

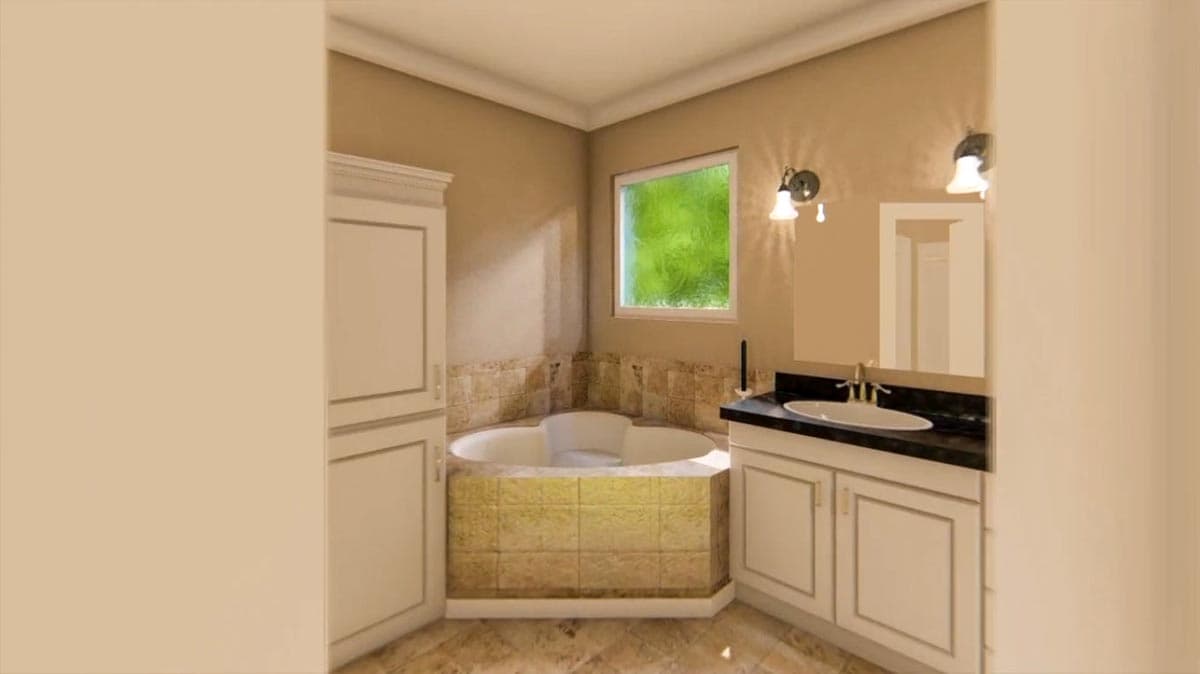

The master bedroom has a raised ceiling and opens into the well equipped bath with dual sinks, corner tub and walk in closet. Across the home, two beds share a bath with double vanities.
Use the flex room as a home office or a den.
A shop area off the garage is there for projects and storage.
Reveals the staircase leading down to the basement below.
Related Plans: See the plan without basement stairs with house plan 51209MM and get this plan in reverse orientation with house plan 51140MM (1,637 square foot)

What's Included

Cover Sheet: Showing architectural rendering of residence.
Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
Foundation Plan and Details
Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
Building Sections and Details

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
