1620 Square Foot 3-Bed Home Plan with Split Bedrooms

Plan 25033DH

  • 1,620

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • This stunning, board and batten, country-style home has great curb appeal, and has no wasted space on the interior! From the covered front porch, you will enter the great room and kitchen/dining area which is open and spacious.
  • The kitchen features a large island, a walk-in corner pantry, and upper and lower cabinets for storage. The Laundry room has a sink for easy cleanups, cabinets, and a closet for the maximum amount of storage.
  • The master suite has a walk-in closet and a bath with two sinks, a shower with a bench, and shelves for storage. Across the home, Beds 2 and 3 share a bathroom conveniently located between them and that has easy-access for guests.
  • An 8-foot deep deck at the rear of the home gives outdoor space to enjoy.
  • Related Plans: Get a smaller version with house plans 25022DH (1,500 sq. ft.), 25021DH (1,425 sq. ft.) and 25015DH (1,311 sq. ft.).

Each plan set includes the following:

  • Floor plans - Included with your plans will be a detailed floor plan at 1/4" scale with a window and door schedule.
  • Foundation Plan - On many of our plans we offer you options on the type of foundation. The available options for each plan are shown on the page with the plans.
  • Electrical Plan - This sheet will show the locations of all lights, receptacles, switches, etc. as well as a roof layout.
  • Exterior Elevations - Our plans include complete front, sides and rear views, as well as any special exterior details.
  • Interior Elevations of cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections, Details and Typical Specifications Sheets
  • Some plans can be ordered with a materials list for an extra change. Please check availability for this option.
  • Plumbing diagrams and HVAC plans are not available for these homes, since they are generally not needed for home construction and since each county's code will vary and a licensed plumber and/or electrician must follow the codes.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

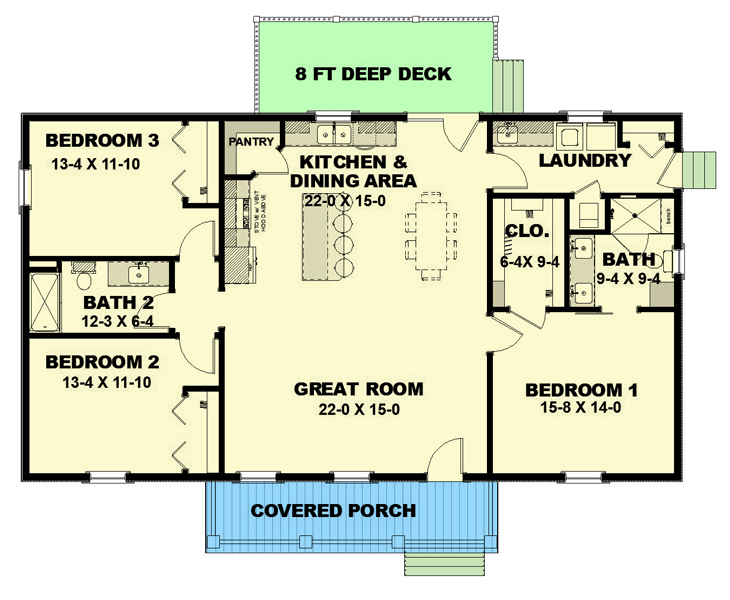

1620 Square Foot 3-Bed Home Plan with Split Bedrooms - 25033DH floor plan - Main Level

3D Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

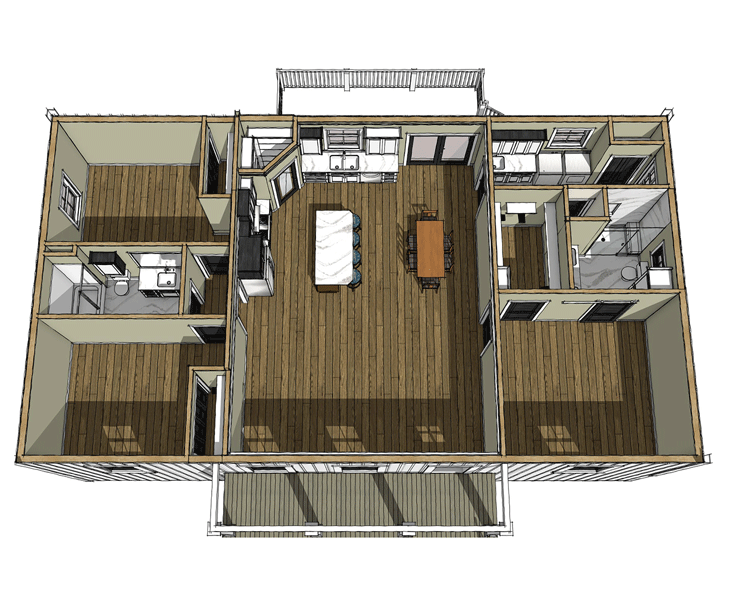

1620 Square Foot 3-Bed Home Plan with Split Bedrooms - 25033DH floor plan - 3D Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,620 sq. ft.
  • 1st Floor: 1,620 sq. ft.
  • Deck: 160 sq. ft.
  • Screened Porch: 144 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Stem Wall, Monolithic Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 44' 0"
  • Max ridge height: 20' 4"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features
