Plan 666132RAF
1621 Square Foot Modern House Plan with Alley-Access Garage and All Bedrooms Upstairs
Heated S.F.
1,621
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • All three bedrooms are located on the second floor - as is laundry - in this 1,621 square foot modern house plan. A 2-car alley access garage (410 sq. ft.) is a sign that this home is ideal for your tight lot.
  • Step in off the covered entry and find yourself in a cozy entry with a coat closet and stairs ahead of you going to the second floor.

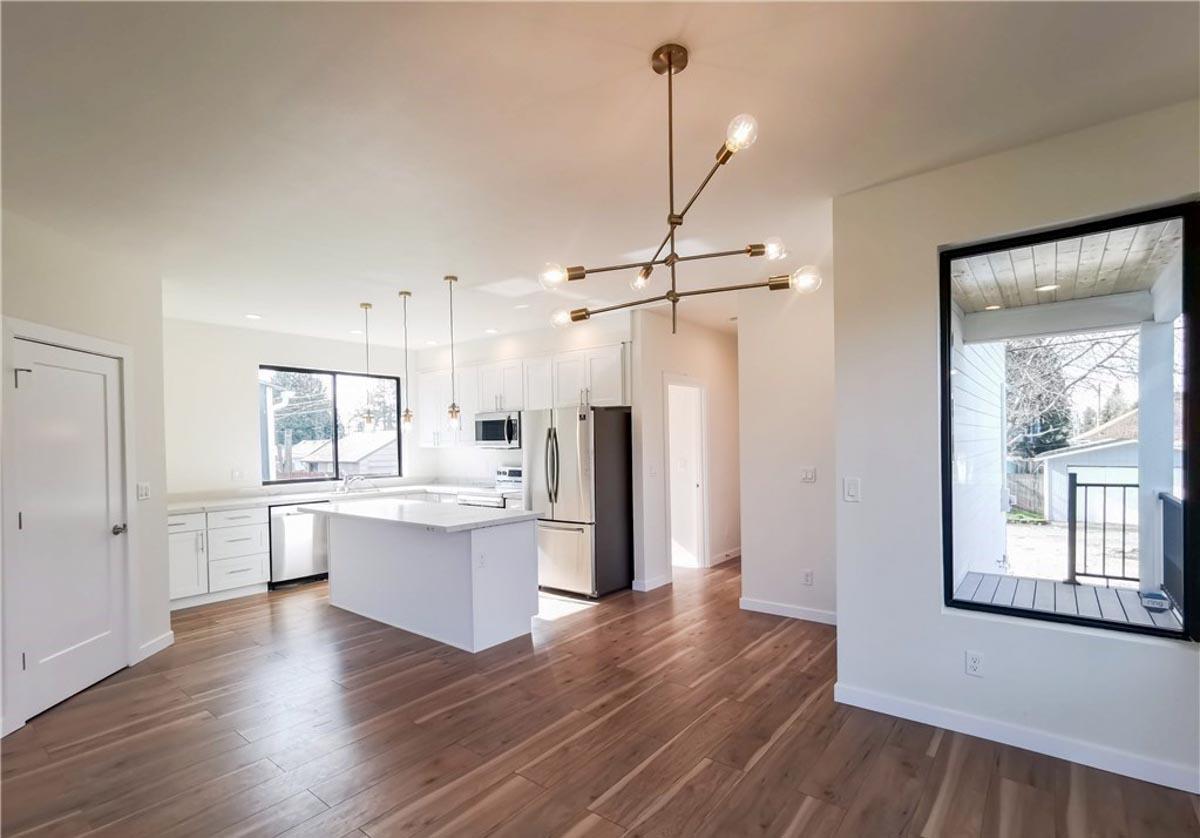

  • An open floor plan combines the family room with fireplace, the dining room and kitchen into one seamless space made for entertaining.
  • A home office is located by the garage entry and across from the powder room giving you a great space to work from when you don't have to go into work.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans
  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

1621 Square Foot Modern House Plan with Alley-Access Garage and All Bedrooms Upstairs

  • 1,621

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

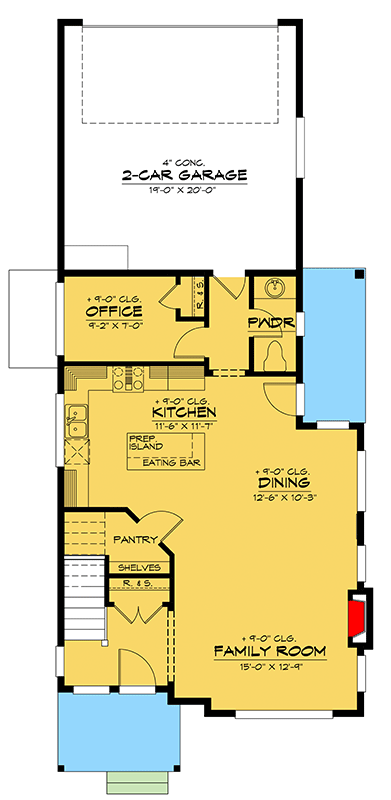

  • Main Level

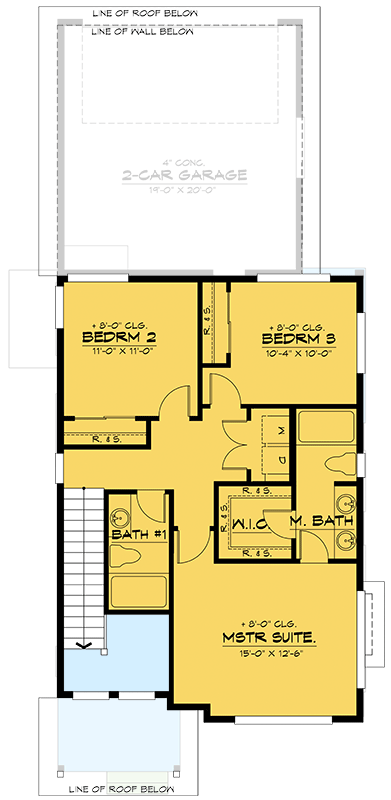

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,621 sq. ft.
  • 1st Floor: 832 sq. ft.
  • 2nd Floor: 789 sq. ft.

Dimensions

  • Width: 25' 9"
  • Depth: 57' 0"
  • Max ridge height: 24' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 410 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 3 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
