Plan 28047J

1650 Square Foot Modern 3-Bed House Plan with Upstairs Laundry

Name: Plan 28047J: 1650 Square Foot Modern 3-Bed House Plan with Upstairs Laundry
Brand: Architectural Designs
SKU: 28047J
Price: 1495.0 USD
Availability: InStock

Heated S.F.

1,650

Beds

Baths

2.5

Stories

Cars

Floor Plan

Main Level

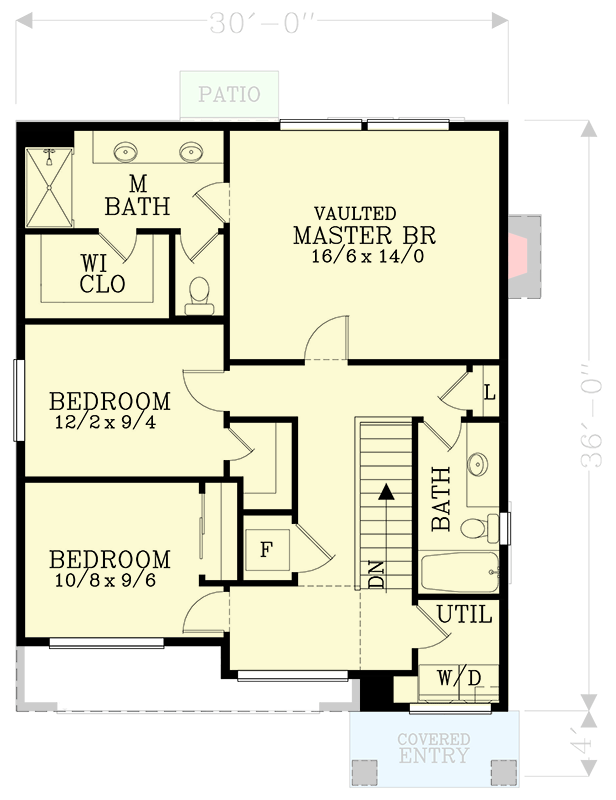

2nd Floor

Plan Details

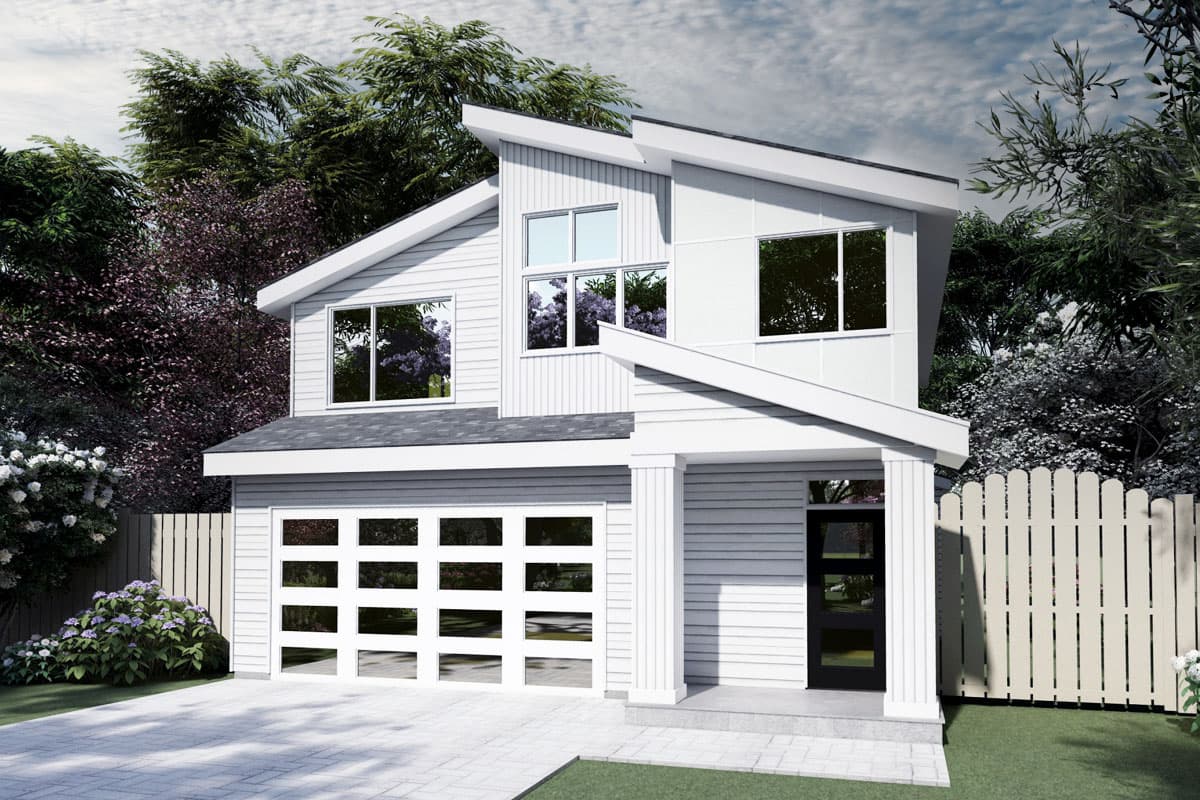

A blend of vertical and horizontal siding pairs with oversized panels to bring a Contemporary appeal to this 1,650 square foot modern house plan.

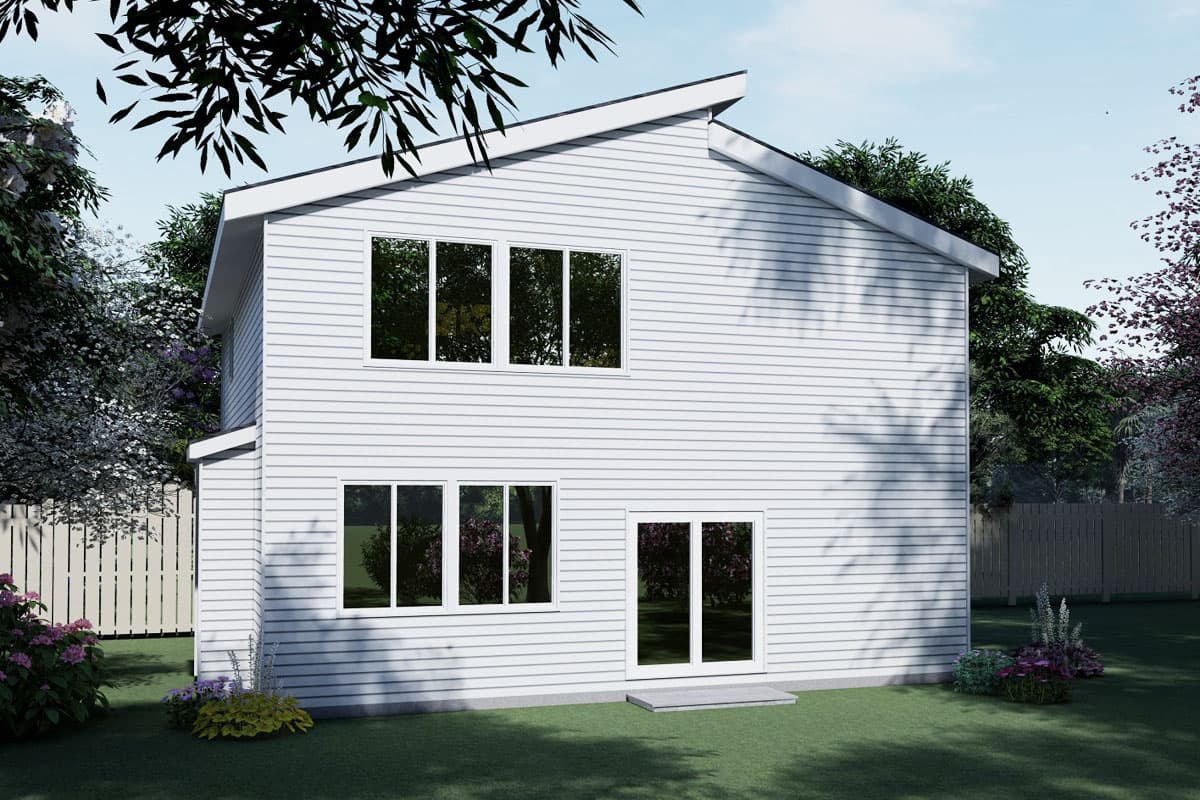

A powder room is located off the foyer and a closet under the stairs gives you space to hang coats and put shoes. The primary living spaces can be found along the rear elevation. Sliding doors in the breakfast nook take you to a patio and the back yard.
Cabinets line two walls of the kitchen and an island has twin sinks, a dishwasher and casual seating. A nearby closet pantry boosts storage space.
A vaulted master suite consumes a large portion of the second-level real estate with two large windows inviting natural light to fill the space.
Two secondary bedrooms share a full bath, and the laundry room is tucked away in the front-right corner.
Related Plans: Get alternate versions with house plans 28040J (1,868 sq. ft.) and 28046J (1,650 sq. ft.).

What's Included

Foundation plan with details
Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Wall section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
