1780 Square Foot Contemporary Cottage with 6-Foot-Deep Back Porch

Heated S.F.
1,780
Beds
3
Baths
2.5
Stories
2

Floor Plan

Plan 52323WM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 52323WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

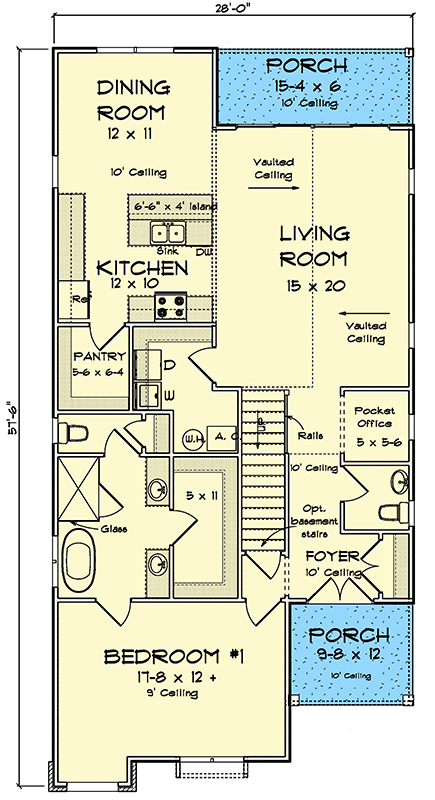

Plan 52323WM: 1780 Square Foot Contemporary Cottage with 6-Foot-Deep Back Porch - Floor Plan - Main Level - Contemporary, Cottage, Modern

2nd Floor

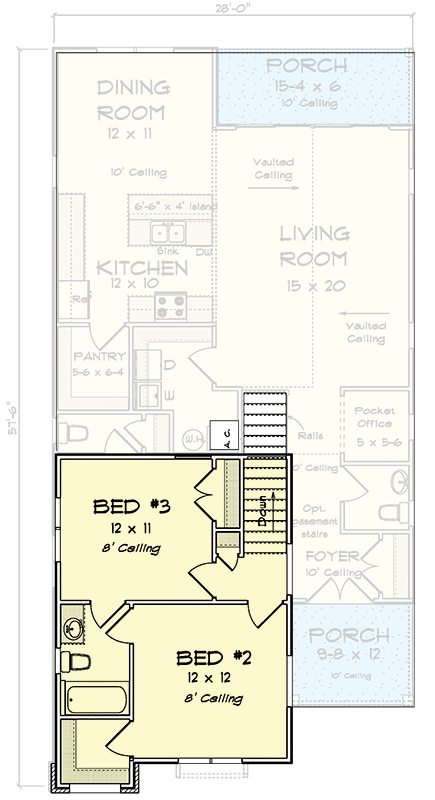

Plan 52323WM: 1780 Square Foot Contemporary Cottage with 6-Foot-Deep Back Porch - Floor Plan - 2nd Floor - Contemporary, Cottage, Modern

Plan Details

This 3 bed, 2 bath contemporary cottage house gives you 1,780 square feet of heated living space and has a cozy 6'-deep back porch accessible from the vaulted living room.
The kitchen sits at the juncture of the dining room and living room and has a 5'6" by 6'4" true walk-in pantry and an island (6'6" by 4') with double sink and casual seating.
The master suite is located on the main floor and has a large (5' by 11') walk-in closet and a five-fixture bath with two vanities.
Upstairs, two bedrooms share a bath.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,780 sq. ft.

1st Floor

1,355 sq. ft.

2nd Floor

425 sq. ft.

Porch, Front

77 sq. ft.

Porch, Rear

92 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

57' 6"

Max Ridge Height

25' 3"

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Cottage

Modern

Special Features

Bedrooms - Split

Formal Dining

Home Office

Laundry - Main Level

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

1,780 sq. ft.

1st Floor

1,355 sq. ft.

2nd Floor

425 sq. ft.

Porch, Front

77 sq. ft.

Porch, Rear

92 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

28' 0"

Depth

57' 6"

Max Ridge Height

25' 3"

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Cottage

Modern

Special Features

Bedrooms - Split

Formal Dining

Home Office

Laundry - Main Level

Master Suite - Upstairs

Walk-in Pantry

Plan Collections

Home Office
