1800 Square Foot Split Bedroom House Plan with Outdoor Fireplace

Plan 135201GRA

  • 1,819

    Heated s.f.

  • 2-3

    Beds

  • 1.5 - 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • This 1,819 square foot split bedroom house plan offers you the convenience of one-level living and the freedom to expand to a lower level with the optional finished walkout basement included with your purchase making this home great for your water view or rear sloping mountain lot.
  • An open floor plan combines the great room, dining room and kitchen into a single entertaining space. Views extend to the back and a door in the dining room takes you to your vaulted covered deck with outdoor fireplace.
  • The master suite occupies the left side of the home and has a large walk-in closet. A second bedroom is located across the home and has its own bath.
  • Get a third bedroom and bath if you decide to finish the lower level. You'll also get a large family room with a bar and pantry as well as two rec spaces. Storage, mechanical space and outdoor access complete this level.
  • Related Plan: Get an alternate version with house plan 135023GRA.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

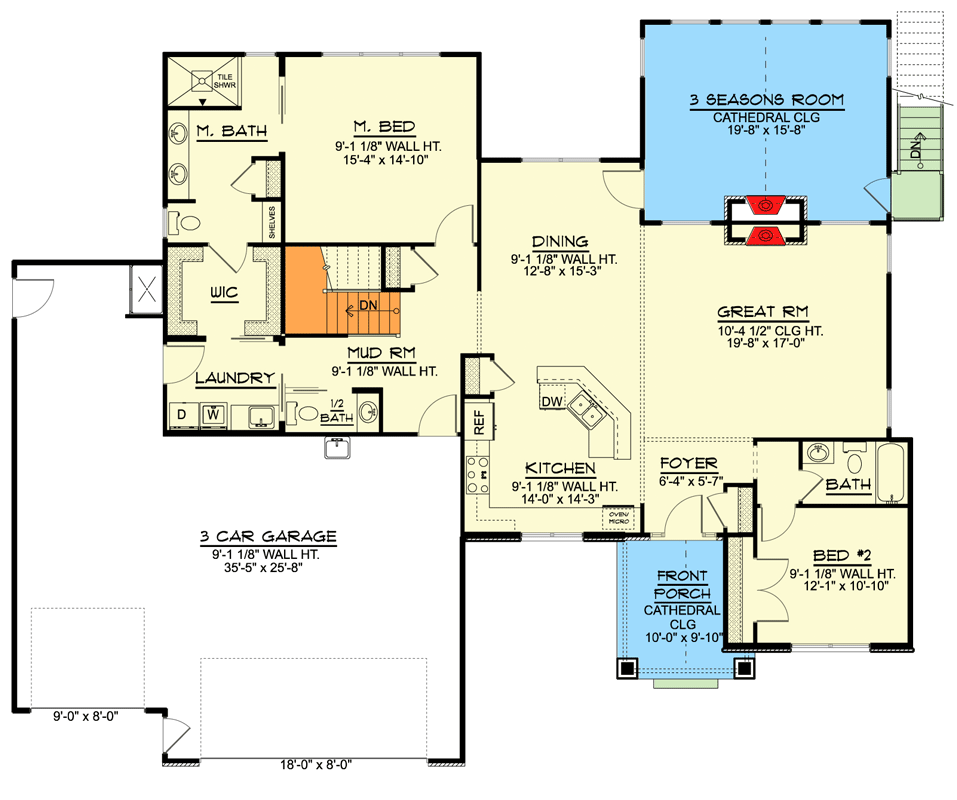

1800 Square Foot Split Bedroom House Plan with Outdoor Fireplace - 135201GRA floor plan - Main Level

Optionally Finished Walkout Basement

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

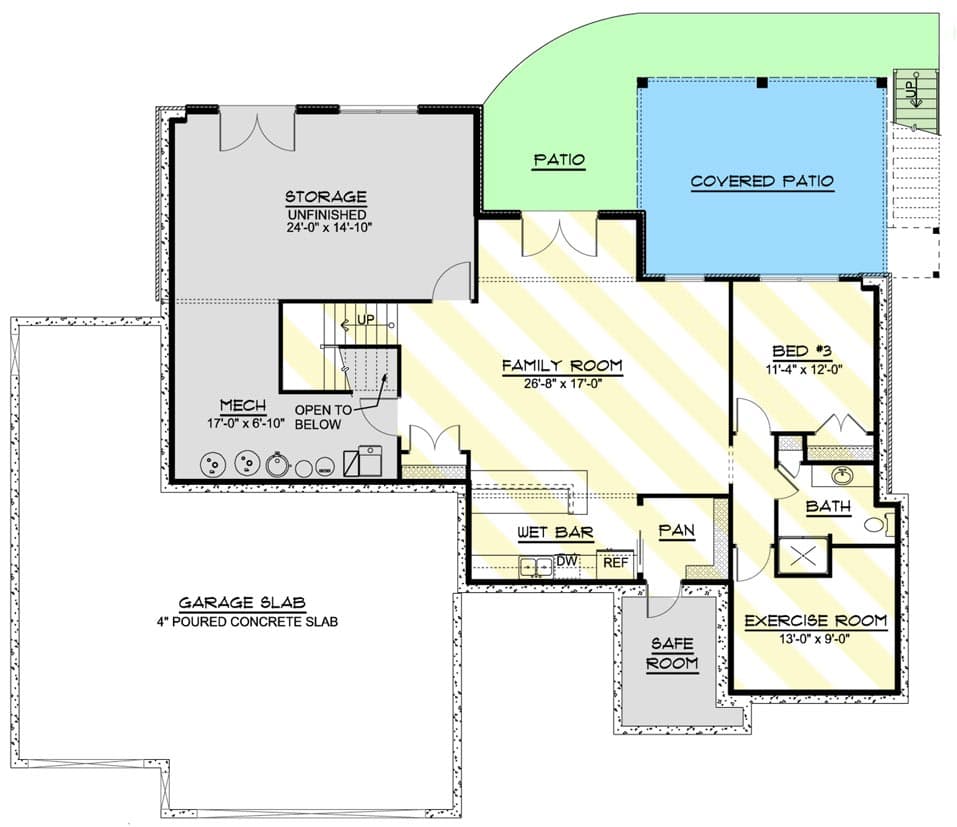

1800 Square Foot Split Bedroom House Plan with Outdoor Fireplace - 135201GRA floor plan - Optionally Finished Walkout Basement

1800 Square Foot Split Bedroom House Plan with Outdoor Fireplace

  • 1,819

    Heated s.f.

  • 2-3

    Beds

  • 1.5 - 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optionally Finished Walkout Basement

Plan Details

Square Footage Breakdown

  • Total: 1,819 sq. ft.
  • 1st Floor: 1,819 sq. ft.

Dimensions

  • Width: 71' 8"
  • Depth: 59' 2"
  • Max ridge height: 20' 11"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 1 or 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1059 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Optional Foundations: Slab, Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
