Plan 82315KA 1951 Square Foot 4 Bed Southern Contemporary House Plan

1,951 4 3 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

1951 Square Foot 4 Bed Southern Contemporary House Plan

Plan 82315KA

  • 1,951

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 4-bed house plan gives you 1,951 square feet of heated living space and has a stucco and stone exterior and a hip roof .
  • Three bedrooms line the left side of the home and a fourth is located by the foyer. This bedroom is ideal for guests and can be converted for use as a home office.
  • An open concept layout gives you a dining room and great room front to back and the kitchen set off to the side with an island providing separation.

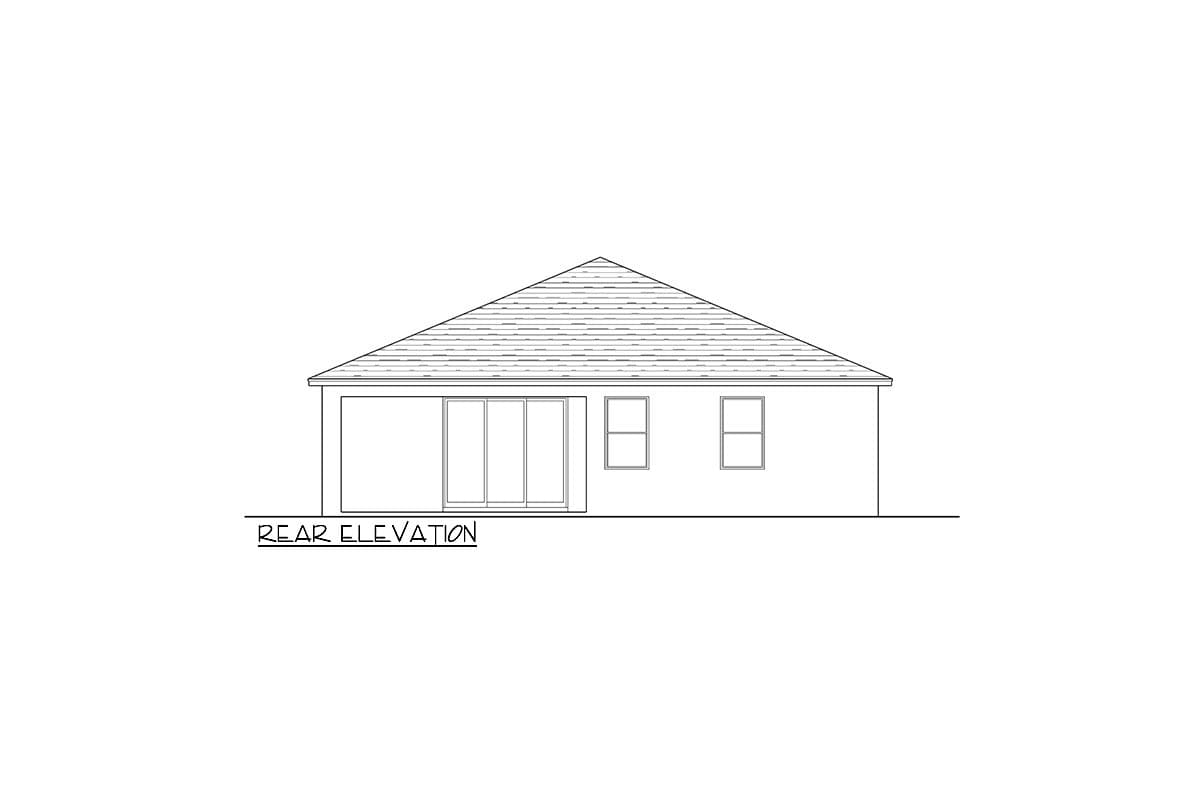

  • Sliding doors on the back wall of the living room take you to a covered lanai.
  • Related Plan: Get an alternate exterior with house plan 82314KA.

Each plan set includes the following:

  • Foundation Plan: Complete with dimensions, dimensioned plumbing, referenced details, General Notes and Schedules.
  • Elevations: Minimal four completed elevations with dimensions, notes and material call outs. Also exterior details where applicable.
  • Floor Plan(s): Complete with dimensions and notes of all elements. On our high-end plans we provide architectural and structural floor plans, as typical part of our sets to avoid clatter and for easy construction.
  • Roof Plan: Complete with roof pitches overhangs and notes for special condition also dimensions on any special condition as per plan.
  • Building Sections: Where applicable, building sections are included. The quantity of these drawings is determined by the plan set complexity.
  • Details: Interior and Exterior details as require per plan. Common details are: Applicable Cornice (Eve) and Special Details designed directly from the plan (not typical details that are reused for every plan produced). We do this to improve the accuracy and integrity that should be expected from quality set of plans.
  • Interior Elevations: Some sets include interior Kitchen, Bathrooms and other significant detailed plan specific areas.
  • Roof Framing Plan: Engineered truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Floor Framing Plan: Only were needed. Engineered floor truss layout from a local truss company. All hangers, connectors and or special details are shown. Since local codes and conditions very, this plan is for reference only.
  • Building Sections: Complete with layout, light fixtures, outlets, legend and notes.
  • Electrical Plan: Complete with layout, Light fixtures, Outlets and legend.
  • Lintel Plan: Provided with block concrete masonry unit plans only. Lintel sizes and details for all exterior openings. Since local codes and conditions very, this plan is for reference only.
  • Structural Details: Including wall sections and all framing details needed per plans. Since local codes and conditions very, this plan is for reference only.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

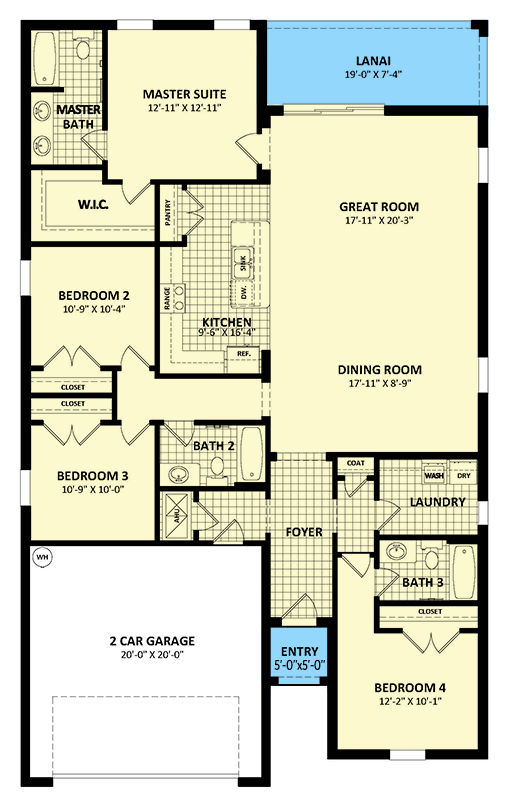

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
1951 Square Foot 4 Bed Southern Contemporary House Plan - 82315KA floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,951 sq. ft.
  • 1st Floor: 1,951 sq. ft.
  • Porch, Rear: 139 sq. ft.
  • Porch, Front: 25 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 40' 0"
  • Depth: 65' 8"
  • Max ridge height: 17' 1"

Garage

  • Type: Attached
  • Area: 436 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 5 on 12
  • Framing Type: Truss

Architectural Style

Special features

1951 Square Foot 4 Bed Southern Contemporary House Plan

  • 1,951

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,900
  • CAD - Single-Build $2,300
  • PDF - Single-Build $2,300
  • View all purchase option online

About This Plan

  • This 4-bed house plan gives you 1,951 square feet of heated living space and has a stucco and stone exterior and a hip roof .
  • Three bedrooms line the left side of the home and a fourth is located by the foyer. This bedroom is ideal for guests and can be converted for use as a home office.
  • An open concept layout gives you a dining room and great room front to back and the kitchen set off to the side with an island providing separation.
  • Sliding doors on the back wall of the living room take you to a covered lanai.
  • Related Plan: Get an alternate exterior with house plan 82314KA.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,951 sq. ft.
  • 1st Floor: 1,951 sq. ft.
  • Porch, Rear: 139 sq. ft.
  • Porch, Front: 25 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 40' 0"
  • Depth: 65' 8"
  • Max ridge height: 17' 1"

Garage

  • Type: Attached
  • Area: 436 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 5 on 12
  • Framing Type: Truss
