2,300 Square Foot Contemporary Ranch with Vaulted Great Room
Heated S.F.
2,300
Beds
3-4
Baths
2.5
Stories
1
Cars
2
Floor Plan
Optional Basement Stairs Location
Reverse Floor Plan

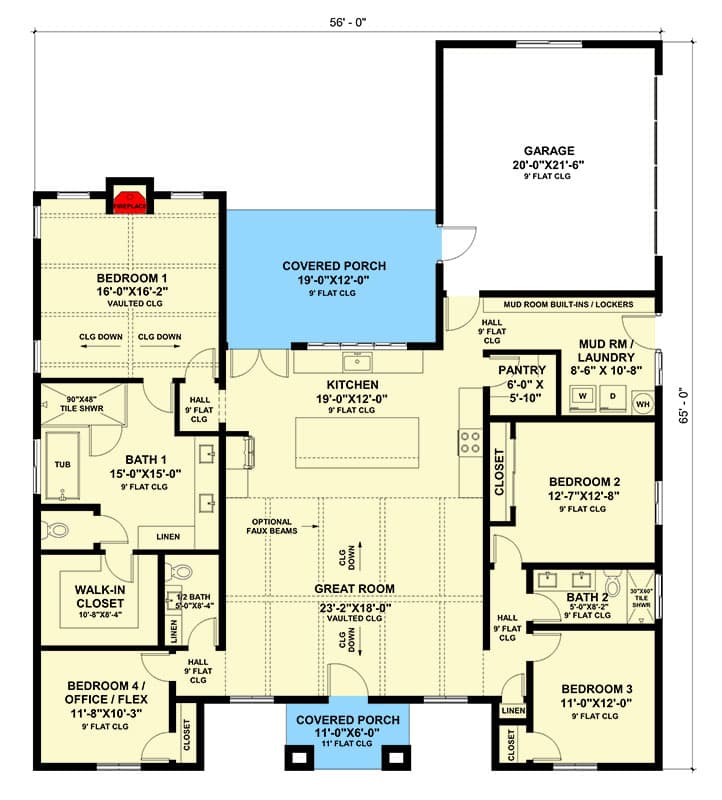

2,300 Square Foot Contemporary Ranch with Vaulted Great Room - 420142WNT floor plan - Optional Basement Stairs Location
Optional Basement
Reverse Floor Plan

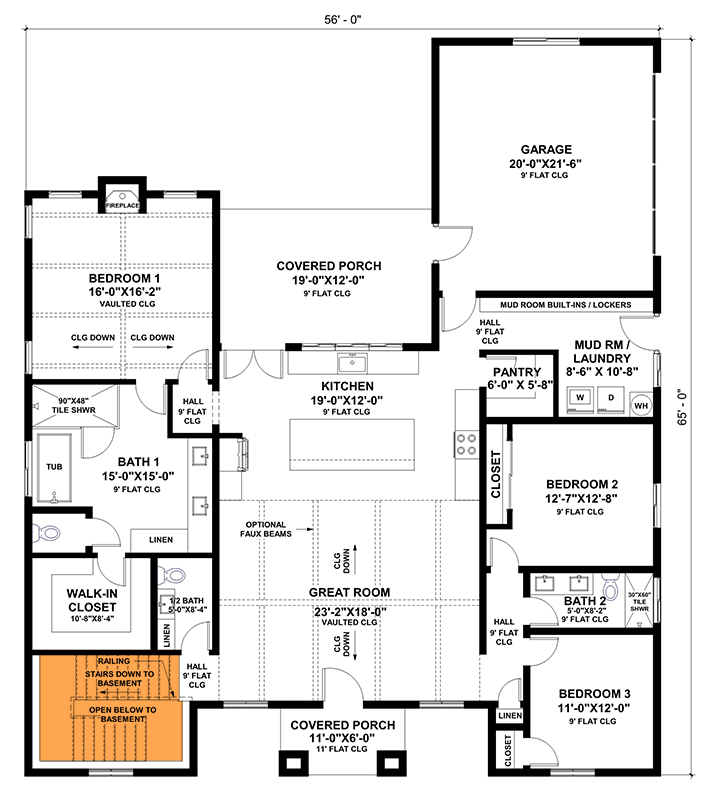

2,300 Square Foot Contemporary Ranch with Vaulted Great Room - 420142WNT floor plan - Optional Basement
Plan Details
  • Two gables of nearly identical size with two-over-two windows - with similar matching pairs of windows to either side of the covered entry - combine to give this one-story Contemporary Ranch home plan a soothing and attractive façade. Inside, the home plan gives you 2300 square feet of heated living.
  • You enter the home in the vaulted great room. It is up to you to add faux beams. If you did, we think it would look great! The great room is open to the island kitchen with a sink set below windows looking out across the covered porch.
  • The master bedroom is in the back -left corner and has a fireplace on the back wall and a roomy walk-in closet. To the left of the entry, a flex room can be used as a home office or as fourth bedroom. To the right, two bedrooms share a hall bath.
  • The side-entry 2-car garage is set in the back-right side of the home and accesses the home by the kitchen.
  • NOTE: Please allow 3 to 5 business days for delivery.
  • Related Plan: Get a small version with house plan 420111WNT (2,098 sq. ft.).
What's Included
  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Layout Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Mechanicals Plan - Suggested HVAC equipment placement
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.
  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details and notes - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, insulation information etc.
What's Not Included
  • Architectural or Engineering Stamp
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
