Plan 680657VR

2,450 Sq Ft Modern Mountain Ranch House Plan with Split Bedrooms

Heated S.F.
2,450
Beds
3
Baths
2.5
Stories
1
Cars
2- 3
Tour

Floor Plan

Plan 680657VR

Main Level
Main Level

Plan 680657VR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

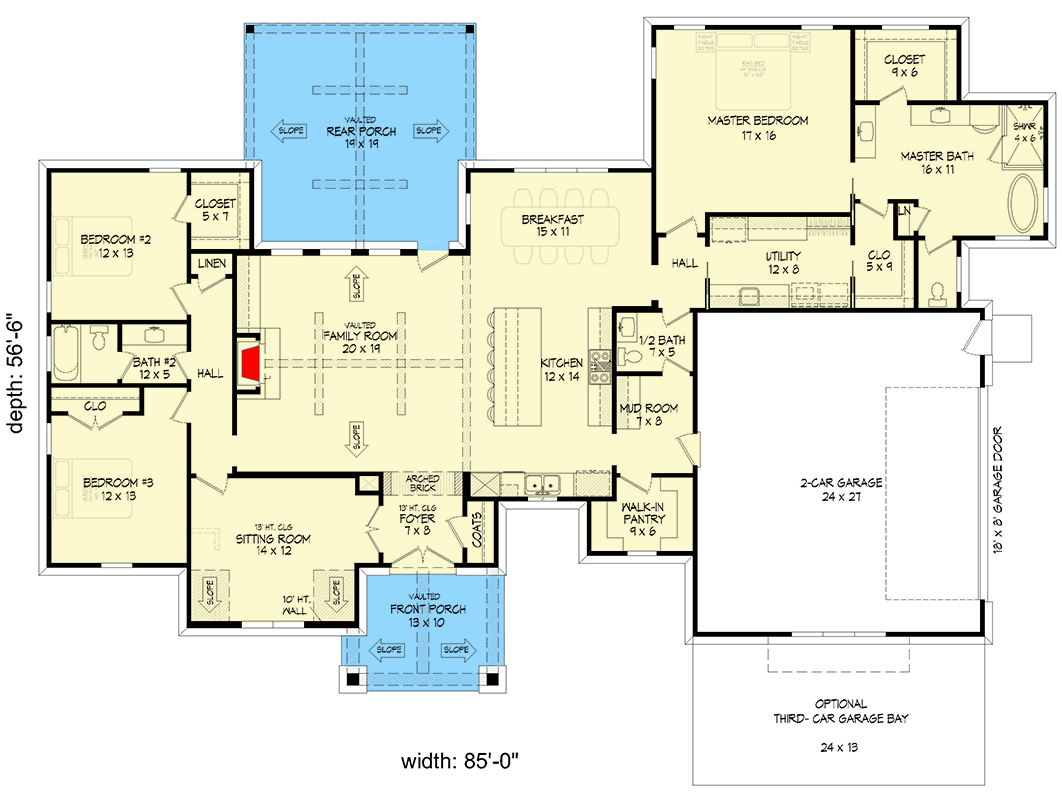

Plan 680657VR: 2,450 Sq Ft Modern Mountain Ranch House Plan with Split Bedrooms - Floor Plan - Main Level - Modern Farmhouse, Mountain, Ranch

Plan Details

  • This single-story Modern Mountain Farmhouse features 2,450 square feet of heated living space, offering 3 bedrooms, 2.5 bathrooms, and a functional 674-square-foot side-entry garage accommodating two to three vehicles.
  • Stepping through the timber-framed front porch, you are greeted by an expansive open-concept layout characterized by 10-foot ceilings and a seamless flow between the primary common areas.

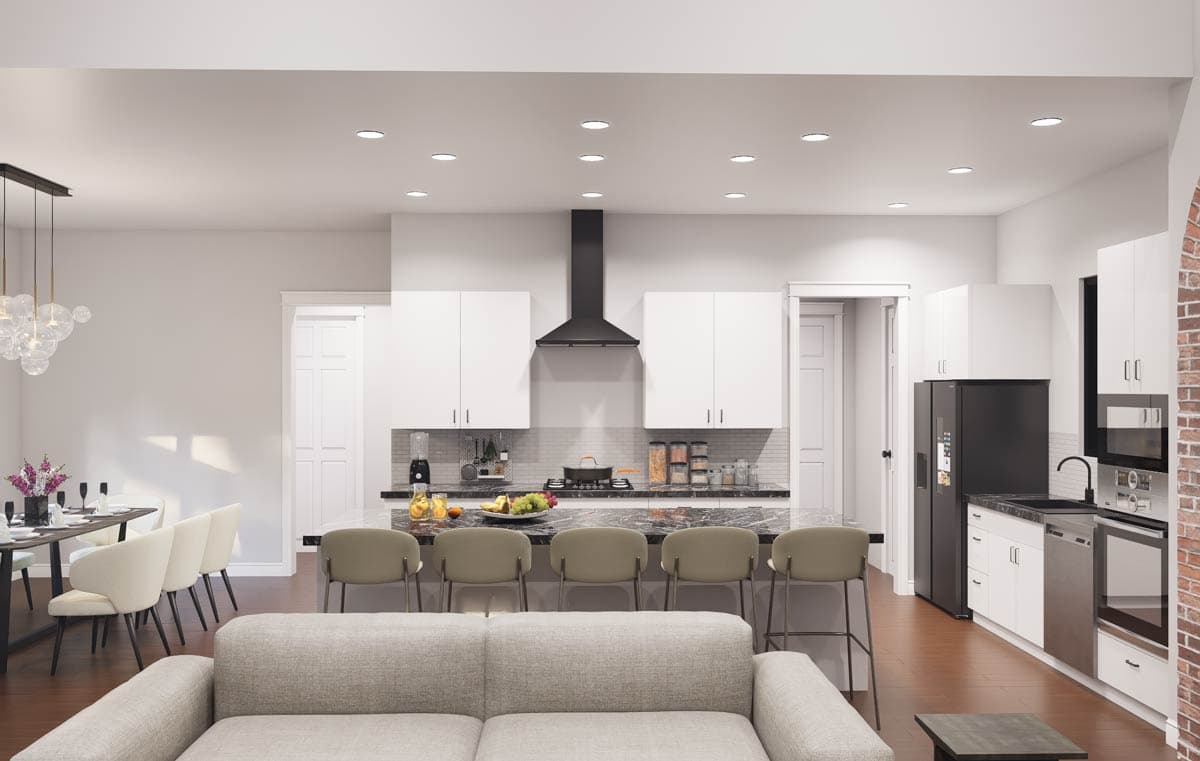

  • The heart of the home centers around a voluminous great room that transitions into a gourmet kitchen featuring a central island and a hidden butler’s walk-in pantry for effortless organization and storage.
  • Designed for privacy, the split-bedroom floor plan places the primary suite in its own wing, boasting a spa-like bathroom and direct access to the laundry room for ultimate convenience.
  • A dedicated mudroom serves as a transition point from the garage, keeping the home tidy, while the secondary bedrooms occupy the opposite side of the home to ensure quiet and seclusion for family or guests.
  • Outdoor living is prioritized with a deep 358-square-foot rear porch, providing a sheltered retreat for evening relaxation or alfresco dining in the fresh mountain air.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,450 sq. ft.

1st Floor

2,450 sq. ft.

Porch, Front

123 sq. ft.

Porch, Rear

358 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

85' 0"

Depth

56' 6"

Max Ridge Height

23' 10"

Garage

Type

Standard, Attached

Area

674 sq. ft.

Count

2 or 3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Modern Farmhouse

Mountain

Ranch

Special Features

Bedrooms - Split

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
