Plan 42605DB 2-Bed Bungalow Plan with Optional Sunroom

2-Bed Bungalow Plan with Optional Sunroom

Plan 42605DB

  • 1,584

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 2-bedroom, bungalow plan offers tremendous curb appeal with a blanket of shakes beneath the gabled front porch, and a shed dormer atop the 2-car garage.
  • Once inside, a hallway leads to a forward-facing bedroom, which neighbors a full bath and laundry room.
  • The center of everyday living resides towards the back, and features an open floor plan with a cathedral ceiling and fireplace. L-shaped counters hug a centered island for additional prep space.
  • The owner's suite is located behind the double garage, separated from the second bedroom for added privacy. A pocket door reveals the 4-fixture master bath with a roomy walk-in closet.
  • The design provides an optional sunroom, which increases living space by 180 sq. ft.
  • Related Plans: Get a 3-bed version with house plan 42606DB and 42636DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria; abbreviations; and symbols for your plan.

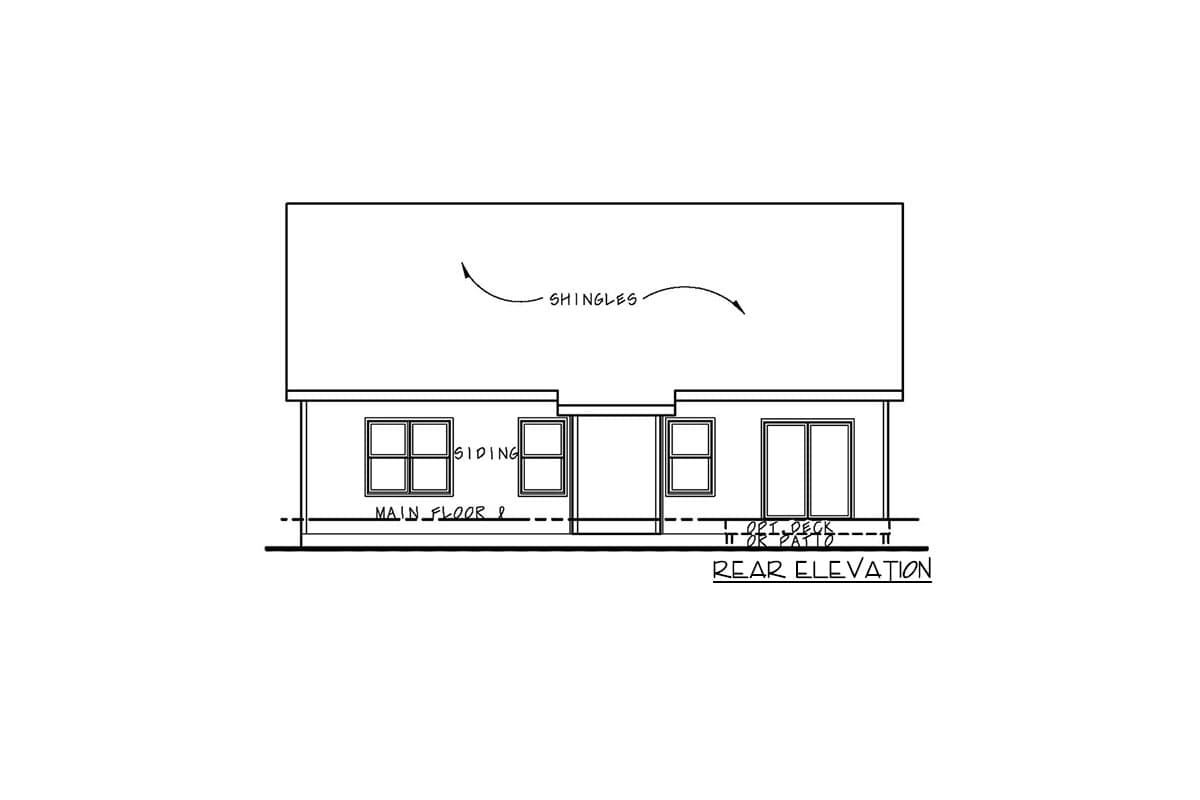

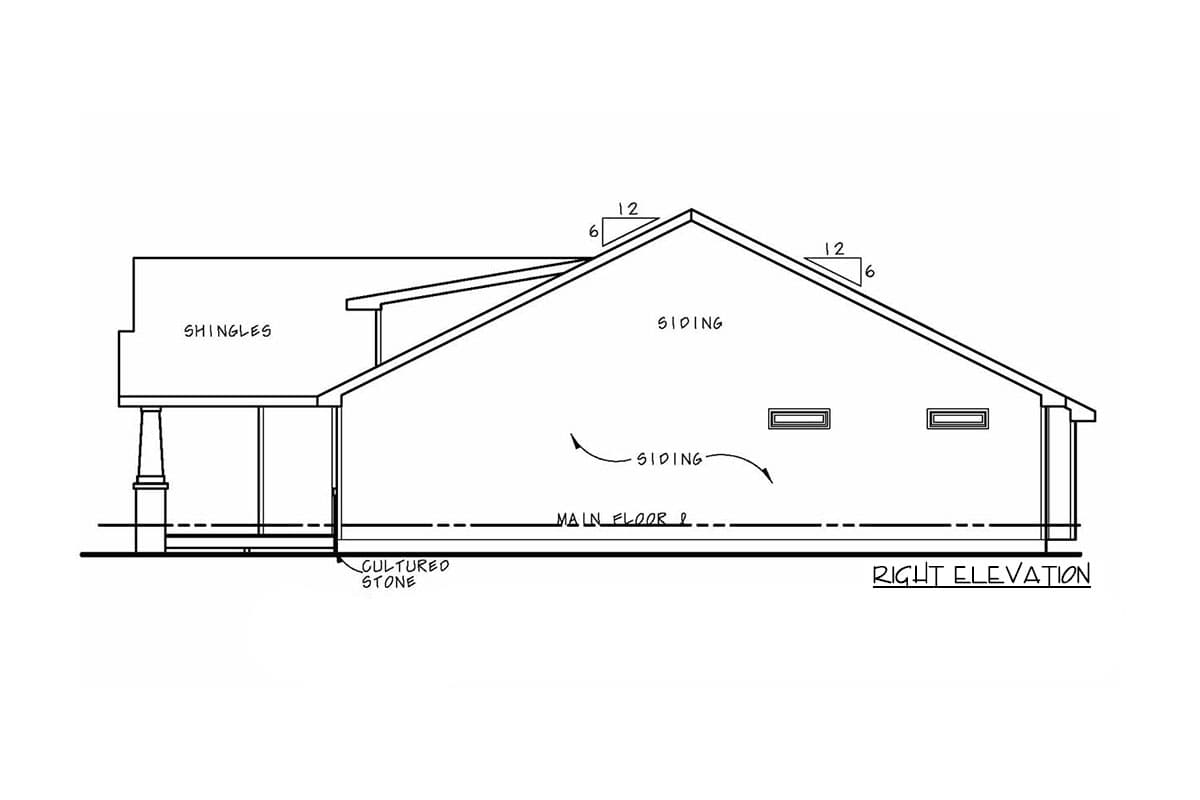

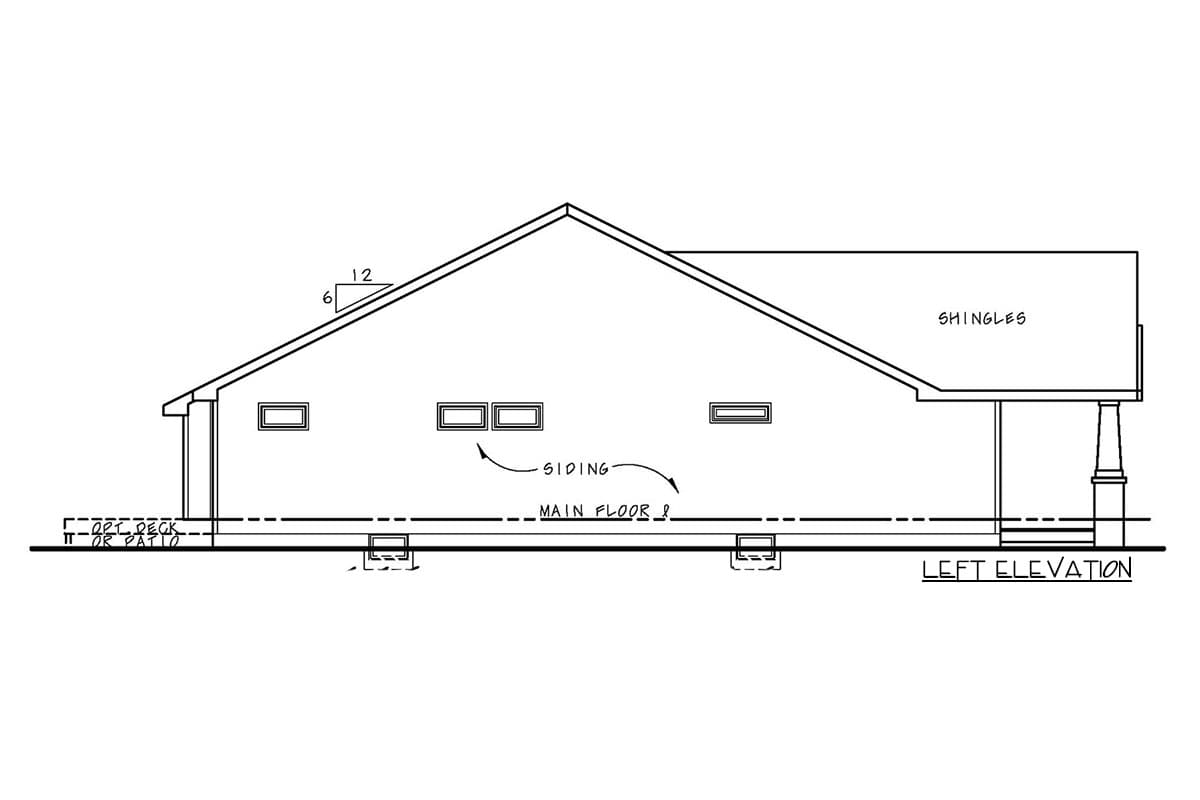

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

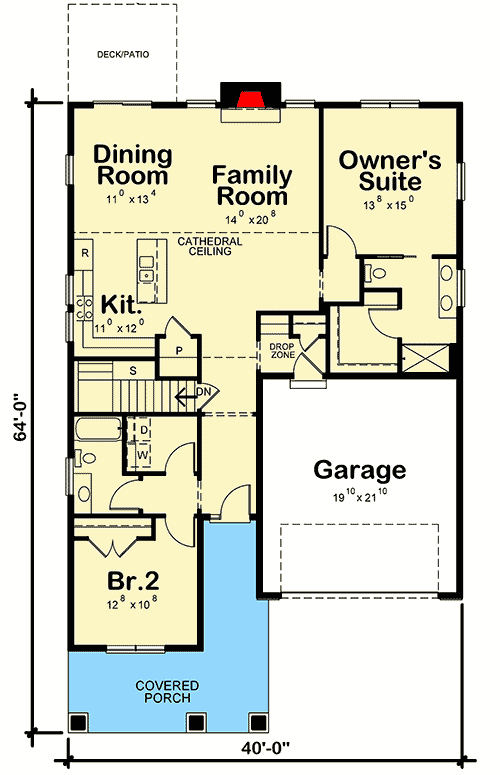

Floor Plan

Optional Sunroom

2-Bed Bungalow Plan with Optional Sunroom - 42605DB floor plan - Optional Sunroom

Plan details



2-Bed Bungalow Plan with Optional Sunroom

  • 1,584

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $615
  • PDF - Single-Build $935
  • PDF - Unlimited Build $1,435
  • CAD - Single-Build $1,636
  • CAD - Unlimited Build $2,136
  • View all purchase option online

About This Plan

  • This 2-bedroom, bungalow plan offers tremendous curb appeal with a blanket of shakes beneath the gabled front porch, and a shed dormer atop the 2-car garage.
  • Once inside, a hallway leads to a forward-facing bedroom, which neighbors a full bath and laundry room.
  • The center of everyday living resides towards the back, and features an open floor plan with a cathedral ceiling and fireplace. L-shaped counters hug a centered island for additional prep space.
  • The owner's suite is located behind the double garage, separated from the second bedroom for added privacy. A pocket door reveals the 4-fixture master bath with a roomy walk-in closet.
  • The design provides an optional sunroom, which increases living space by 180 sq. ft.
  • Related Plans: Get a 3-bed version with house plan 42606DB and 42636DB.

Floor Plans

  • Main Level

  • Optional Sunroom

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,584 sq. ft.
  • 1st Floor: 1,584 sq. ft.
  • Porch, Front: 249 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 64' 0"
  • Max ridge height: 24' 1"

Garage

  • Type: Attached
  • Area: 458 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
