Quaint 3-Bed Home Plan with Cathedral Ceiling

Plan 42636DB

  • 1,511

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Quaint and cozy define this 3-bedroom home plan, complete with loads of exterior character and curb appeal.
  • Inside, the heart of the home is located behind the 2-car garage, and features a cathedral ceiling above the family room, with a fireplace anchoring the rear wall.
  • The open eat-in kitchen includes a central island, and sliding doors in the adjoining dining area lead to a back patio. Wide transom windows above the cabinets bring in natural light when coming in from the garage.
  • Retreat to the owner's suite, which provides a 4-fixture bath and a walk-in closet. Bedrooms 2 and 3 are just off the entryway, and share a full bath.
  • The optional sunroom adds 180 sq ft of living space to the rear of the home.
  • Related Plans: Get alternate versions with house plans 42605DB and 42606DB.

This house plan set has the following details:

  • General Notes

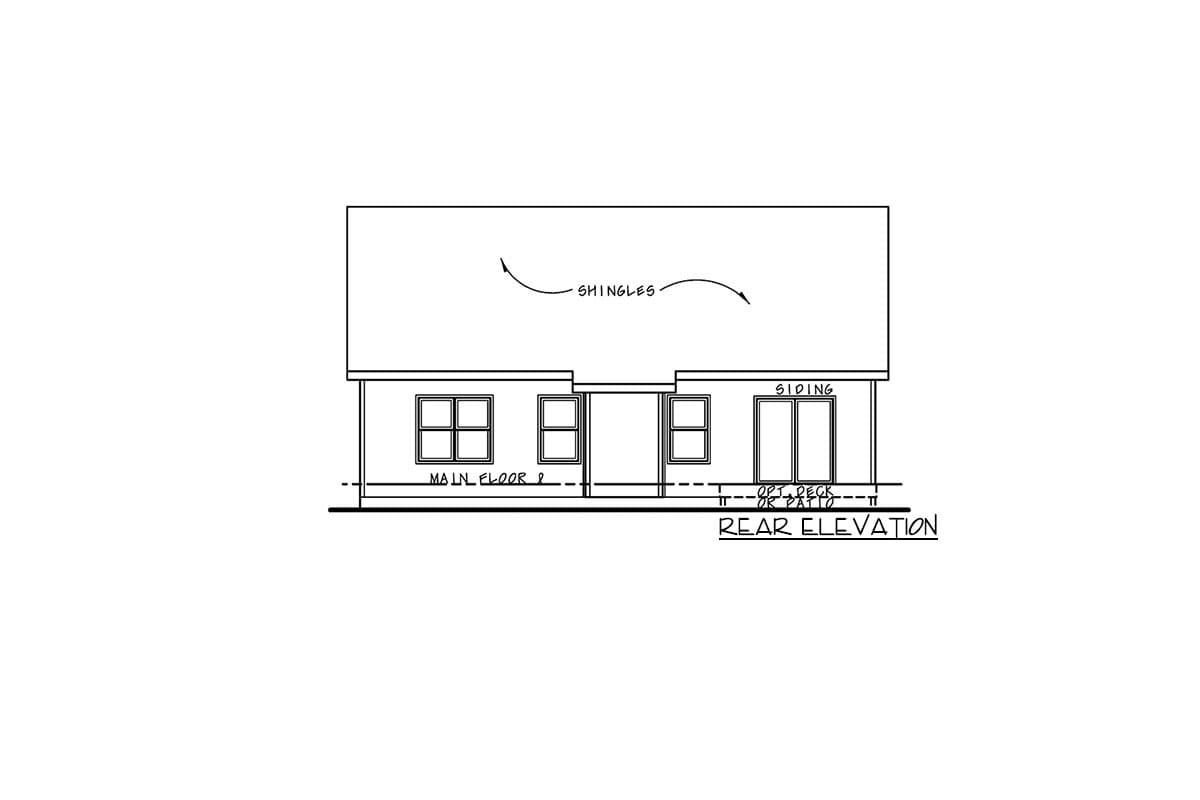

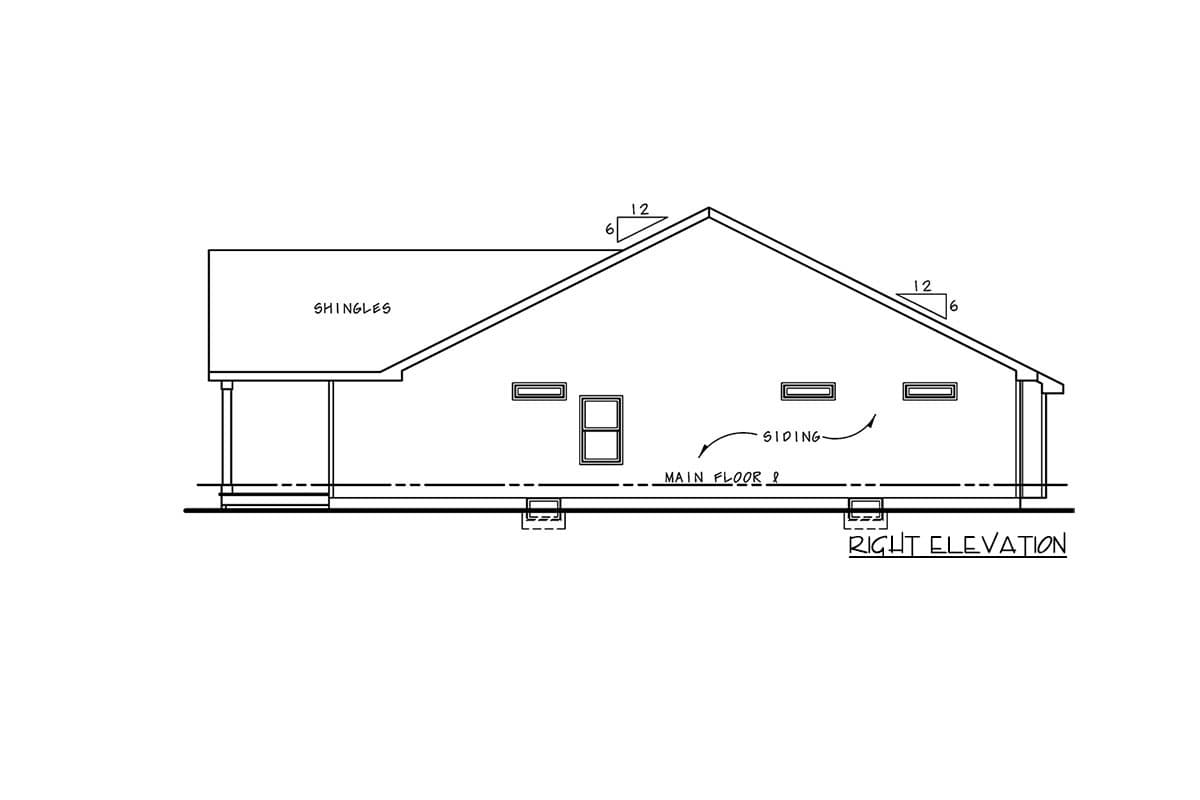

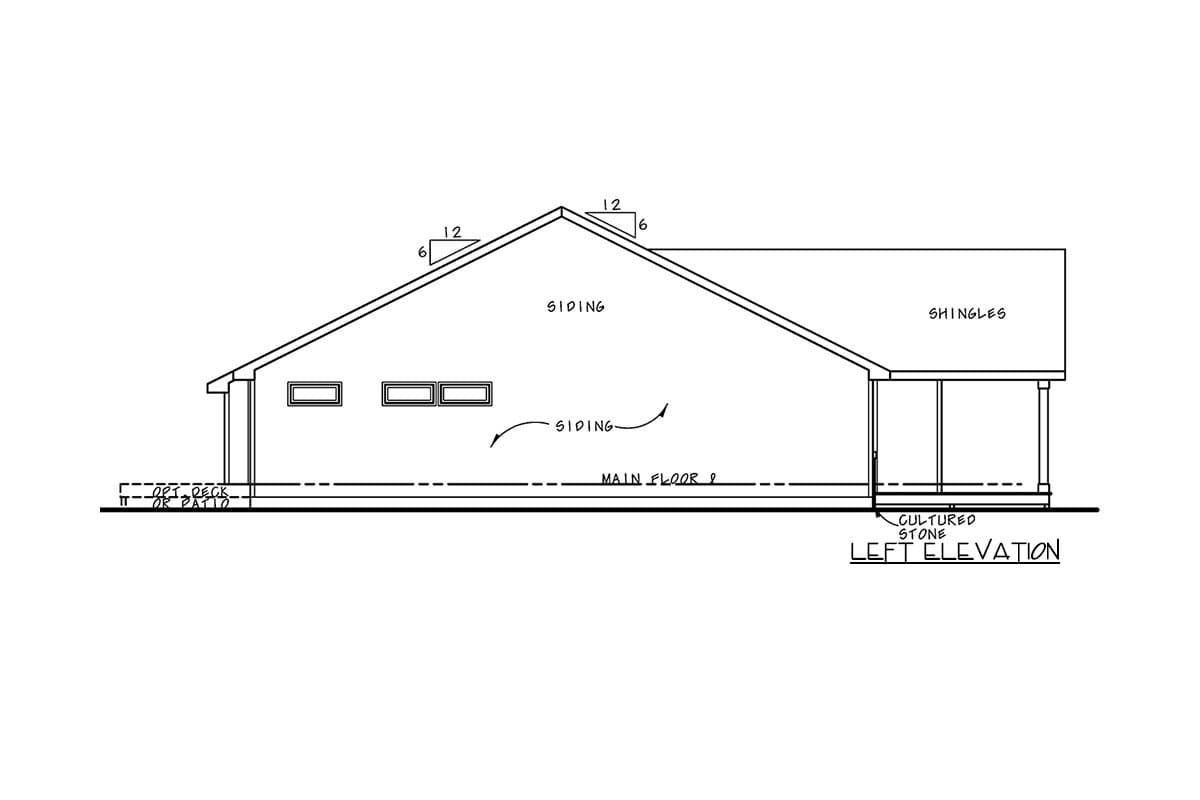

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

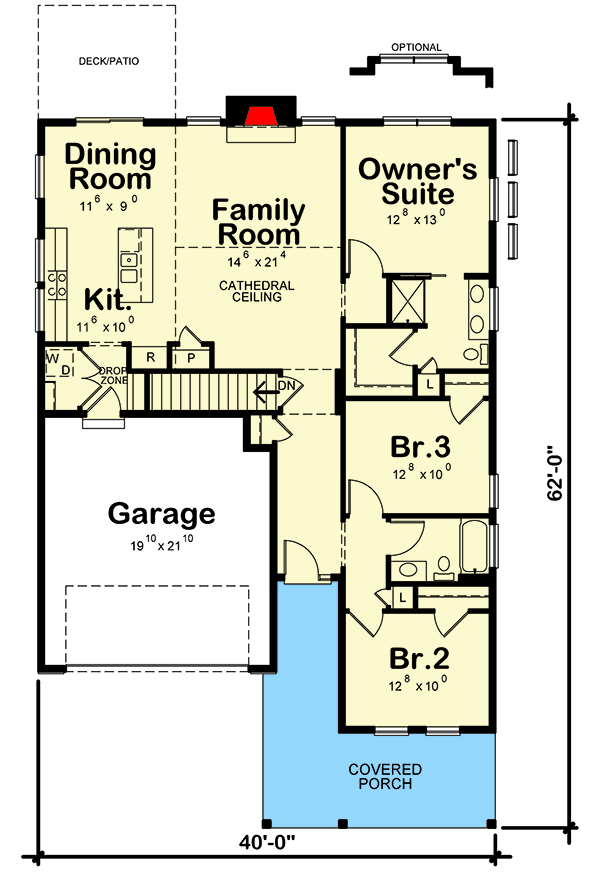

Quaint 3-Bed Home Plan with Cathedral Ceiling - 42636DB floor plan - Main Level

Optional Sunroom (Adds 180 sq. Ft.)

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Quaint 3-Bed Home Plan with Cathedral Ceiling - 42636DB floor plan - Optional Sunroom (Adds 180 sq. Ft.)

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,511 sq. ft.
  • 1st Floor: 1,511 sq. ft.
  • Porch, Front: 249 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 62' 0"
  • Max ridge height: 23' 7"

Garage

  • Type: Attached
  • Area: 451 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Quaint 3-Bed Home Plan with Cathedral Ceiling

  • 1,511

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $650
  • PDF - Single-Build $1,055
  • PDF - Unlimited Build $1,555
  • CAD + PDF - Single-Build $1,740
  • CAD - Unlimited Build $2,240
  • View all purchase option online

About This Plan

  • Quaint and cozy define this 3-bedroom home plan, complete with loads of exterior character and curb appeal.
  • Inside, the heart of the home is located behind the 2-car garage, and features a cathedral ceiling above the family room, with a fireplace anchoring the rear wall.
  • The open eat-in kitchen includes a central island, and sliding doors in the adjoining dining area lead to a back patio. Wide transom windows above the cabinets bring in natural light when coming in from the garage.
  • Retreat to the owner's suite, which provides a 4-fixture bath and a walk-in closet. Bedrooms 2 and 3 are just off the entryway, and share a full bath.
  • The optional sunroom adds 180 sq ft of living space to the rear of the home.
  • Related Plans: Get alternate versions with house plans 42605DB and 42606DB.

Floor Plans

  • Main Level

  • Optional Sunroom (Adds 180 sq. Ft.)

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,511 sq. ft.
  • 1st Floor: 1,511 sq. ft.
  • Porch, Front: 249 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 62' 0"
  • Max ridge height: 23' 7"

Garage

  • Type: Attached
  • Area: 451 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 12 on 12
