Plan 270103AF
2-Bed European-Style Carriage House with Carport - 1139 Sq Ft
Heated S.F.
1,139
Beds
2
Baths
1
Stories
2
Cars
2
Floor Plan

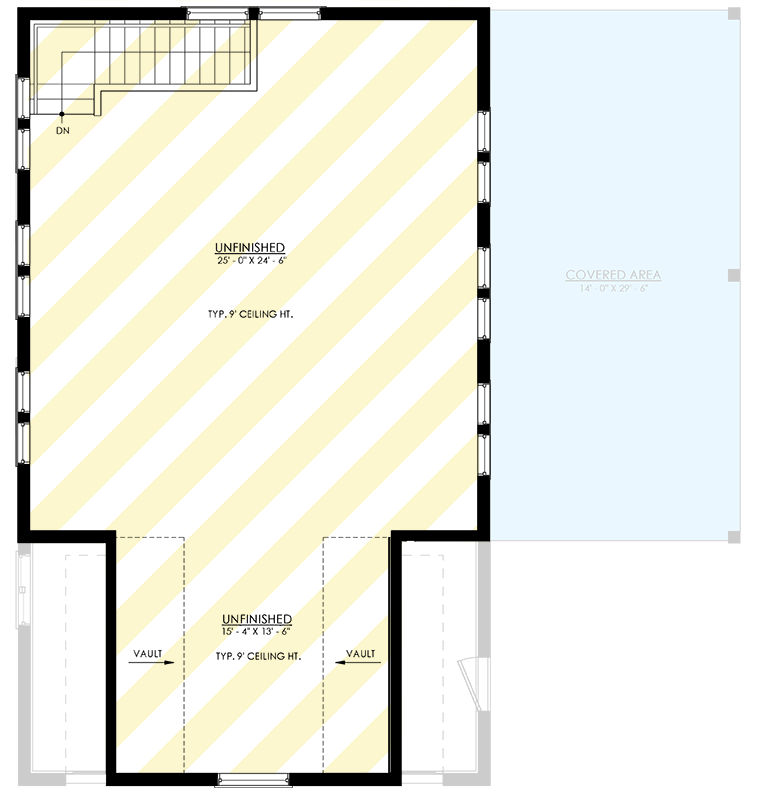

Optional Second Floor Storage Loft
Reverse Floor Plan

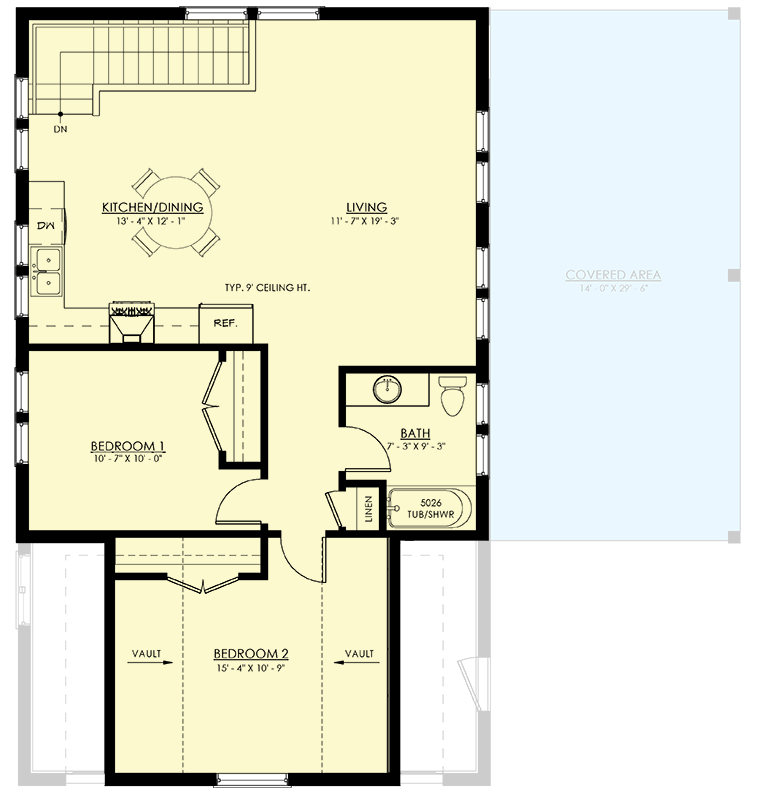

2-Bed European-Style Carriage House with Carport - 1139 Sq Ft - 270103AF floor plan - Optional Second Floor Storage Loft
Plan Details
  • This 2 bed, 1 bath carriage plan gives you 1,139 square feet of heated living or alternatively, you can leave the second floor open and use the space for storage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Foundation Plan
  • Floor Plan(s) with Door and Window Opening Sizes
  • Roof Plan showing pitches, valleys, ridges
  • Exterior Elevations
  • Building Section
  • Typical Construction Details/Sections

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Plumbing & Electrical plans
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Framing - layouts with beam sizes and locations
  • Renderings, photography, or marketing imagery
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Bed European-Style Carriage House with Carport - 1139 Sq Ft

  • 1,139

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

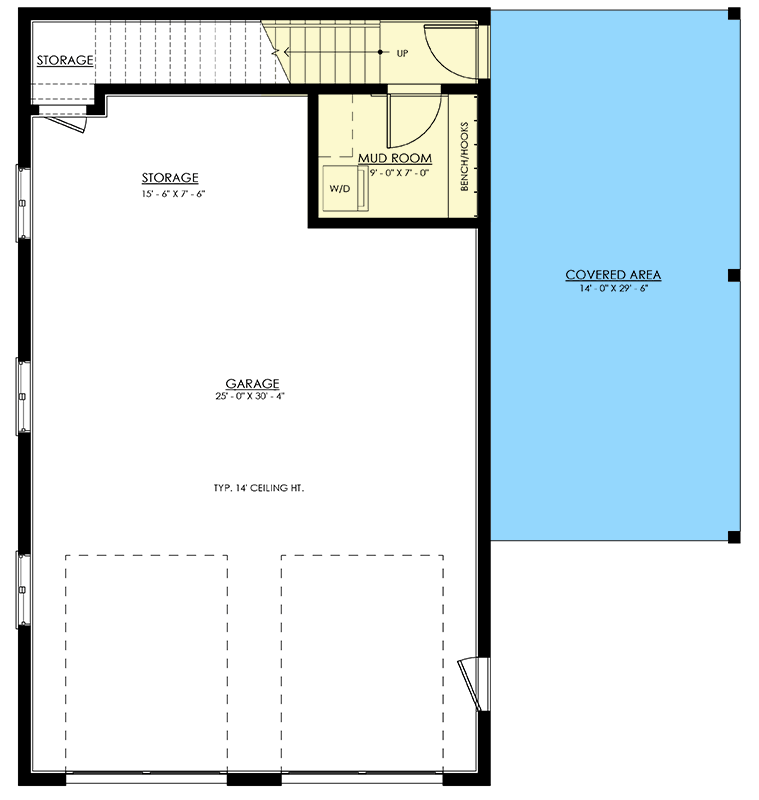

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Second Floor Storage Loft

Plan Details

Square Footage Breakdown

  • Total: 1,139 sq. ft.
  • 1st Floor: 201 sq. ft.
  • 2nd Floor: 938 sq. ft.
  • option covered: 433 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 43' 0"
  • Max ridge height: 31' 10"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 904 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 14' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
