Plan 72282DA 2-Bed House Plan with Vaulted Hexagonal Great Room

2,236 2 2.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2-Bed House Plan with Vaulted Hexagonal Great Room

Plan 72282DA

  • 2,236

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • Panoramic views can be seen from every major room in this contemporary 2-bed house plan. A wide wrap-around patio spans the rear of this Craftsman home plan.
  • The vaulted hexagonal great room at the core of the home has loads of windows, a fireplace, and is open to a kitchen which gives you lots of counter space and storage.
  • The owner’s suite on the left side of the home is well separated from the other bedroom and boasts a large walk-in closet and private bathroom that offers accessibility features such as handbars, 30" turning radius near the curbless shower.
  • The second bedroom is part of the right wing and its shared bathroom is also accessible with a 30" radius and options for handbars if desired.
  • The attached 2 car garage can access either a side hallway or the mud room which offers plenty of space for storing gear while offering a shower for either cleaning up after a day of gardening or working on cars.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations

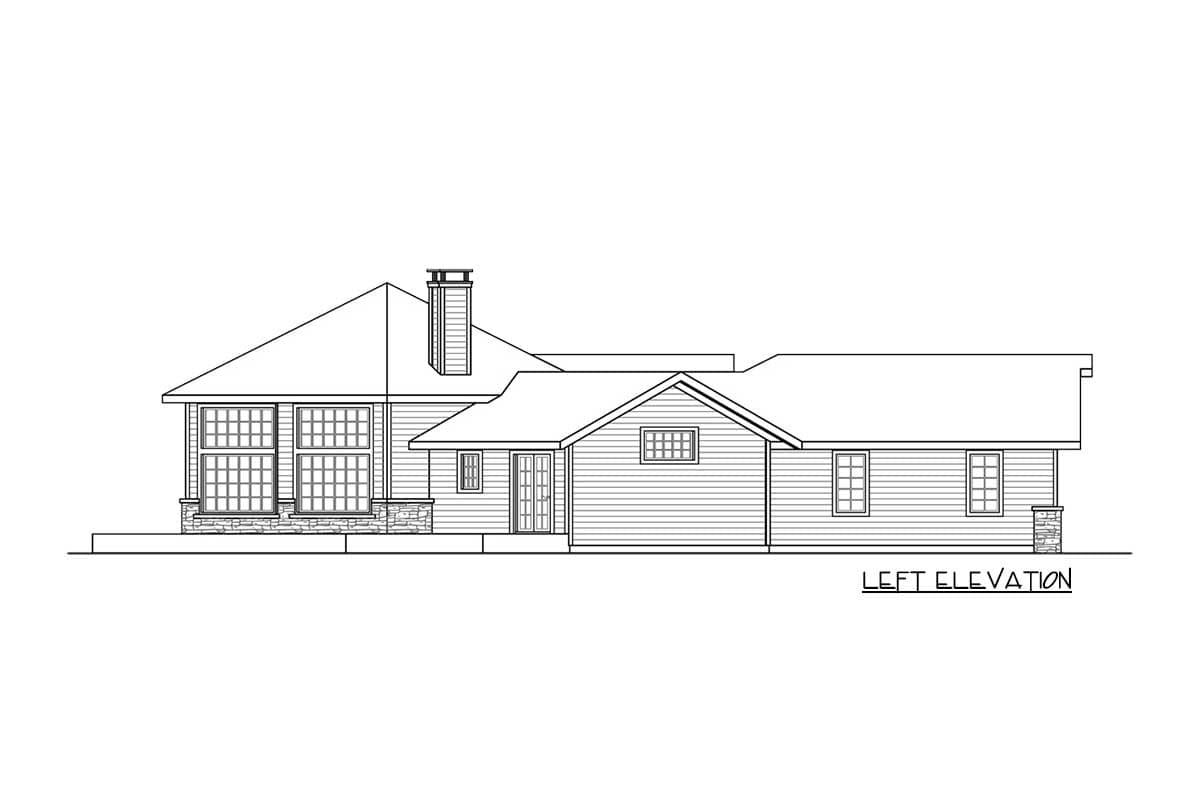

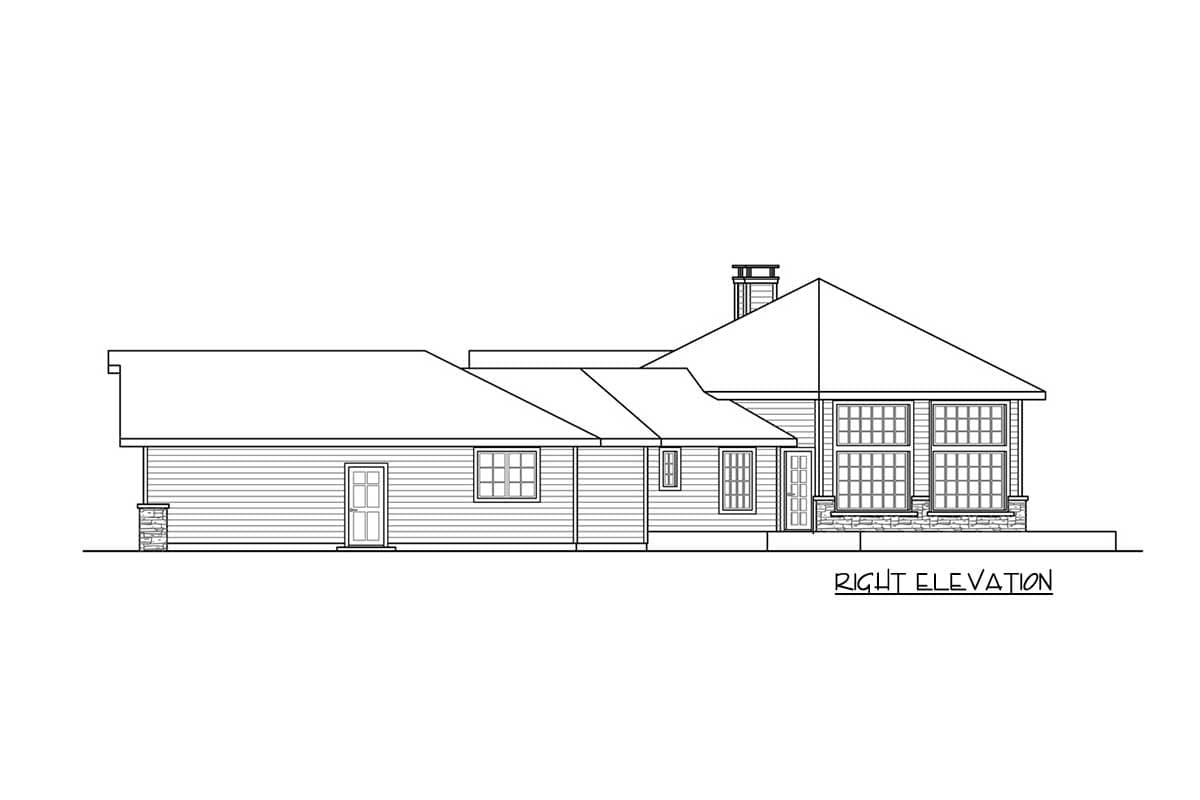

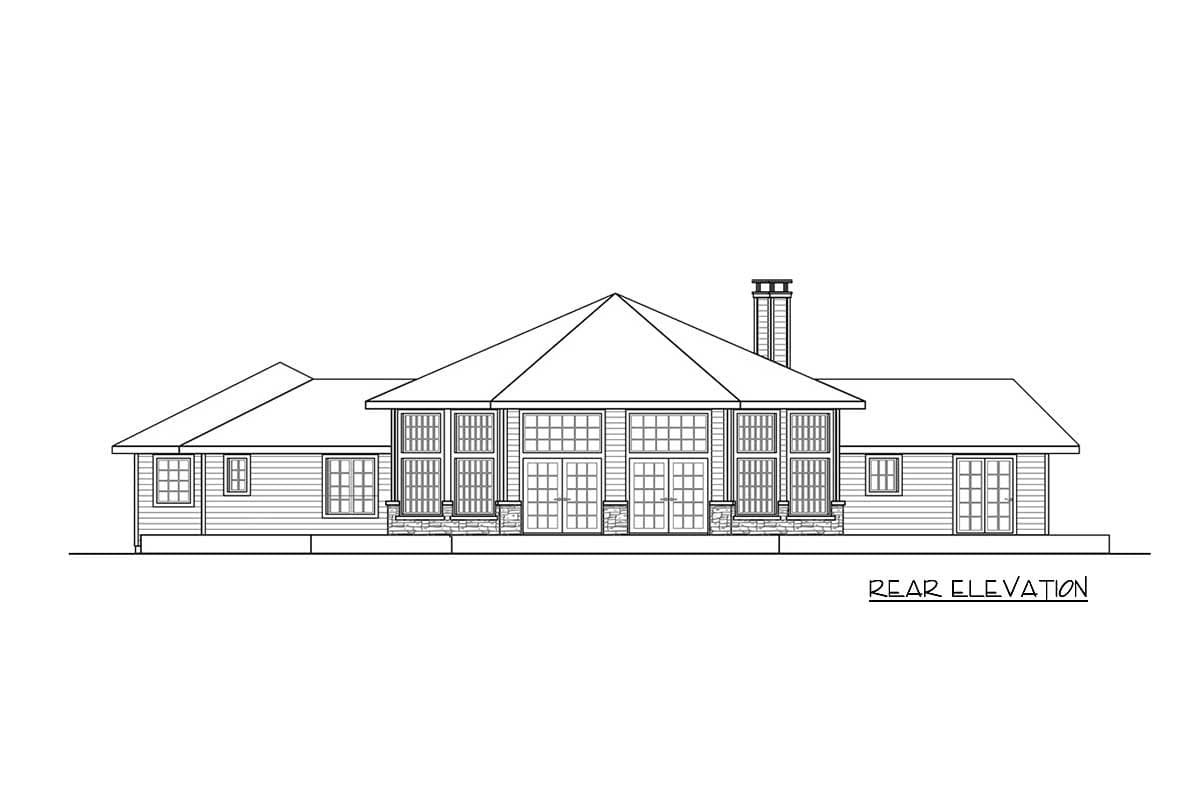

Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan

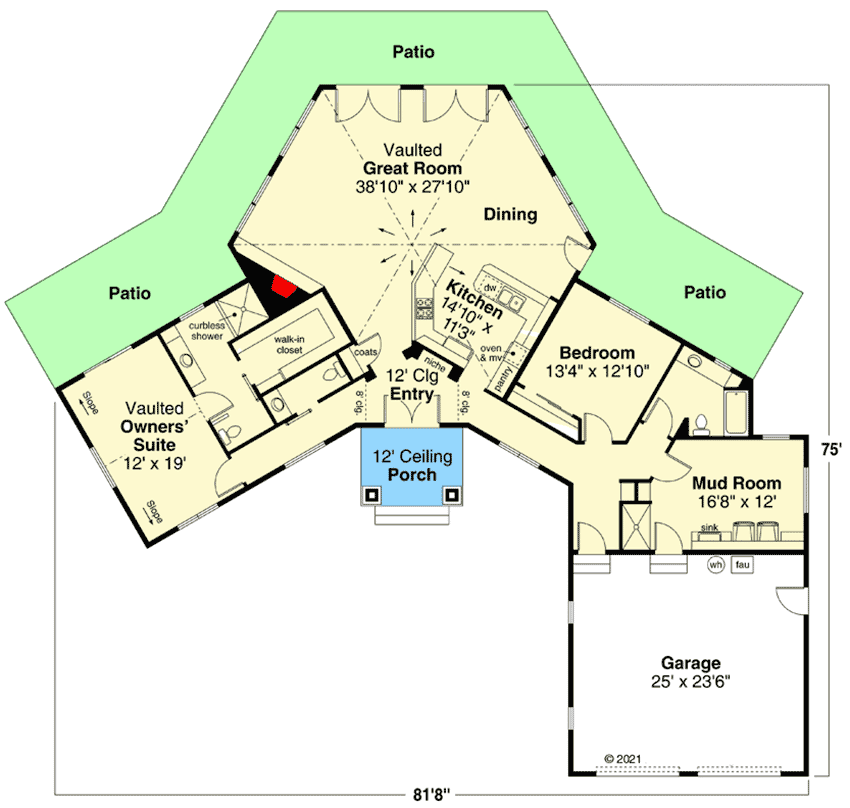

Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Bed House Plan with Vaulted Hexagonal Great Room - 72282DA floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,236 sq. ft.
  • 1st Floor: 2,236 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 8"
  • Depth: 75' 0"
  • Max ridge height: 23' 3"

Garage

  • Type: Attached
  • Area: 624 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

2-Bed House Plan with Vaulted Hexagonal Great Room

  • 2,236

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $745
  • PDF Light $975
  • 5 Sets + PDF $1,194
  • PDF - Single-Build $1,955
  • CAD - Single-Build $2,095
  • CAD - Unlimited Build $2,345
  • View all purchase option online

About This Plan

  • Panoramic views can be seen from every major room in this contemporary 2-bed house plan. A wide wrap-around patio spans the rear of this Craftsman home plan.
  • The vaulted hexagonal great room at the core of the home has loads of windows, a fireplace, and is open to a kitchen which gives you lots of counter space and storage.
  • The owner’s suite on the left side of the home is well separated from the other bedroom and boasts a large walk-in closet and private bathroom that offers accessibility features such as handbars, 30" turning radius near the curbless shower.
  • The second bedroom is part of the right wing and its shared bathroom is also accessible with a 30" radius and options for handbars if desired.
  • The attached 2 car garage can access either a side hallway or the mud room which offers plenty of space for storing gear while offering a shower for either cleaning up after a day of gardening or working on cars.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,236 sq. ft.
  • 1st Floor: 2,236 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 81' 8"
  • Depth: 75' 0"
  • Max ridge height: 23' 3"

Garage

  • Type: Attached
  • Area: 624 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick And Truss
