2-Bed Modern House Plan on a Basement

Plan 80925PM

  • 1,081

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • Stone and natural wood materials add texture to the front elevation of this contemporary, 2-bedroom modern house plan.
  • One side of the home provides your open-concept, main living space. A large island in the kitchen offers seating for casual meals, and sliding doors allow outdoor access and increase natural light.
  • A bedroom, nestled just off the foyer, offers a large walk-in closet and sizable window.
  • The second bedroom is located between the laundry room and a 4-fixture bathroom, with an oversized sink and separate tub and shower.

Plan sets include the following:

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

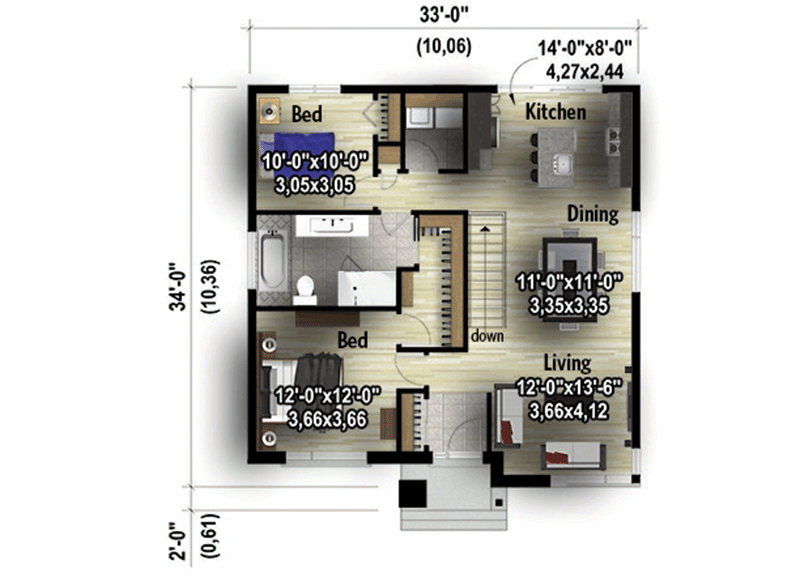

2-Bed Modern House Plan on a Basement - 80925PM floor plan - Main Level
