Plan 70510SND

2 Bed Modern with Upstairs Sleeping Loft - 1911 Sq Ft

Heated S.F.
1,911
Beds
2
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 70510SND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 70510SND

M-F 9am-5pm EST |

1-203-761-8500

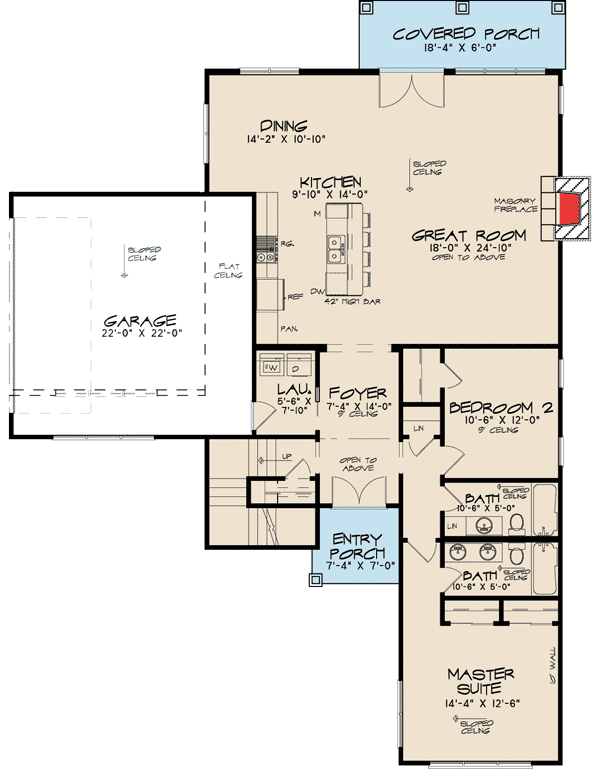

Main Level

Plan 70510SND: 2 Bed Modern with Upstairs Sleeping Loft - 1911 Sq Ft - Floor Plan - Main Level - Contemporary, Mid Century Modern, Modern

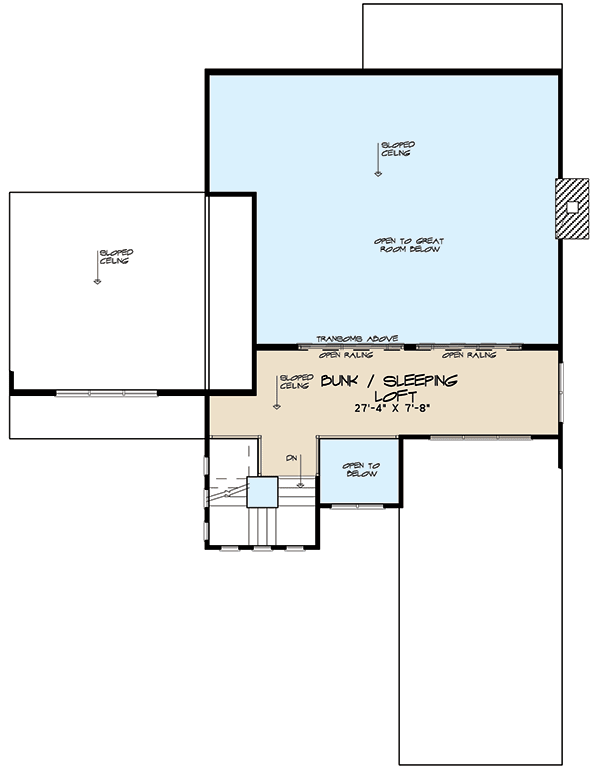

2nd Floor

Plan 70510SND: 2 Bed Modern with Upstairs Sleeping Loft - 1911 Sq Ft - Floor Plan - 2nd Floor - Contemporary, Mid Century Modern, Modern

Plan Details

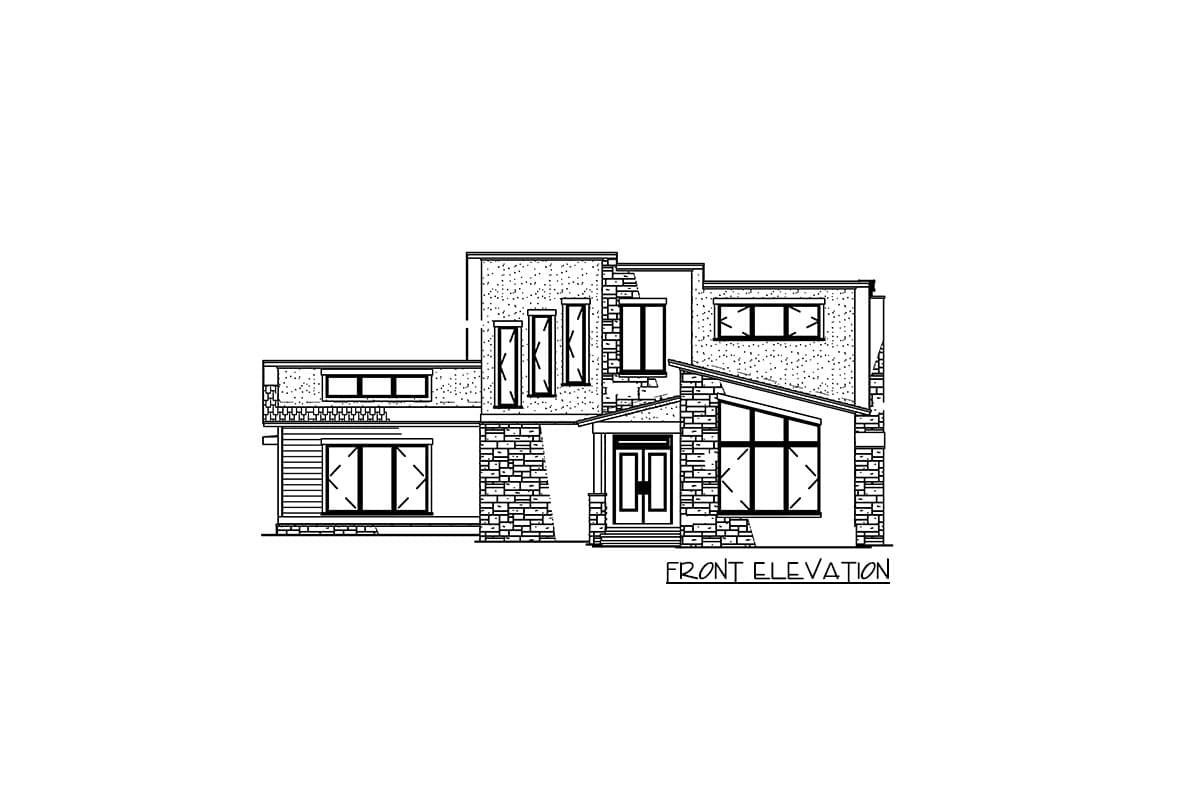

  • This modern style house plan features beautiful stone and windows all along the front.
  • The foyer leads to the large open great room with a fireplace and kitchen that features an eat-at island bar and the dining area is open to both rooms.
  • The great room has 2-story ceilings and access to the rear covered porch.
  • The master suite is located at the front corner of the home with another bedroom down the hall.
  • Upstairs you'll find a bunk/sleeping loft that over looks the foyer on one side and the great room on the other.
  • The roof is stick framed with a 3:12 pitch.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,911 sq. ft.

1st Floor

1,624 sq. ft.

2nd Floor

287 sq. ft.

Porch, Combined

163 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 10"

Depth

70' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

503 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,911 sq. ft.

1st Floor

1,624 sq. ft.

2nd Floor

287 sq. ft.

Porch, Combined

163 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 10"

Depth

70' 0"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

503 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Contemporary

Mid Century Modern

Modern

Special Features

Bedrooms - Clustered

Laundry - Main Level

Loft

Master Suite - 1st Floor

Two Story Great Room
