Plan 12965KN 2-Bed Rustic Retreat with 1-Car Garage

1,065 2 2 1 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

2-Bed Rustic Retreat with 1-Car Garage

Plan 12965KN

  • 1,065

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 1

    Cars

  • An 8'-deep front porch welcomes you to this 2-bed rustic retreat. Timber accents and exposed rafter tails add to the rustic charm.
  • The front portion of the home is vaulted, open concept, and filled with natural light from the abundant windows.
  • Two bedrooms are tucked in the back and surprisingly each have their own baths.
  • Mechanicals are cleverly placed in a dedicated section at the back of the 1-car garage.
  • Related Plans: Lose the garage and get a wraparound porch with house plan 12964KN. Get a smaller version with house plan 11534KN.
  • NOTE: Please allow 10-15 business days for delivery

Floor plans at ¼" scale

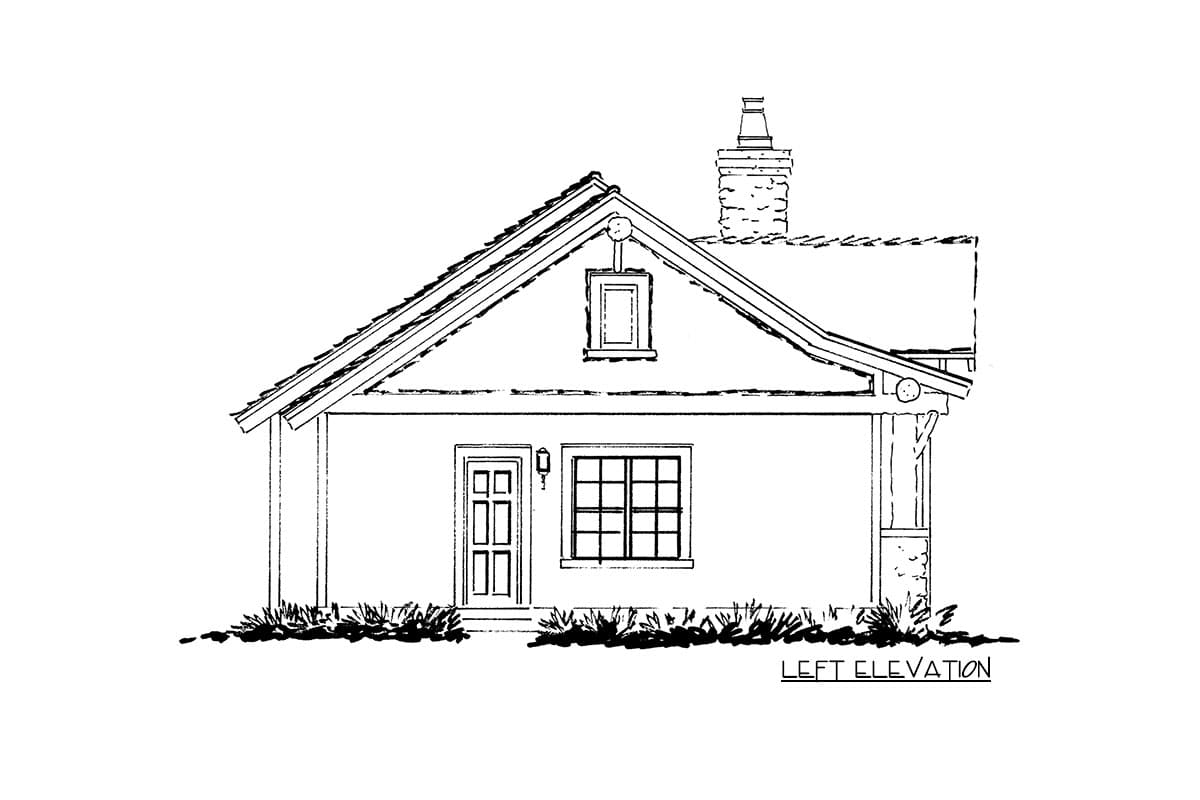

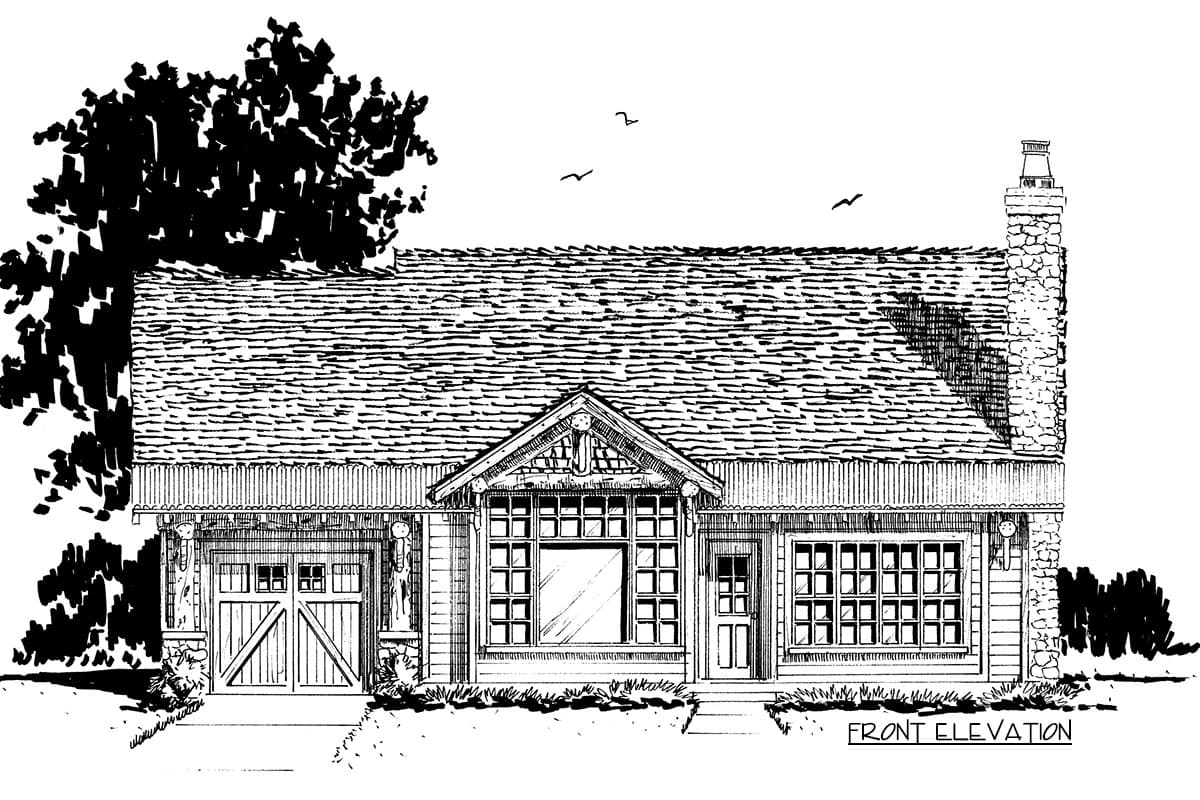

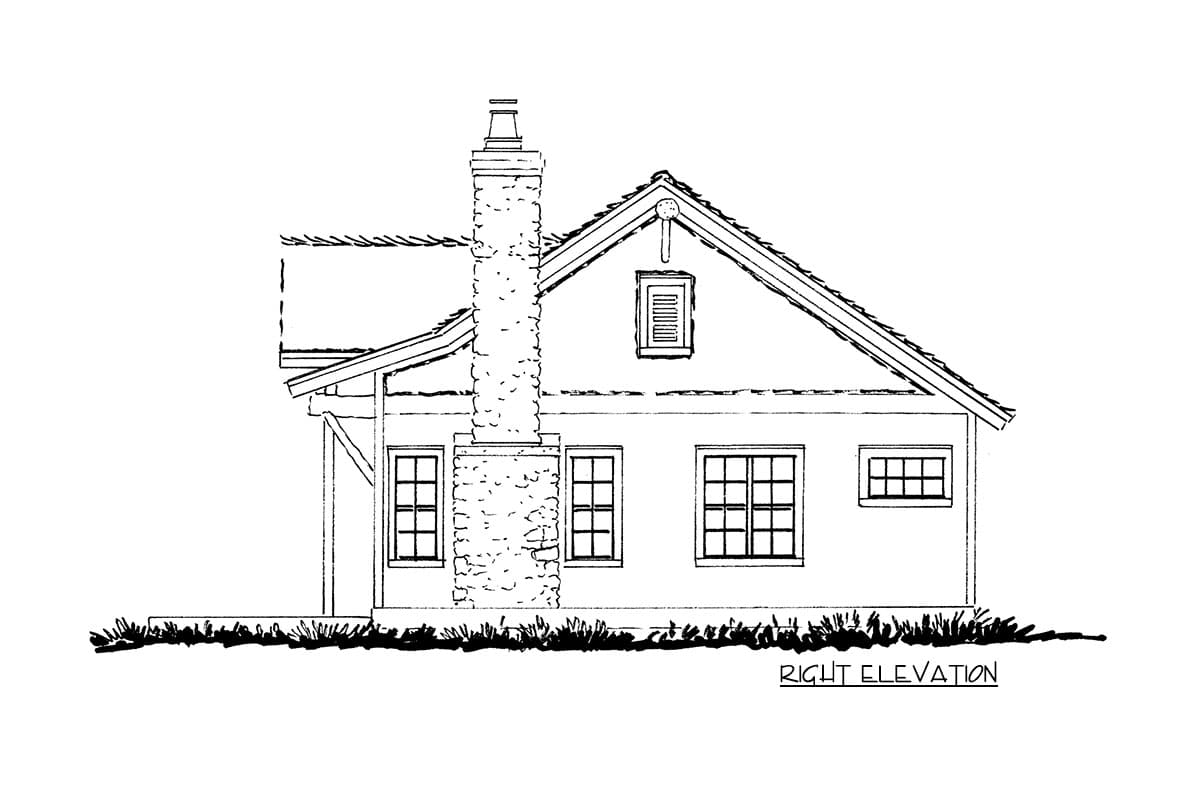

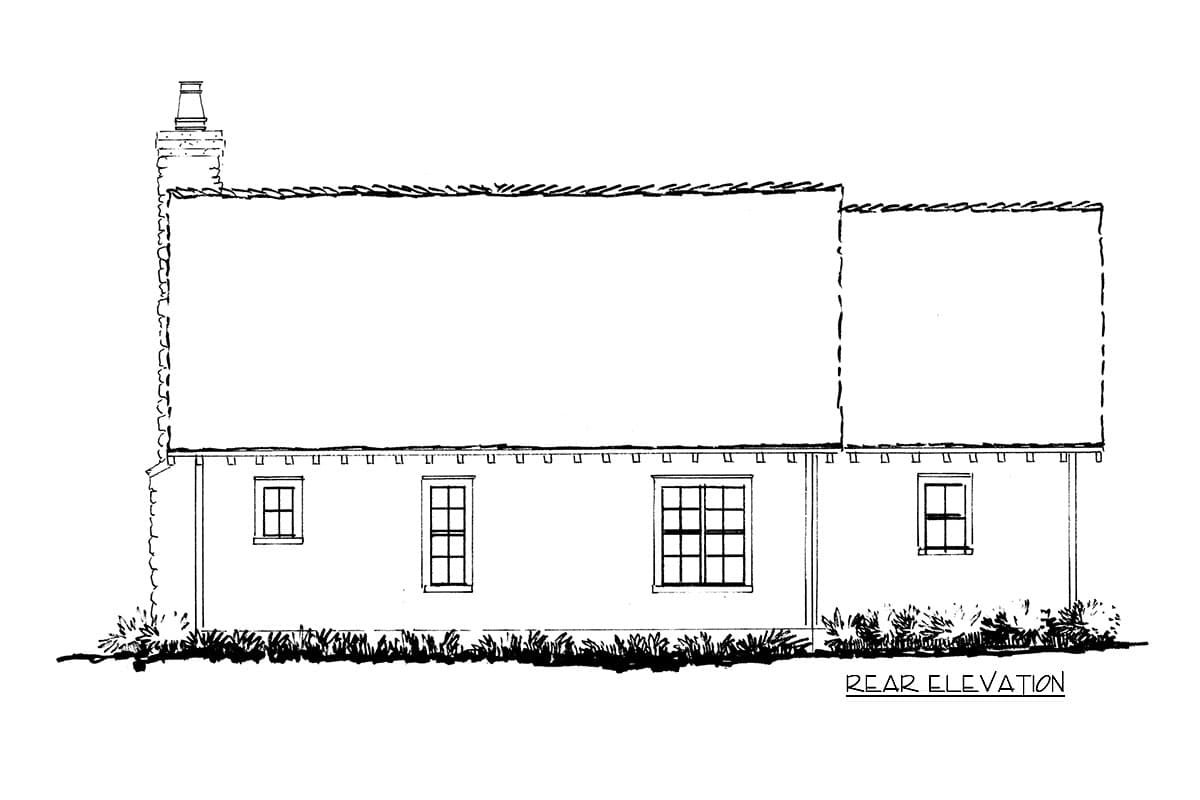

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

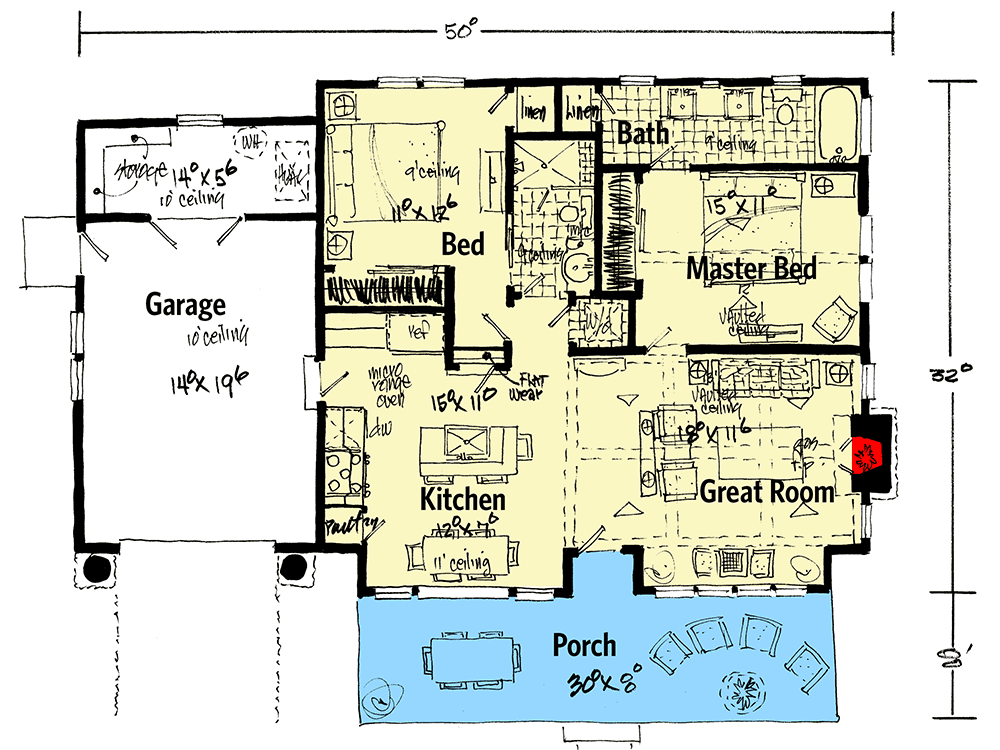

2-Bed Rustic Retreat with 1-Car Garage - 12965KN floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,065 sq. ft.
  • 1st Floor: 1,065 sq. ft.
  • Porch, Combined: 631 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 44' 0"
  • Max ridge height: 20' 7"

Garage

  • Type: Attached
  • Area: 280 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Architectural Style

Special features

2-Bed Rustic Retreat with 1-Car Garage

  • 1,065

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,575
  • CAD - Single-Build $2,250
  • View all purchase option online

About This Plan

  • An 8'-deep front porch welcomes you to this 2-bed rustic retreat. Timber accents and exposed rafter tails add to the rustic charm.
  • The front portion of the home is vaulted, open concept, and filled with natural light from the abundant windows.
  • Two bedrooms are tucked in the back and surprisingly each have their own baths.
  • Mechanicals are cleverly placed in a dedicated section at the back of the 1-car garage.
  • Related Plans: Lose the garage and get a wraparound porch with house plan 12964KN. Get a smaller version with house plan 11534KN.
  • NOTE: Please allow 10-15 business days for delivery

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,065 sq. ft.
  • 1st Floor: 1,065 sq. ft.
  • Porch, Combined: 631 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 44' 0"
  • Max ridge height: 20' 7"

Garage

  • Type: Attached
  • Area: 280 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front
