Weekend Mountain Escape

Plan 11534KN

  • 324

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • 1

    Cars

  • This rustic house plan is perfect for a weekend mountain escape. Log siding gives this a rugged feel. It is designed for conventional 2x6 framing.
  • The front of the home is a vaulted open space with a functional kitchen and sitting area. You get lots of natural light from the windows in front.
  • A bedroom with bath and shower are tucked in the back.
  • Enjoy the outdoors under the roof of your own vaulted covered porch with stone footings.
  • Use the garage for your car or for extra storage.
  • Related Plans: Eliminate the garage with house plans 12964KN (1,065 sq. ft.) and 11529KN (681 sq. ft.).

Floor plans at ¼" scale

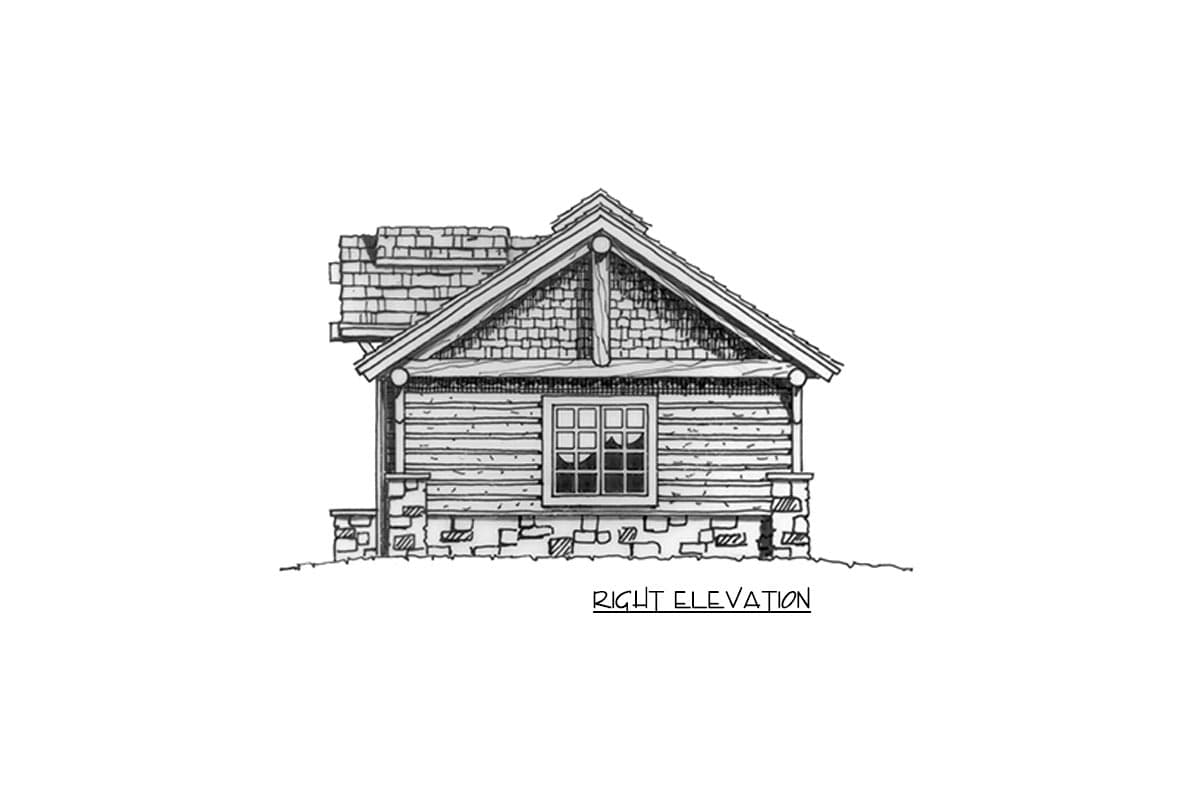

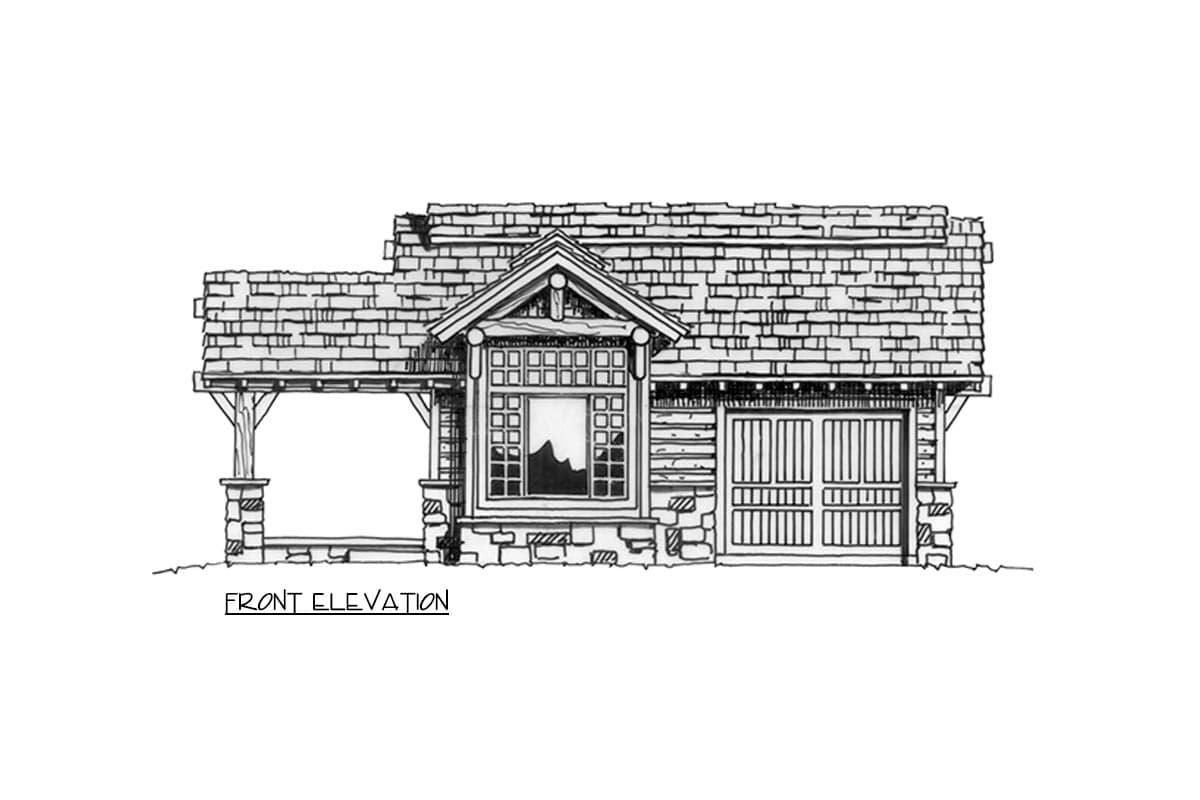

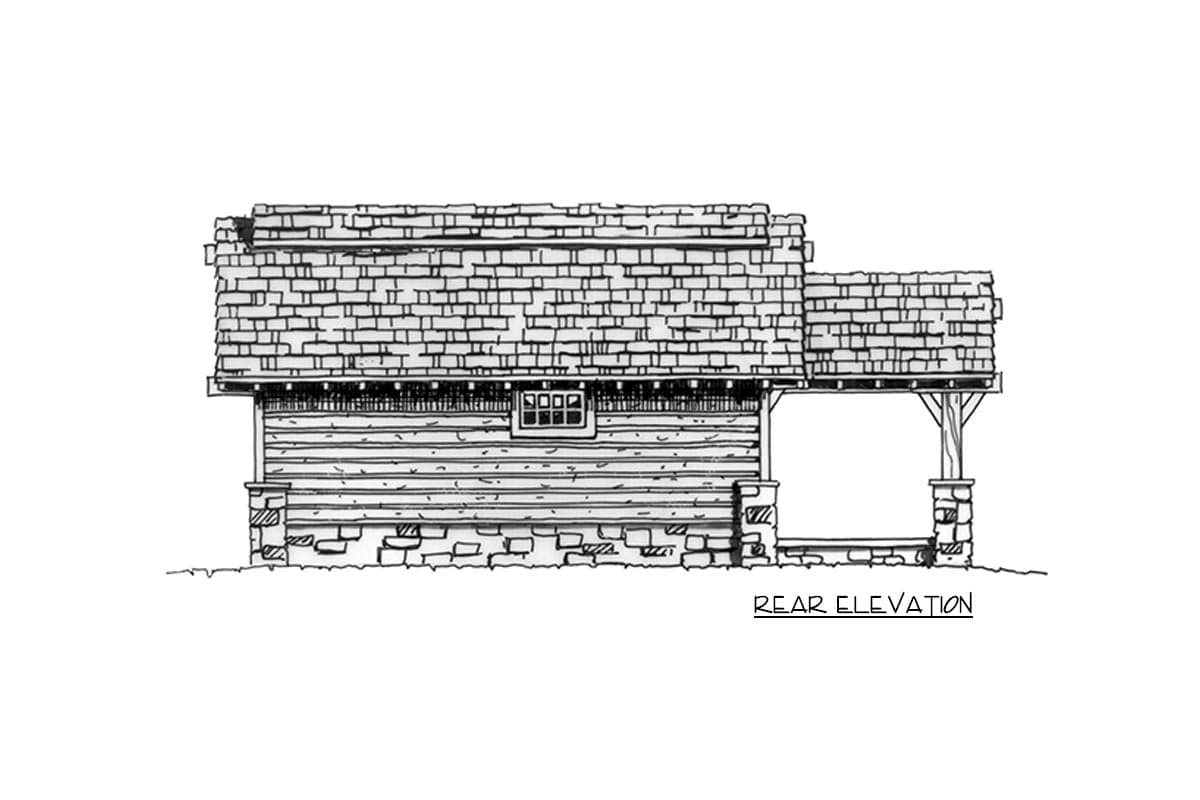

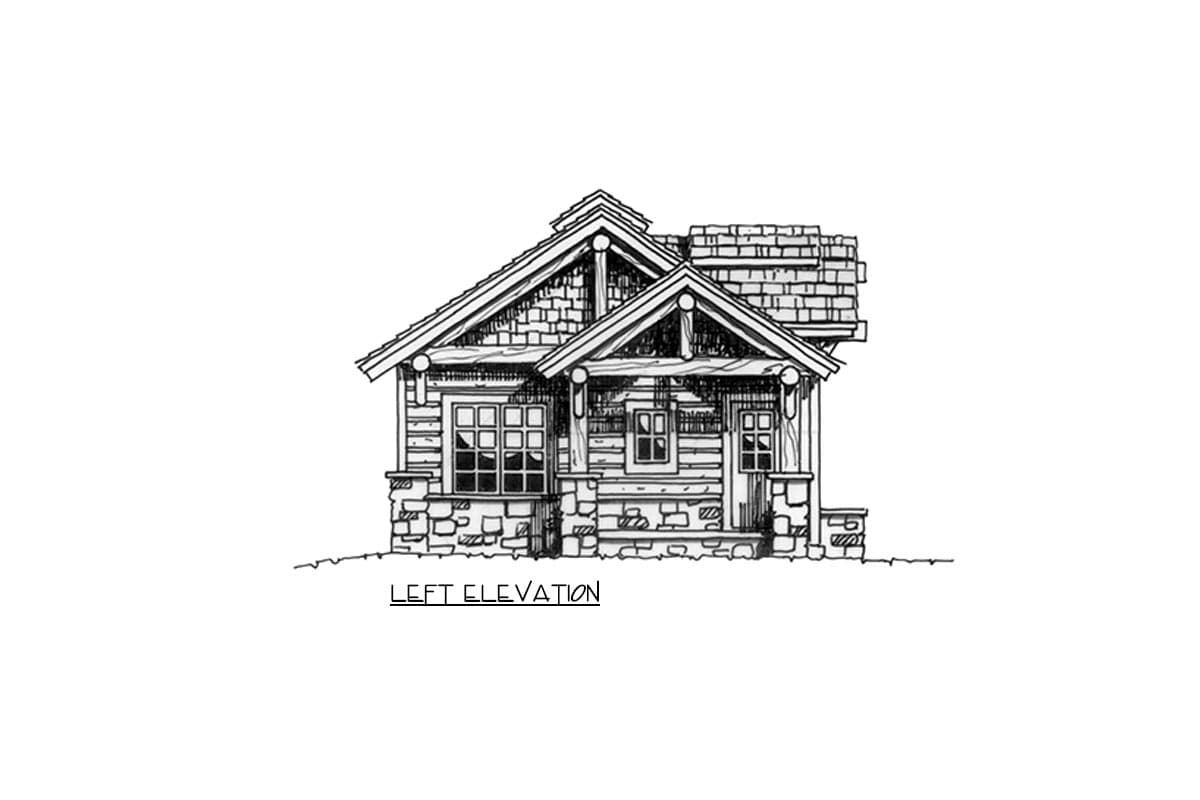

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

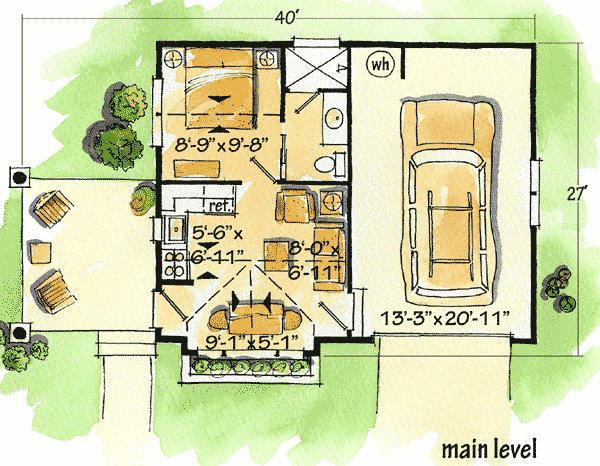

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Weekend Mountain Escape - 11534KN floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 324 sq. ft.
  • 1st Floor: 324 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 27' 0"
  • Max ridge height: 18' 10"

Garage

  • Type: Attached
  • Area: 301 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Weekend Mountain Escape

  • 324

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

Buy This Plan
  • PDF - Single-Build $1,225
  • CAD - Single-Build $2,000
  • View all purchase option online

About This Plan

  • This rustic house plan is perfect for a weekend mountain escape. Log siding gives this a rugged feel. It is designed for conventional 2x6 framing.
  • The front of the home is a vaulted open space with a functional kitchen and sitting area. You get lots of natural light from the windows in front.
  • A bedroom with bath and shower are tucked in the back.
  • Enjoy the outdoors under the roof of your own vaulted covered porch with stone footings.
  • Use the garage for your car or for extra storage.
  • Related Plans: Eliminate the garage with house plans 12964KN (1,065 sq. ft.) and 11529KN (681 sq. ft.).
