Rustic Retreat with Timber Accents

Plan 12964KN

  • 1,065

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • An L-shaped porch wraps around the front of this 2-bed rustic retreat. Timber accents and exposed rafter tails add to the rustic charm.
  • The front portion of the home is vaulted, open concept, and filled with natural light from the abundant windows.
  • Two bedrooms are tucked in the back and surprisingly each have their own baths.
  • Mechanicals are cleverly handled in a dedicated storage area at the end of the porch.
  • Related Plans: Get more room with house plan and 12973KN (1,755 sq. ft.). Replace the covered deck with a garage with house plan 12965KN. Get a smaller version with house plan 11529KN.

Floor plans at ¼" scale

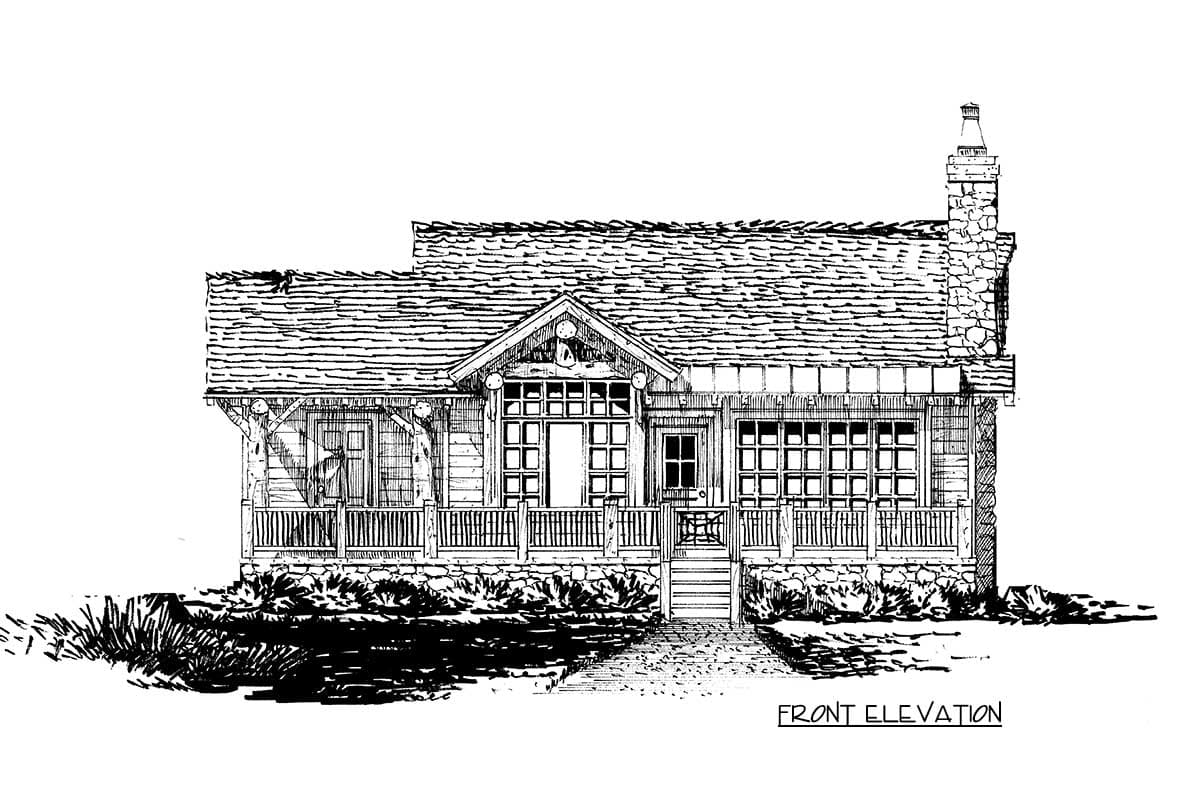

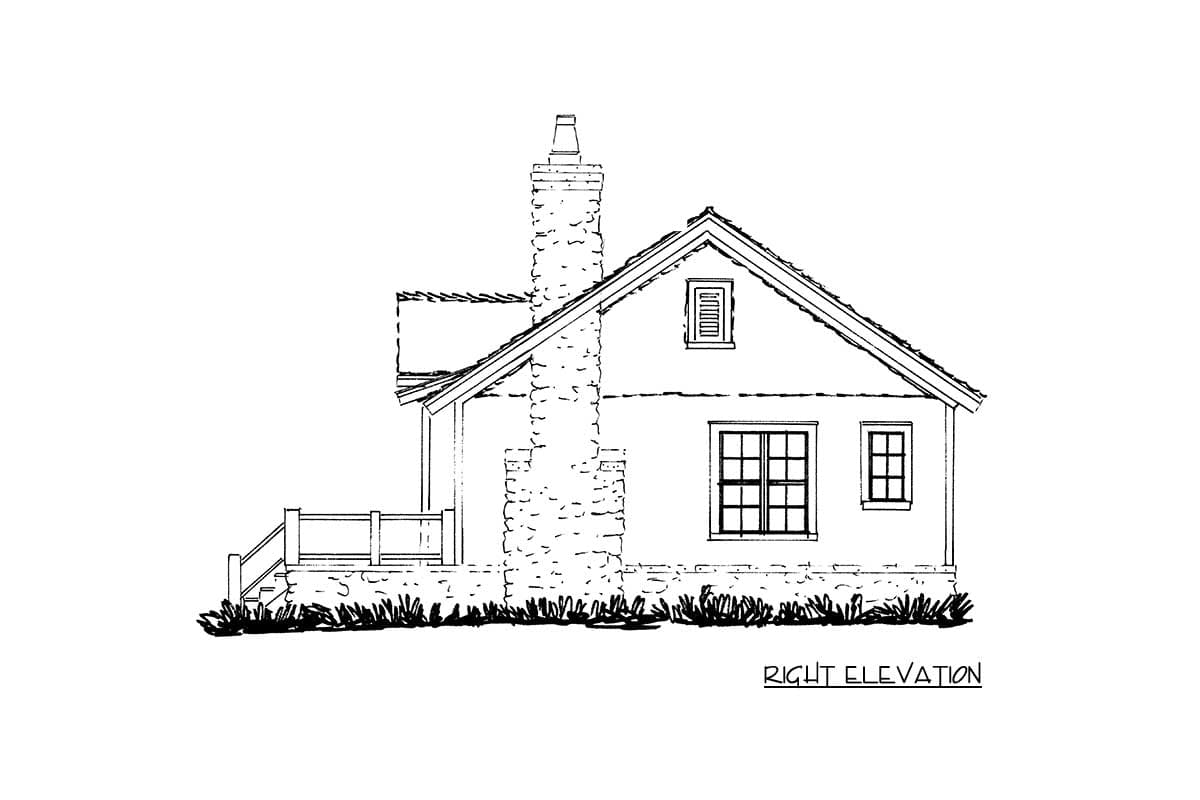

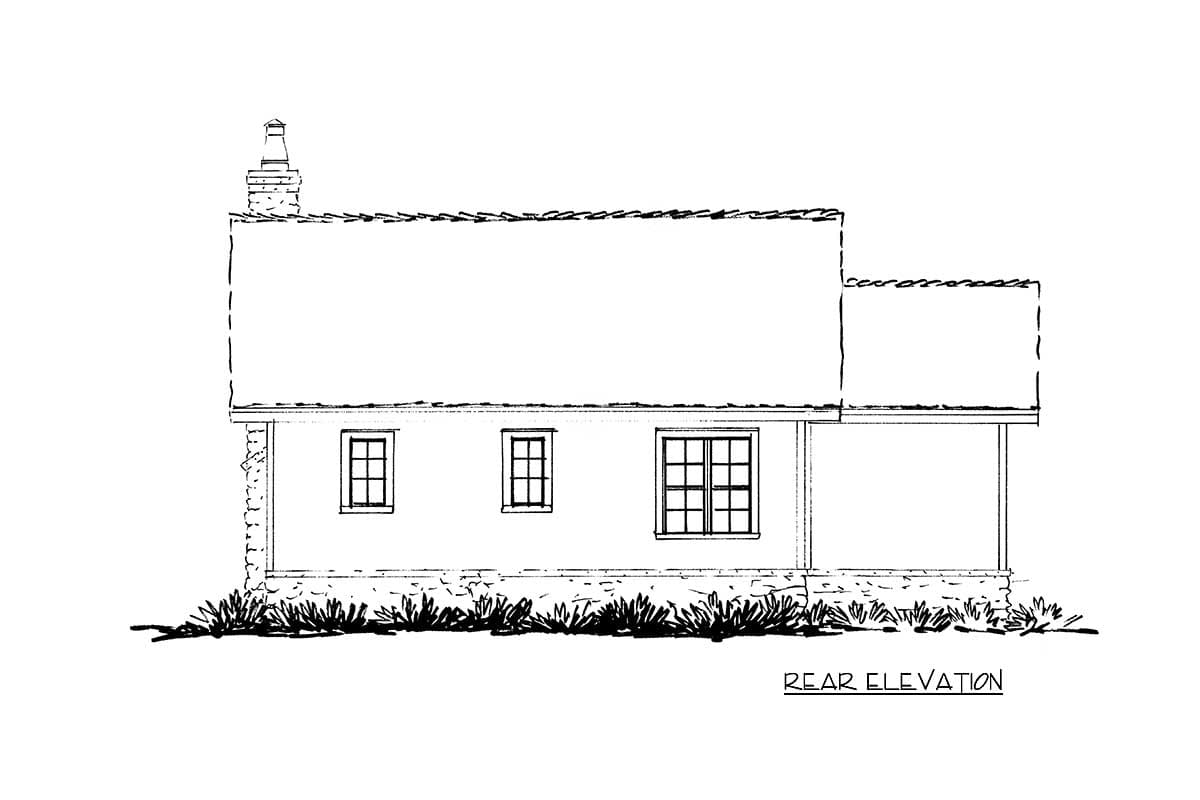

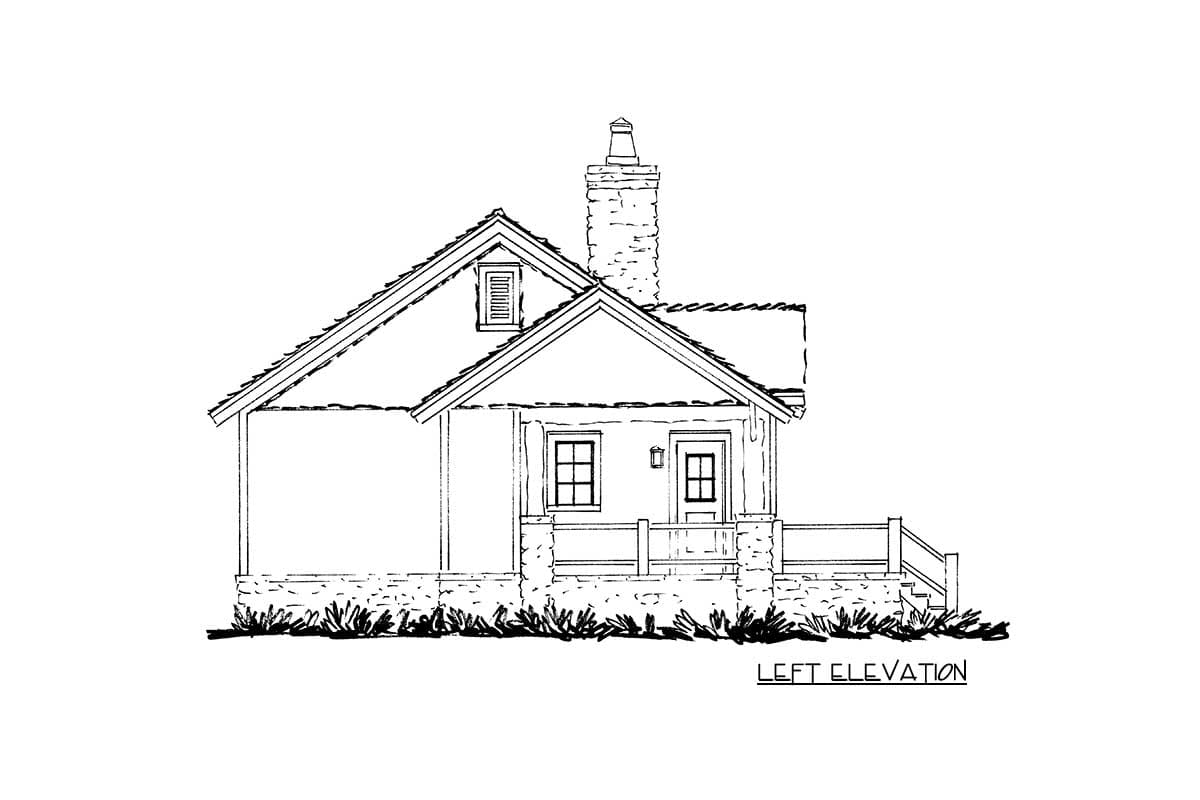

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

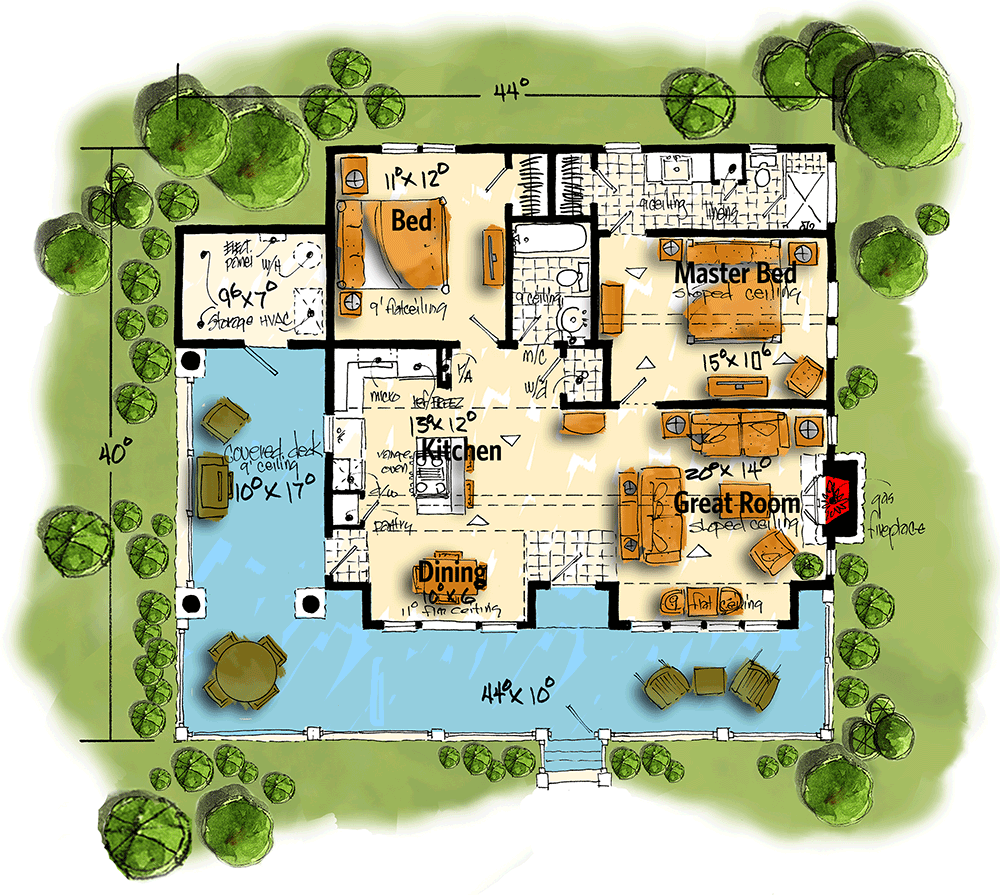

Rustic Retreat with Timber Accents - 12964KN floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,065 sq. ft.
  • 1st Floor: 1,065 sq. ft.
  • Porch, Combined: 631 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 32' 0"
  • Depth: 44' 0"
  • Max ridge height: 20' 6"

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Rustic Retreat with Timber Accents

  • 1,065

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,575
  • CAD - Single-Build $2,250
  • View all purchase option online

About This Plan

  • An L-shaped porch wraps around the front of this 2-bed rustic retreat. Timber accents and exposed rafter tails add to the rustic charm.
  • The front portion of the home is vaulted, open concept, and filled with natural light from the abundant windows.
  • Two bedrooms are tucked in the back and surprisingly each have their own baths.
  • Mechanicals are cleverly handled in a dedicated storage area at the end of the porch.
  • Related Plans: Get more room with house plan and 12973KN (1,755 sq. ft.). Replace the covered deck with a garage with house plan 12965KN. Get a smaller version with house plan 11529KN.
