2 Bed Split Ranch House Plan with Vaulted and Beamed Center - 1392 Sq Ft

Heated S.F.
1,392
Beds
2
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 680228VR

Main Level
Main Level

Plan 680228VR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 680228VR: 2 Bed Split Ranch House Plan with Vaulted and Beamed Center - 1392 Sq Ft - Floor Plan - Main Level - Mountain, Ranch

Plan Details

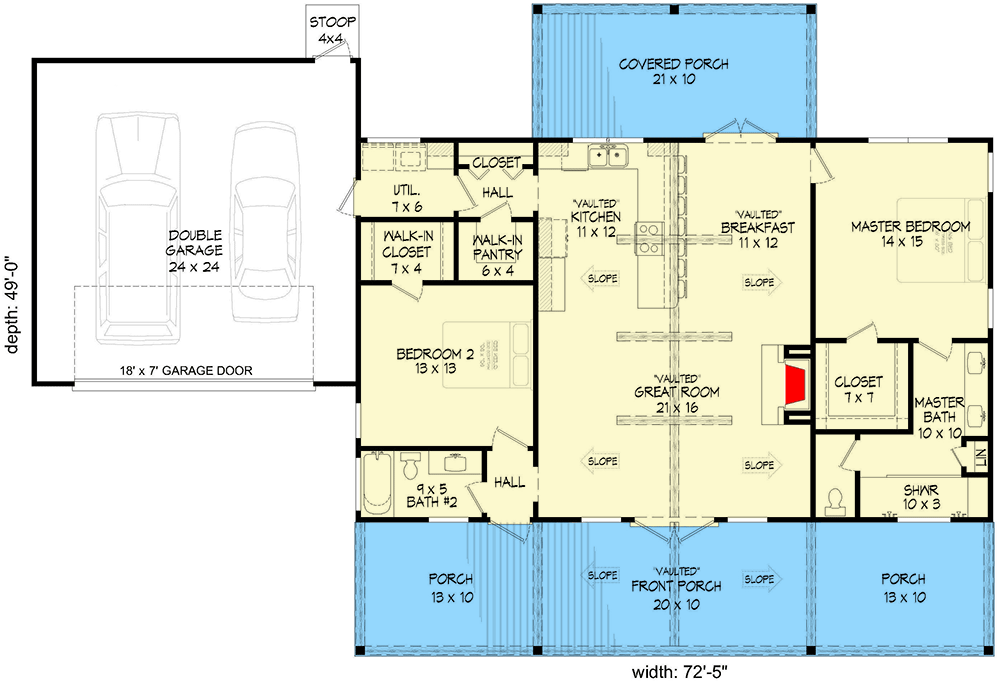

  • This 2 bed, 2 bath ranch house plan gives you 1,392 square feet of heated living space and a 2-car 607 square foot garage.
  • A split bedroom layout places the bedrooms at either end of the home, leaving the vaulted-and-beamed center portion open for entertaining.
  • The center space has a great room with fireplace in front and a kitchen and dining area in back. The kitchen has a long peninsula with loads of seating a double sink looking out across the back covered porch.
  • Covered porches in front - 10' deep in front and back - combine to give you 693 square feet of fresh air space to enjoy.
  • A 2-car front-load garage has a 18' by 7' overhead door and access to the home through a utility room.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

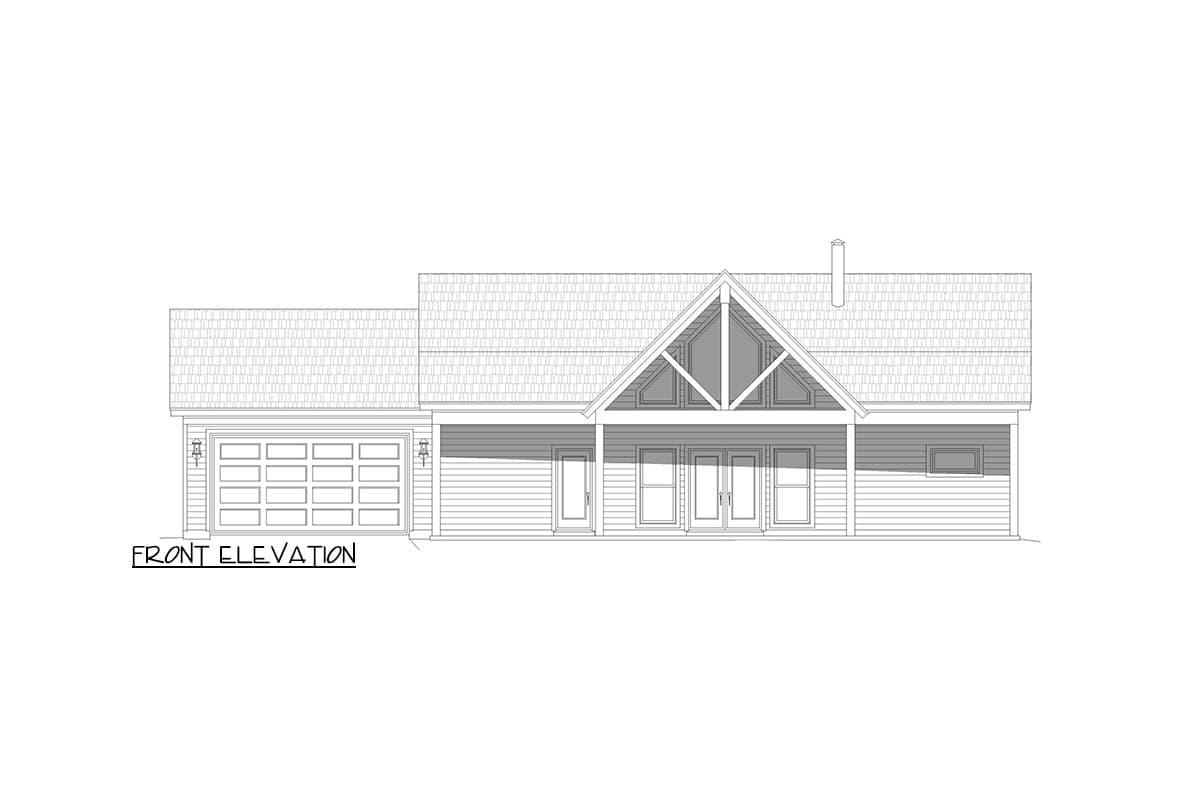

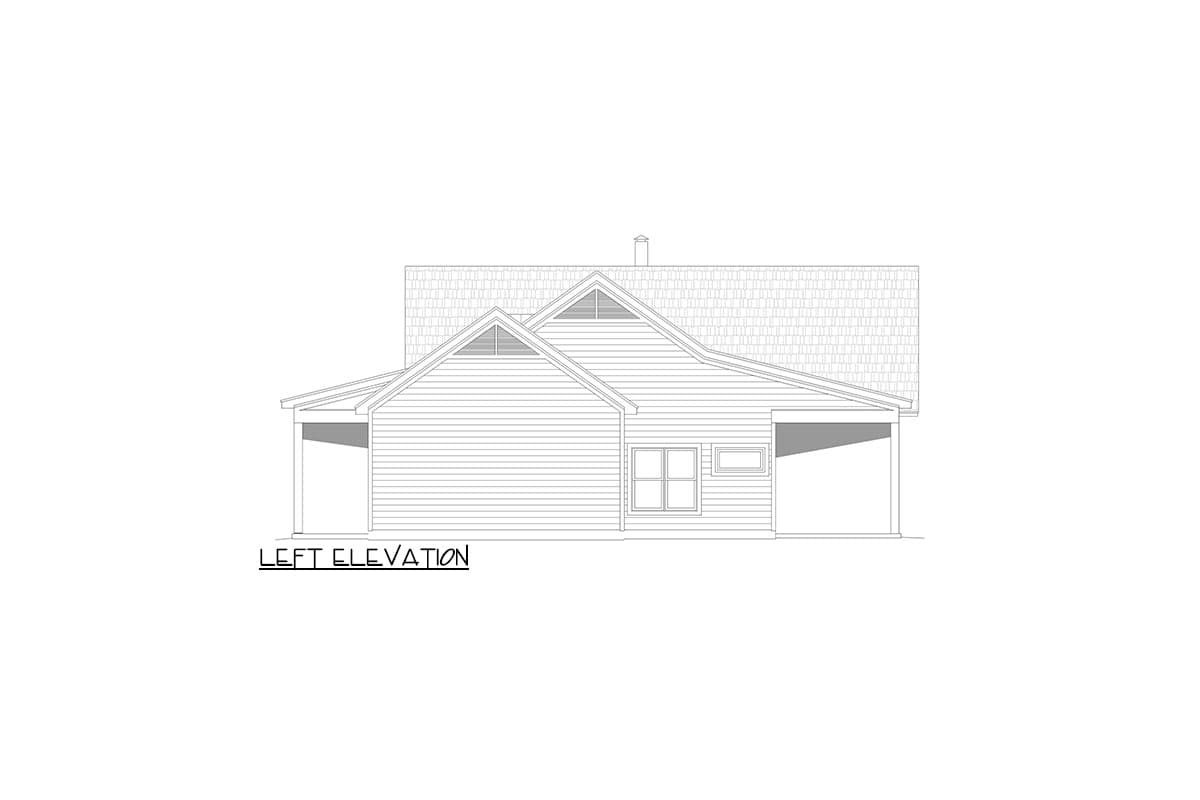

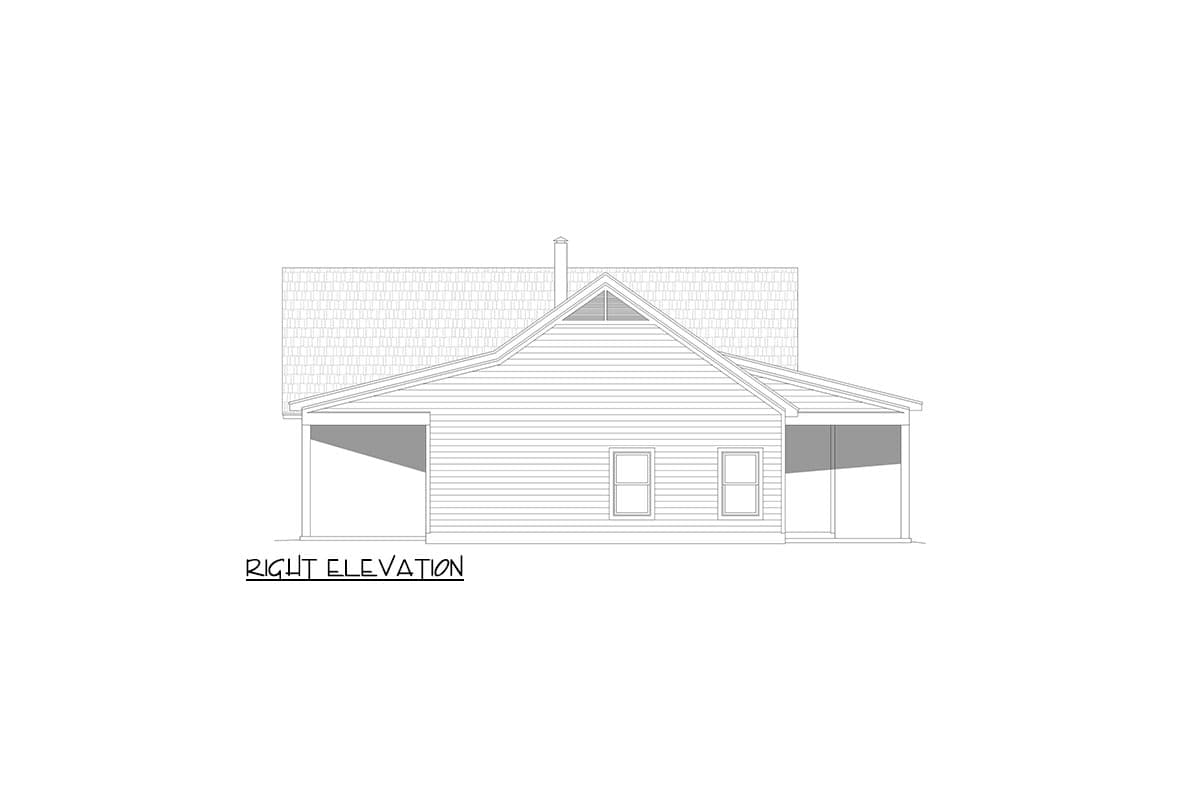

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
