Plan 801031PM

2-Bed Transitional-Style House Plan Under 1200 Square Feet with 1-Car Garage

Heated S.F.
1,196
Beds
2
Baths
1
Stories
1
Cars
1

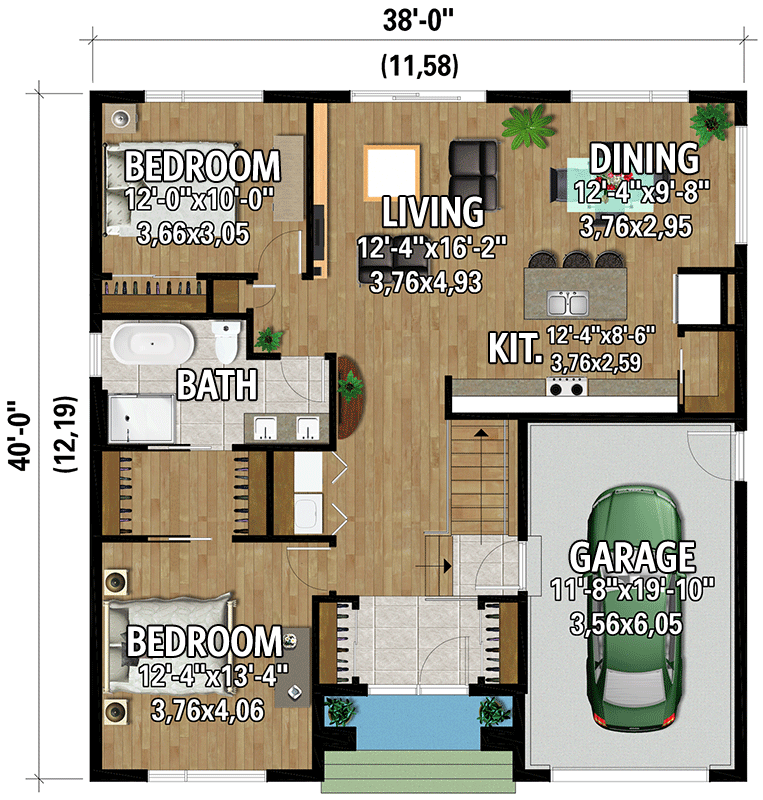

Floor Plan

Plan 801031PM

Main Level
Main Level

Plan 801031PM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 801031PM: 2-Bed Transitional-Style House Plan Under 1200 Square Feet with 1-Car Garage - Floor Plan - Main Level - Contemporary, New American, Transitional

Plan Details

  • A standing seam metal roof sits on top of this 2-bed, 1-bath Transitional house plan with a board and batten and stone exterior.
  • A one-car garage 267 square feet of parking space - is located on the right.
  • You enter onto a large with vestibule storage on both sides and the bedrooms line the left side of the home. Laundry is tucked away behind bi-fold doors.
  • The L-shaped kitchen has an island with two sinks and casual seating with an island. The dining rom and open concept living area line the back of the home and sliding doors in take you to the back deck or patio.
  • Related Plan: Get an alternate exerior with house plan 801032PM.

What's Included

Please note this plan is designed to the National Building Code of Canada.

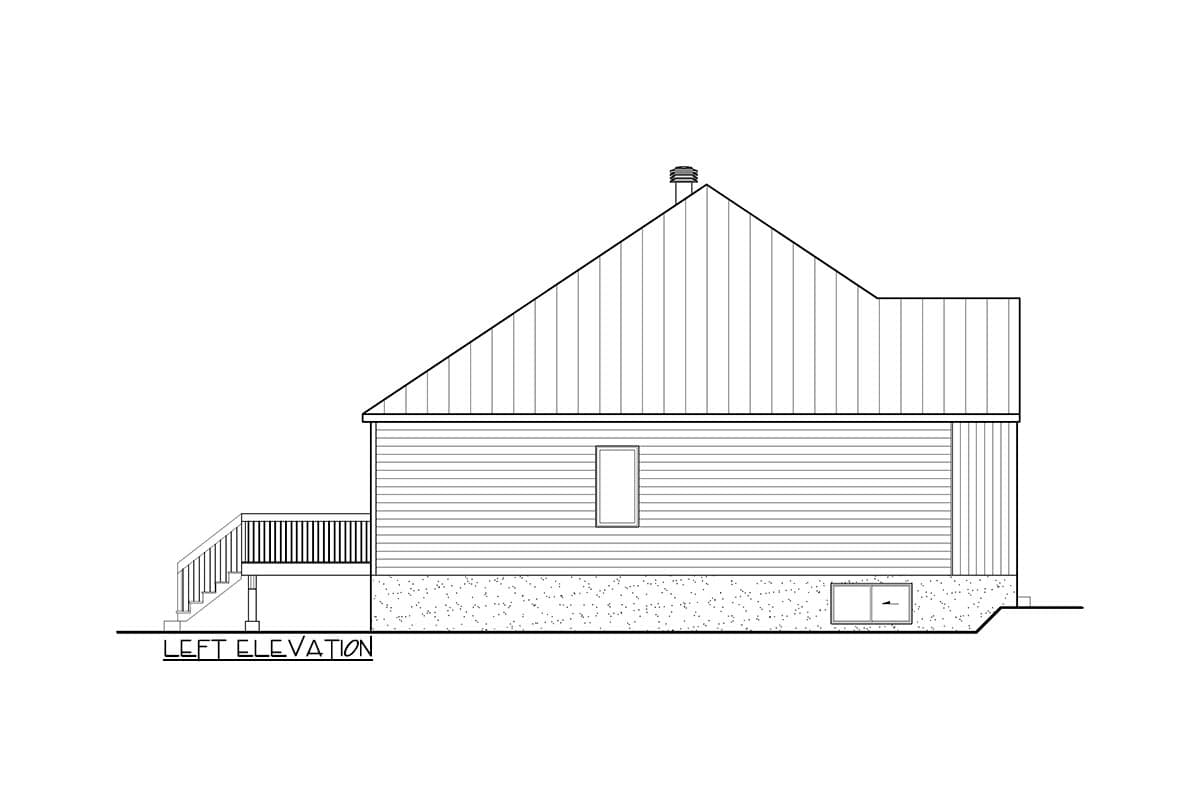

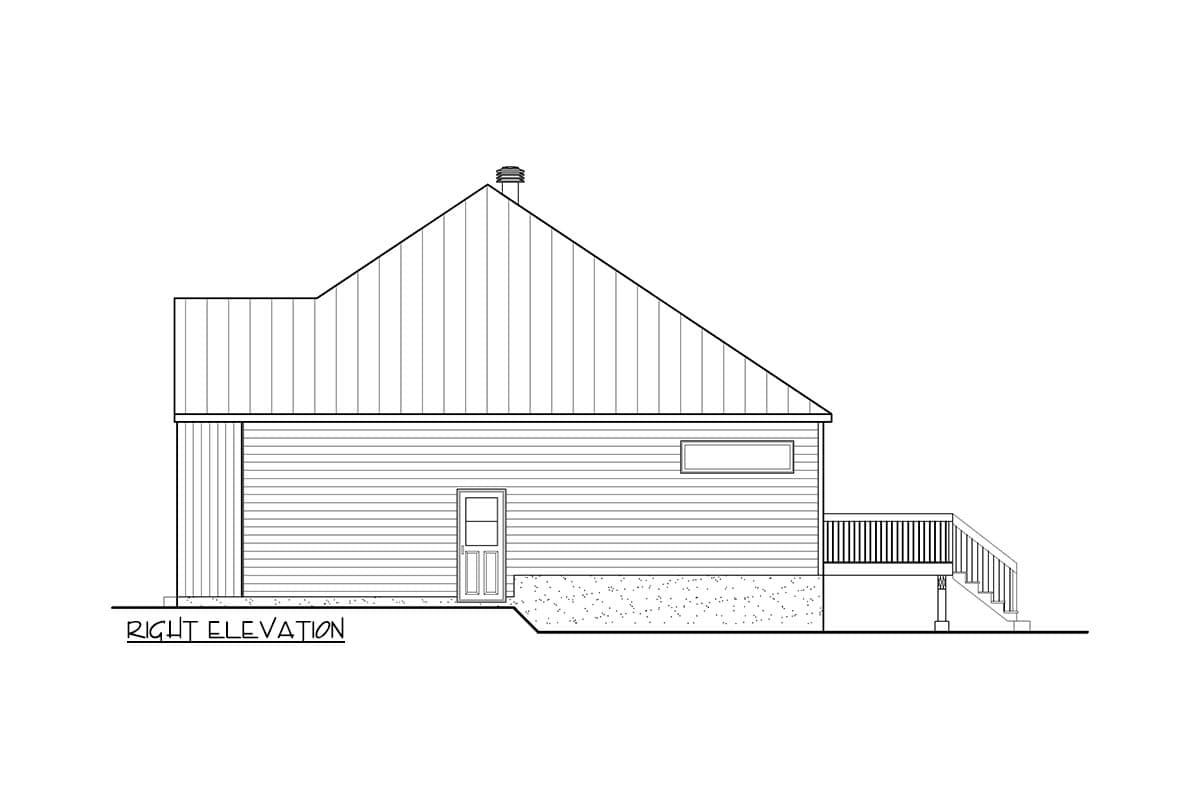

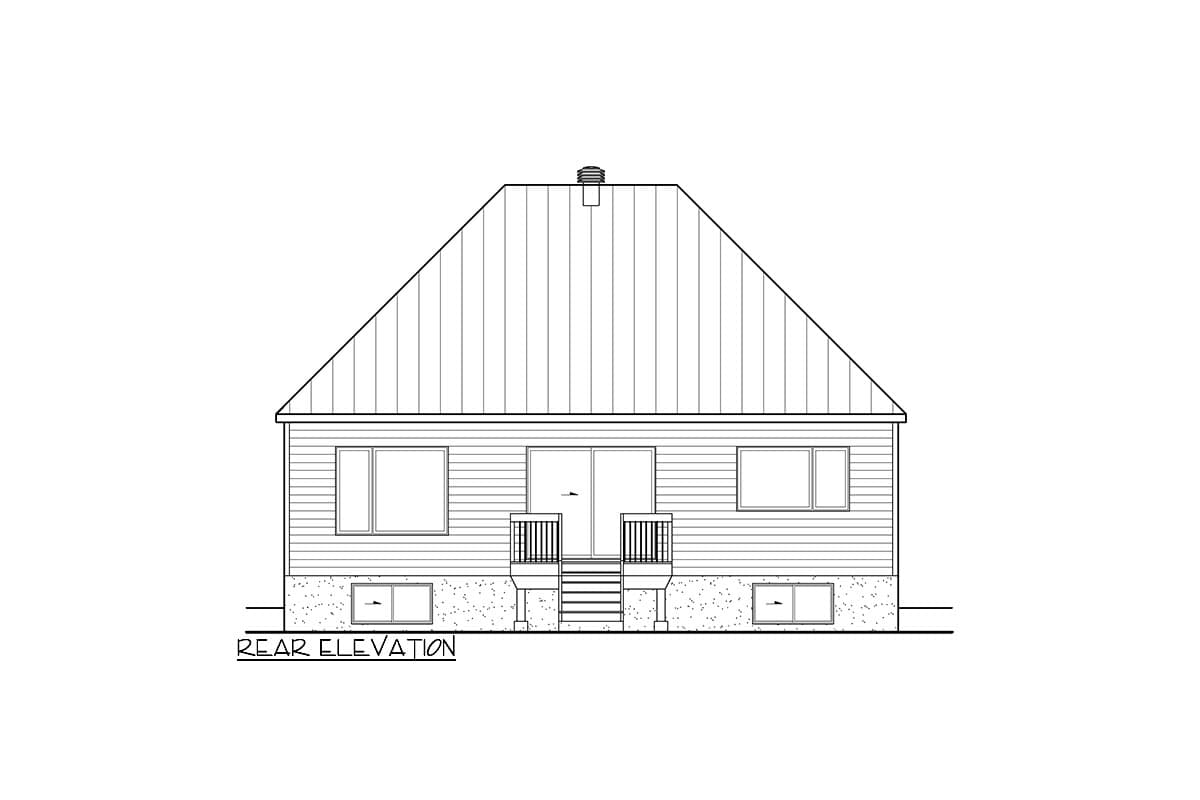

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,196 sq. ft.

1st Floor

1,196 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

40' 0"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

267 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Contemporary

New American

Transitional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,196 sq. ft.

1st Floor

1,196 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

38' 0"

Depth

40' 0"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

267 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Contemporary

New American

Transitional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Canadian House Plans
