Plan 147064RML

2 Bedroom Mediterranean House Plan with Upstairs Balcony

Heated S.F.
1,529
Beds
2
Baths
2
Stories
2

Floor Plan

Plan 147064RML

Main Level
Main Level
2nd Floor
2nd Floor

Plan 147064RML

M-F 9am-5pm EST |

1-203-761-8500

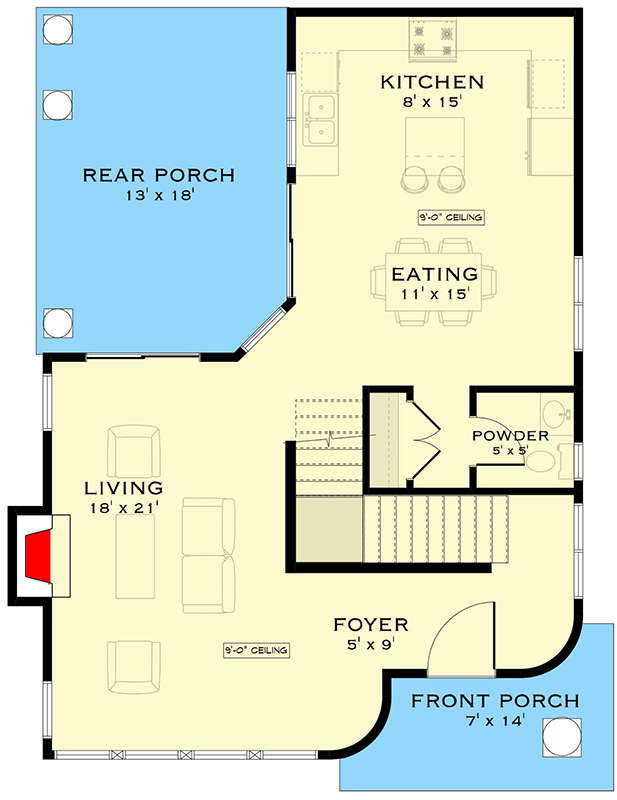

Main Level

Plan 147064RML: 2 Bedroom Mediterranean House Plan with Upstairs Balcony - Floor Plan - Main Level - Mediterranean, Spanish

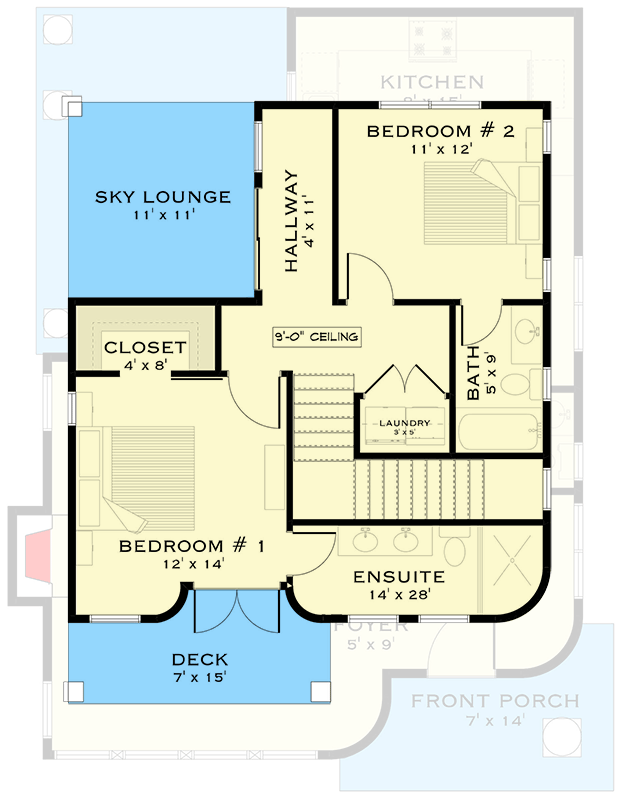

2nd Floor

Plan 147064RML: 2 Bedroom Mediterranean House Plan with Upstairs Balcony - Floor Plan - 2nd Floor - Mediterranean, Spanish

Plan Details

  • This charming Spanish Mediterranean House Plan offers 1,529 finished sq ft with 2 bedrooms and 2 full baths, featuring a distinctive split bedroom layout.
  • A welcoming entry with 9-foot ceilings introduces this thoughtfully designed two-story Spanish Mediterranean home, offering a split bedroom layout for privacy.

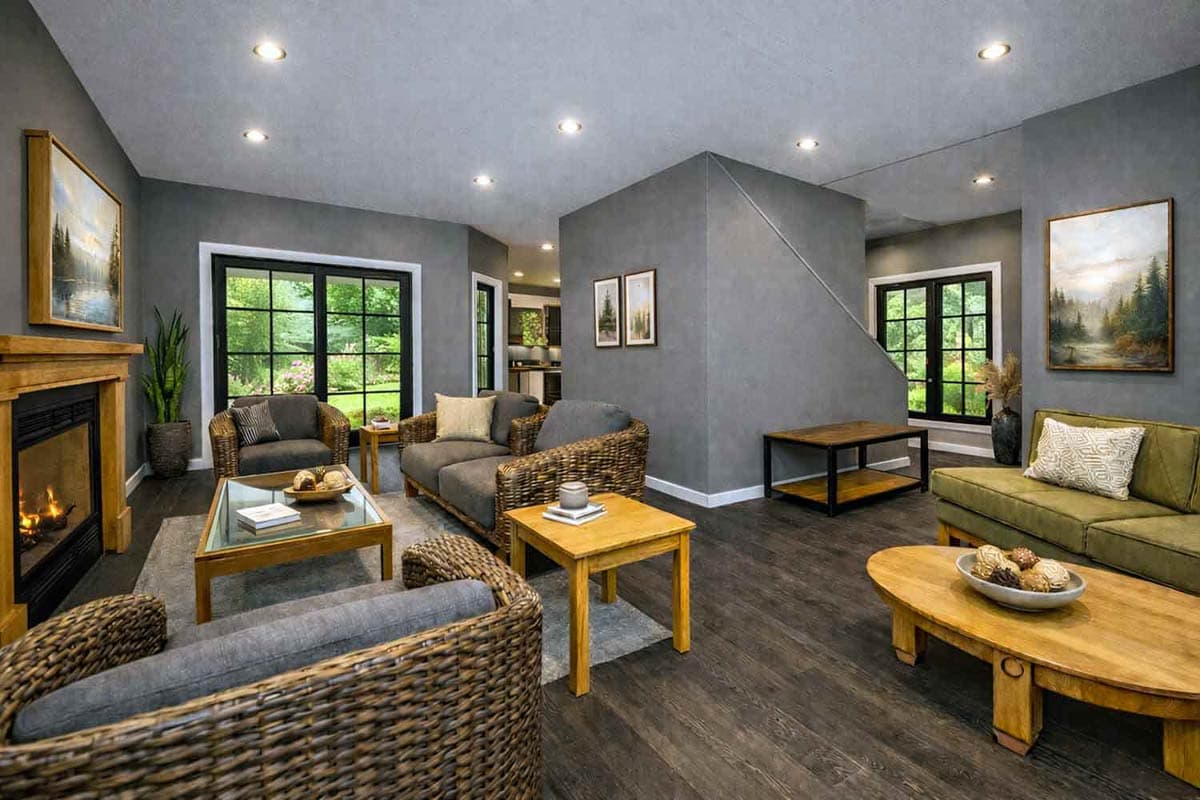

  • The main living area on the first floor, featuring 9-foot ceilings, provides a cozy atmosphere perfect for relaxation and everyday living.",
  • The private master suite is located on the second floor with convenient upstairs laundry, while the secondary bedroom offers a quiet retreat on the main level.

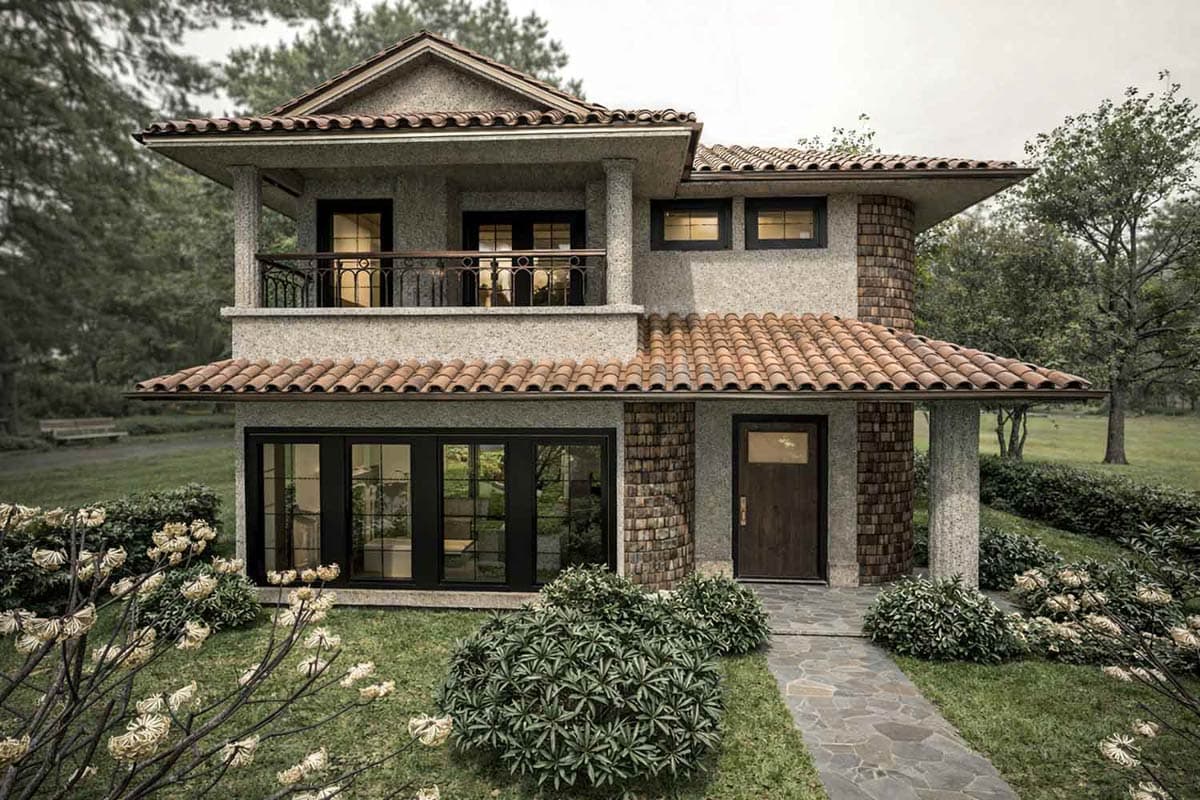

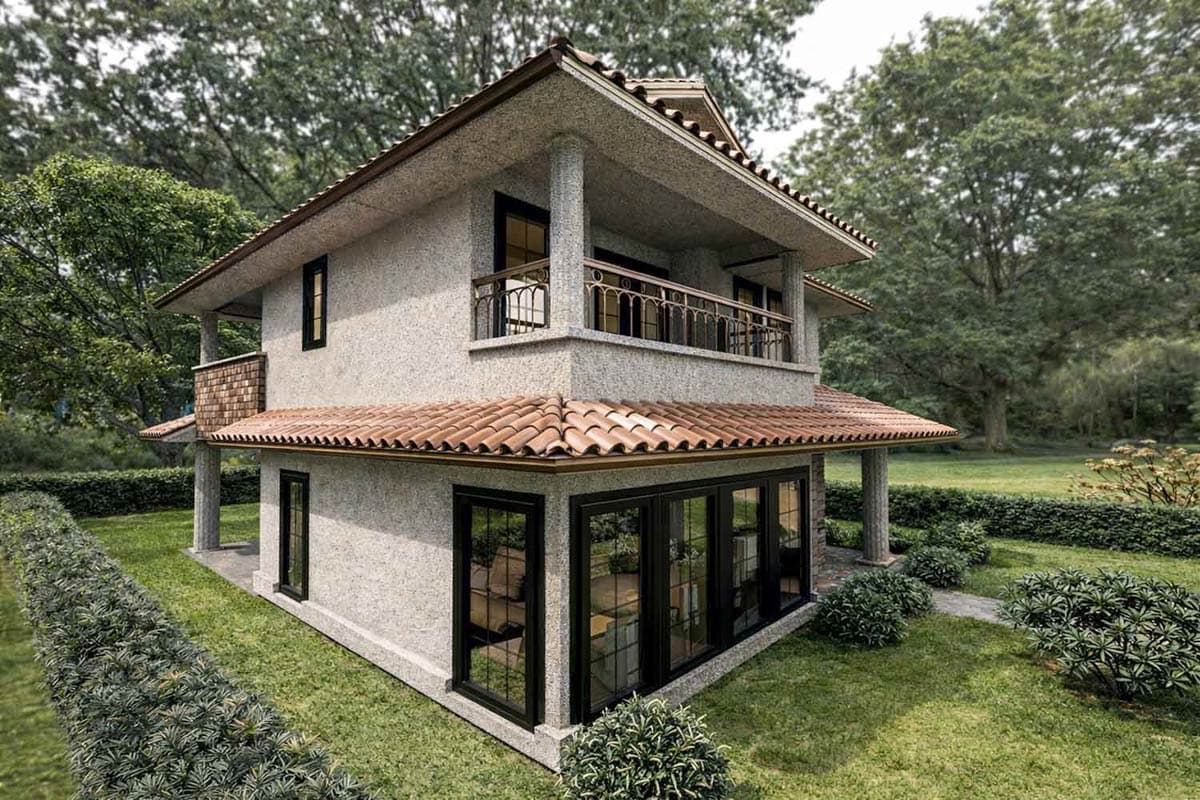

  • Enjoy the fresh air and views from the charming upstairs balcony, perfect for morning coffee or evening relaxation.

What's Included

  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details
  • Exterior Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,529 sq. ft.

1st Floor

822 sq. ft.

2nd Floor

707 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

29' 10"

Depth

39' 0"

Max Ridge Height

26' 2"

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Living Room

Flat

9' 0''

Entry

Flat

9' 0''

All Bedrooms

Flat

8' 0''

Roof Details

Primary Pitch

66 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Mediterranean

Spanish

Special Features

Bedrooms - Split

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,529 sq. ft.

1st Floor

822 sq. ft.

2nd Floor

707 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

29' 10"

Depth

39' 0"

Max Ridge Height

26' 2"

Ceiling Heights

First Floor

9'

Second Floor

8'

Room

Ceiling Type

Height

Living Room

Flat

9' 0''

Entry

Flat

9' 0''

All Bedrooms

Flat

8' 0''

Roof Details

Primary Pitch

66 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Mediterranean

Spanish

Special Features

Bedrooms - Split

Laundry - Upstairs

Master Suite - Upstairs
