2-Bedroom Modern Ranch House Plan

Plan 80943PM

This plan plants 3 trees

1,223
Heated s.f.
2
Beds
1
Baths
1
Stories

Contrasting, natural colors and multiple, modern exterior materials lie beneath a skillion roof on this 2-bedroom ranch house plan.
A coat closet sits just within the front entry, which leads directly into the heart of the home. Large windows allow natural light to permeate throughout the shared living spaces.
The kitchen provides ample workspace with a large island in the center, adjacent from the dining room. Sliding doors invite you to enjoy the outdoors on the back, covered porch.
Two bedrooms are separated by a bathroom with an oversized sink, and a separate tub and shower.
A laundry closet is centrally located across from the bathroom for ease of use.

Please note this plan is designed to the National Building Code of Canada.

Plan sets include the following:

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

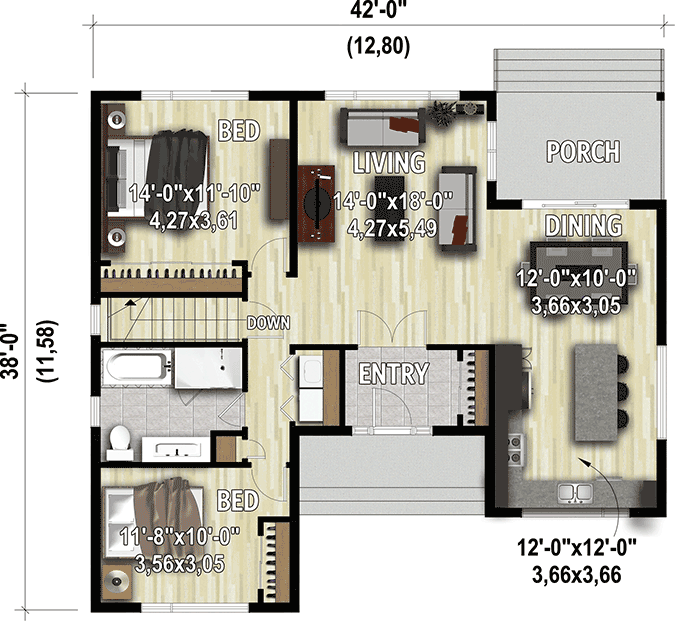

2-Bedroom Modern Ranch House Plan - 80943PM floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 1,223 sq. ft.
1st Floor: 1,223 sq. ft.

Beds/Baths

Bedrooms: 2

Full bathrooms: 1

Foundation Type

Standard Foundations: Basement

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 42' 0"
Depth: 38' 0"
Max ridge height: 24' 0"

Ceiling Heights

Floor / Height: Lower Level / 0' 9" First Floor / 10' 0"

Roof Details

Framing Type: Truss

Architectural Style

Special features

Plan Collections
