Plan 2251SL

2-Car Garage Apartment

840 1 1 1 2
Pageloader

2-Car Garage Apartment

Plan 2251SL

  • 840

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • 2

    Cars

  • This traditional 2-car garage apartment plan is designed with interior stairs to access the upper level one bedroom, one bath apartment with comfort.
  • The compact galley-style kitchen features a pantry and direct access to the dining area.
  • An open family room and sitting area provide flexible space.
  • Related Plans: See these alternate versions - 2242SL and 2245SL (both 868 sq. ft) and 2288SL (side-garage).

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

Floor Plan

Plan details

Architectural Style



2-Car Garage Apartment

  • 840

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $450
  • PDF - single-use $500
  • 8 Sets $505
  • CAD $600
  • PDF - multi-use $1,400
  • CAD - multi-use $1,500
  • View all purchase option online

About This Plan

  • This traditional 2-car garage apartment plan is designed with interior stairs to access the upper level one bedroom, one bath apartment with comfort.
  • The compact galley-style kitchen features a pantry and direct access to the dining area.
  • An open family room and sitting area provide flexible space.
  • Related Plans: See these alternate versions - 2242SL and 2245SL (both 868 sq. ft) and 2288SL (side-garage).

Floor Plans

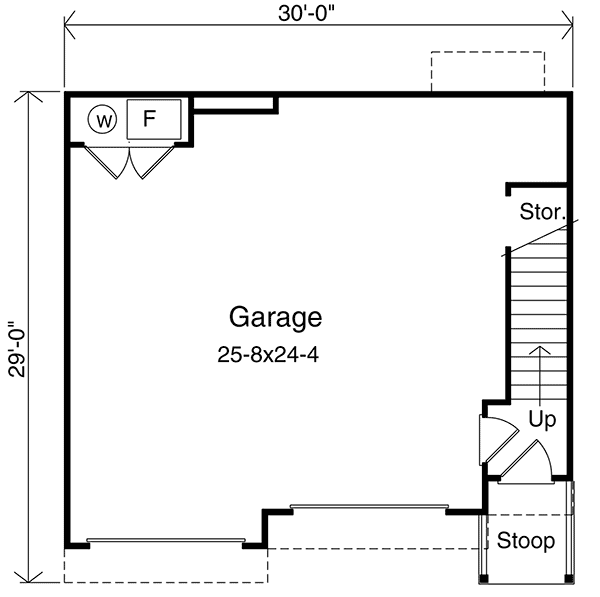

  • Main Level

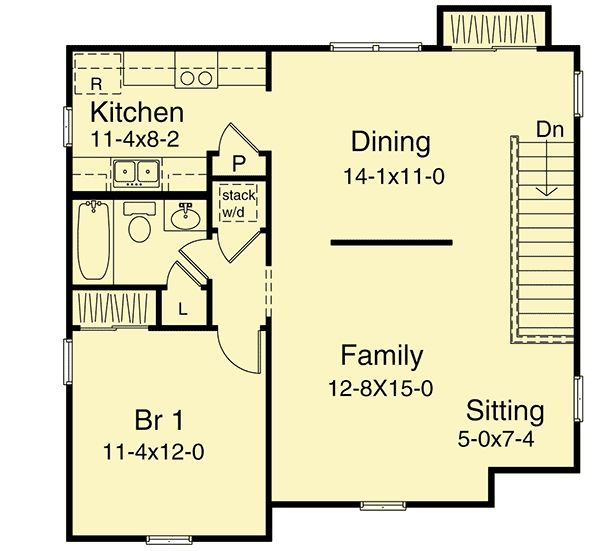

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 840 sq. ft.
  • 2nd Floor: 840 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 29' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Detached
  • Area: 870 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
