Side-Entry Carriage House Plan

Plan 2288SL

  • 973

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This carriage house plan offers an elegant yet traditional design.
  • The 3-car side entry garage offers plenty of storage space.
  • The upper level two bedroom, one bath apartment features generous room sizes.
  • The kitchen features a pantry and conveniently serves the breakfast area.
  • Related Plans: Get a front-entry garage with these designs - 2242SL and 2245SL (both 868 sq. ft) and 2251SL (840 sq. ft.).

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans

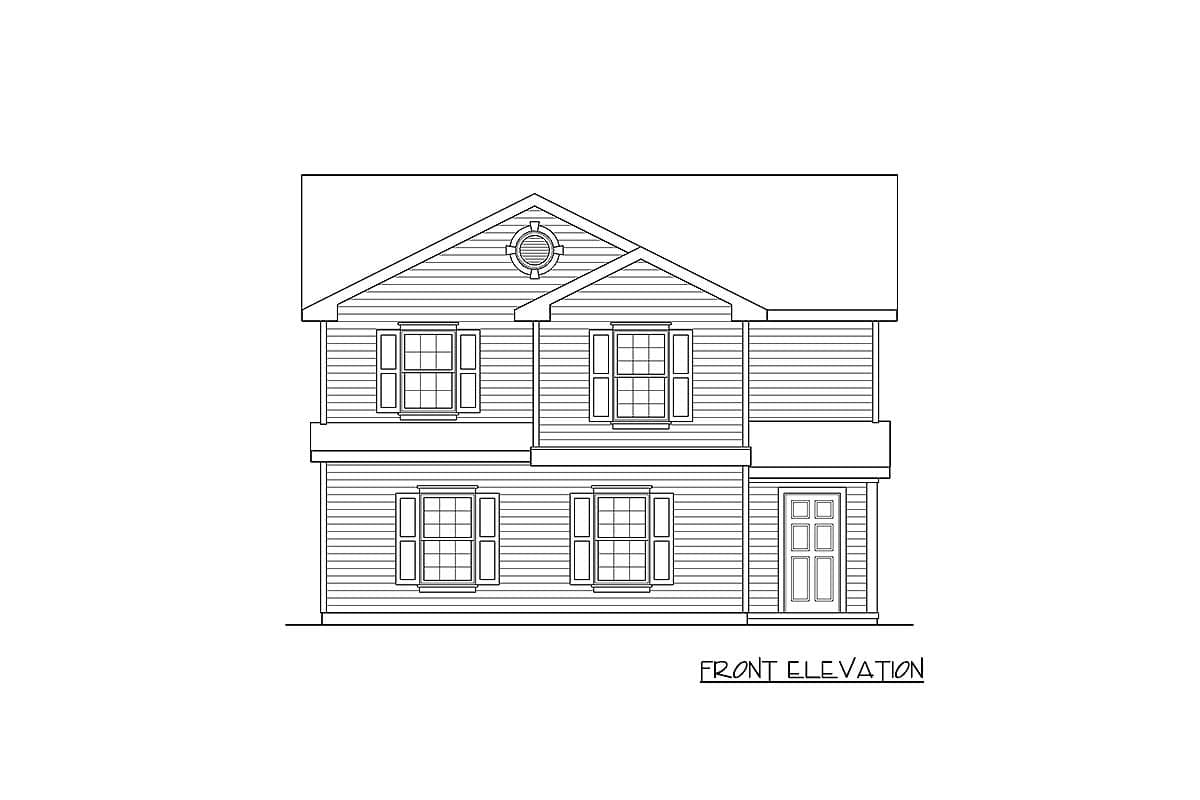

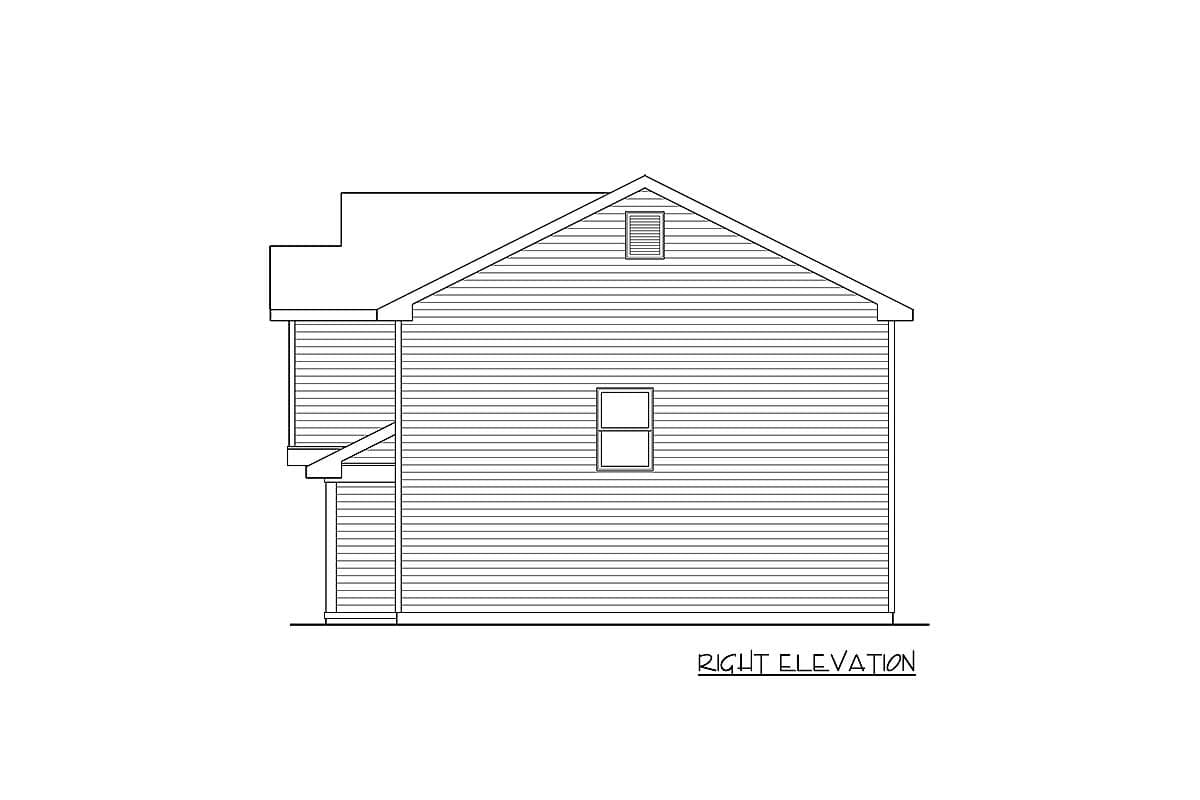

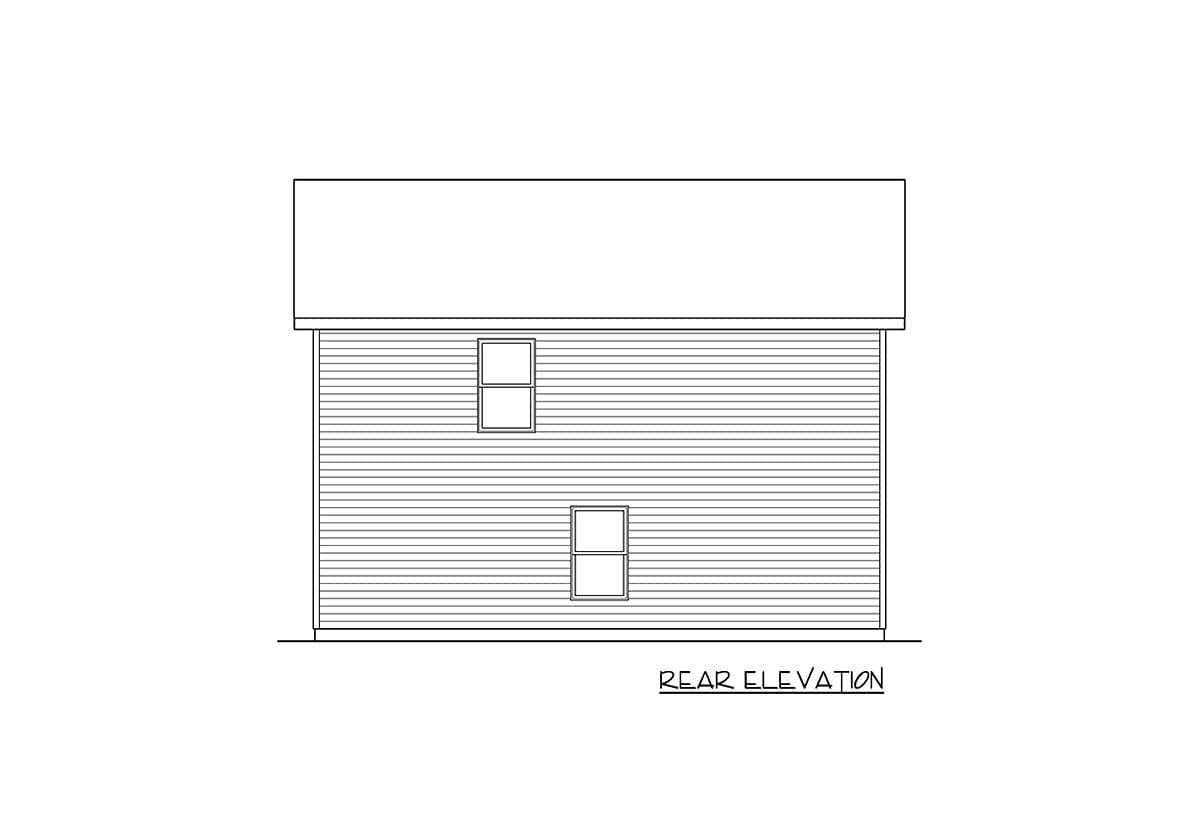

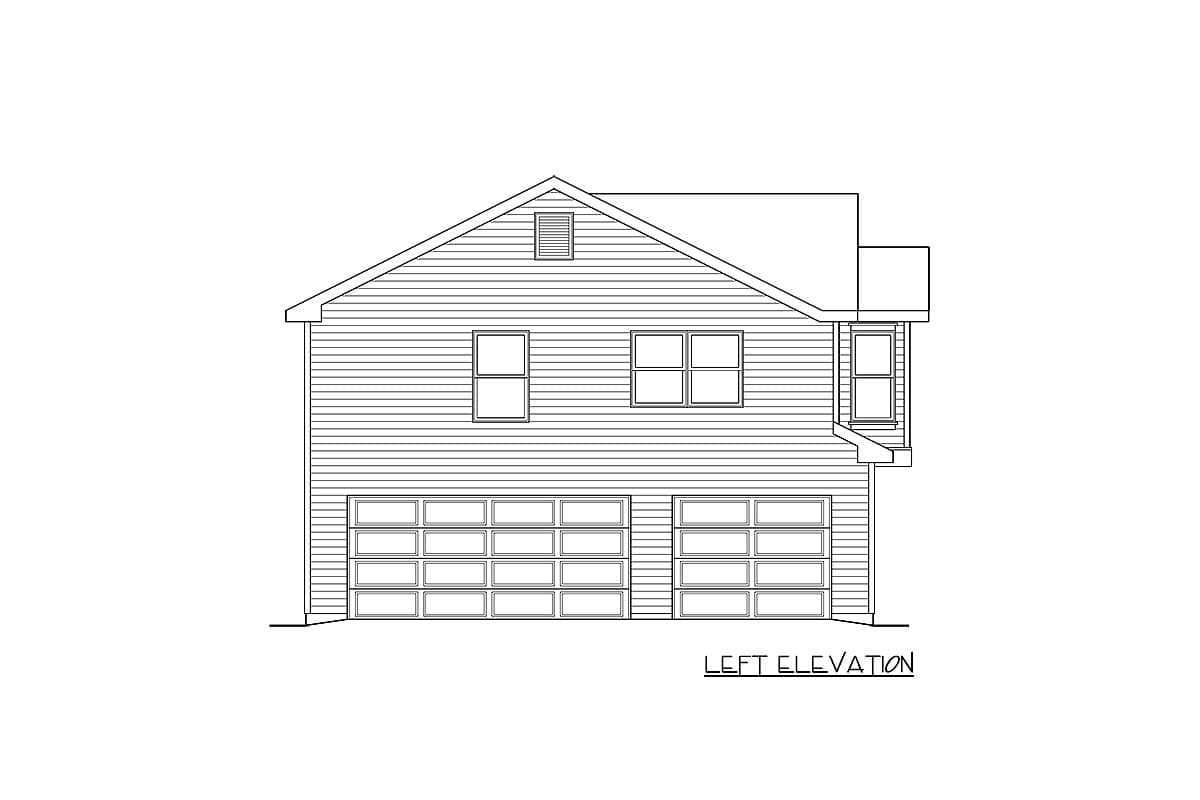

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

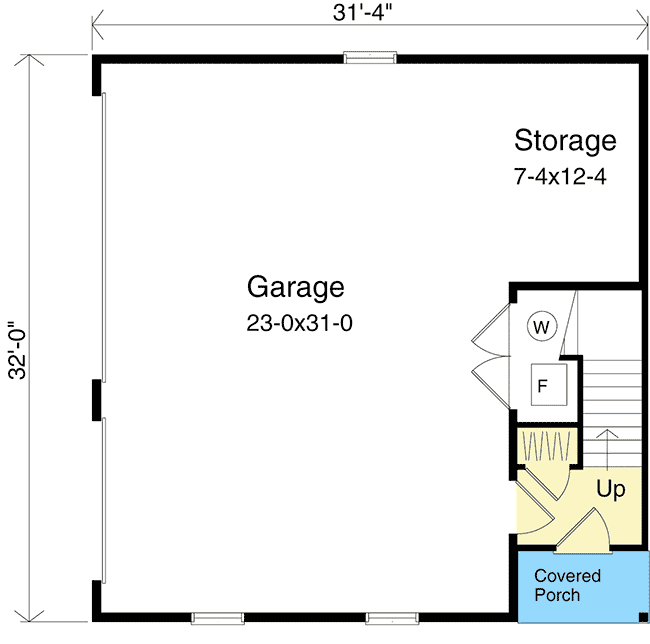

Side-Entry Carriage House Plan - 2288SL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

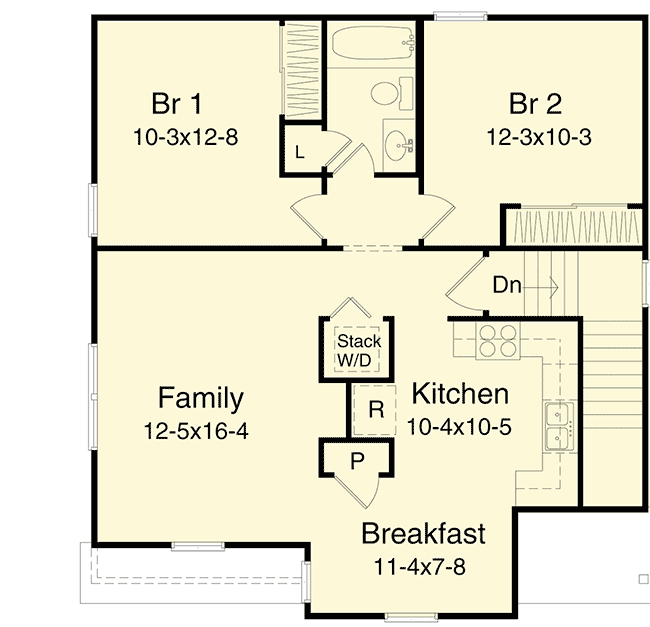

Side-Entry Carriage House Plan - 2288SL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 973 sq. ft.
  • 2nd Floor: 973 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 31' 4"
  • Depth: 32' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached, Detached
  • Area: 803 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Side-Entry Carriage House Plan

  • 973

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $500
  • CAD - Single-Build $600
  • PDF - Unlimited Build $1,400
  • CAD - Unlimited Build $1,500
  • View all purchase option online

About This Plan

  • This carriage house plan offers an elegant yet traditional design.
  • The 3-car side entry garage offers plenty of storage space.
  • The upper level two bedroom, one bath apartment features generous room sizes.
  • The kitchen features a pantry and conveniently serves the breakfast area.
  • Related Plans: Get a front-entry garage with these designs - 2242SL and 2245SL (both 868 sq. ft) and 2251SL (840 sq. ft.).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 973 sq. ft.
  • 2nd Floor: 973 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 31' 4"
  • Depth: 32' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached, Detached
  • Area: 803 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
