2-Car Garage with Storage & Free Bonus

Plan 21900DR

  • 0

    Heated s.f.

  • 0

    Beds

  • 1-2

    Stories

  • 2

    Cars

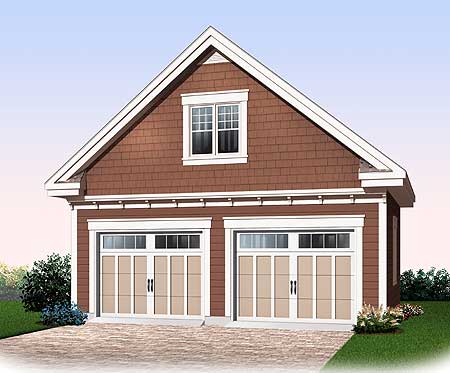

  • This 2-car garage plan has 624 sq. ft. on the main level and 315 sq. ft. of storage space above.
  • Related Plans: For a slightly larger version, see plan 21901DR. For a three car version, see plan 21902DR.

Each plan includes the following:

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Car Garage with Storage & Free Bonus - 21900DR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Car Garage with Storage & Free Bonus - 21900DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Storage: 315 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 24' 0"
  • Depth: 26' 0"
  • Max ridge height: 21' 6"

Garage

  • Type: Detached
  • Area: 624 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 6" Second Floor / 7' 6"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Plan Collections

2-Car Garage with Storage & Free Bonus

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $525
  • CAD + PDF - Single-Build $825
  • View all purchase option online

About This Plan

  • This 2-car garage plan has 624 sq. ft. on the main level and 315 sq. ft. of storage space above.
  • Related Plans: For a slightly larger version, see plan 21901DR. For a three car version, see plan 21902DR.
