Plan 8194LB
2 Family Craftsman House Plan
Heated S.F.
2,821
Units
2
Width
23'
Depth
57'
What's Included
Plan Details

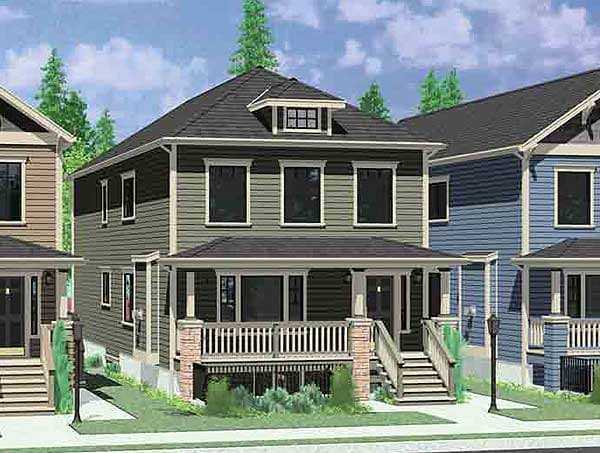

  • This 2 family Craftsman home plan is great as a standalone home or as part of a larger community where you can build multiple homes.

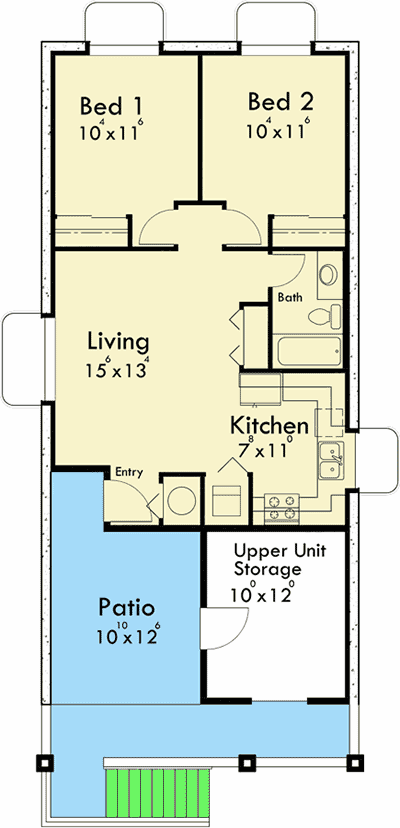

  • The lower unit gives you 738 square feet of living space and has two beds that share a bath and a kitchen that is open to the living room. There is also a below grade patio in front.
  • The main unit gives you 2,083 square feet of living (1,104 square feet of living space and the top floor unit has 979 square feet of living space) spread across two floors and a total of 6 bedrooms. This unit gets the benefit of the front porch and the storage unit below.
  • Related Plans: Get a slightly larger lower level unit with house plan 8196LB.
  • Get an alternate exterior with house plan 8193LB.
Unit A
2,083 Sq. Ft.
1104 Sq. Ft. 1st Floor
979 Sq. Ft. 2nd Floor
6 Beds
2 Full Baths
23' w 57' d 30' 4" h
Unit B
738 Sq. Ft.
738 Sq. Ft. Lower Level
2 Beds
1 Full Bath
23' w 57' d 30' 4" h
What's Included

What is Included in Our Plans?

We work with hundreds of designers and architects who work in a variety of styles.  It is important to note. Their plan packages may contain different details.

We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below are examples of sheets that may be included in plan sets - please be aware that not every plan includes every one of these pages:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2 Family Craftsman House Plan

  • 2,821

    Heated s.f.

  • 2

    Units

  • 23'

    Width

  • 57'

    Depth

Floor Plan

  • Basement

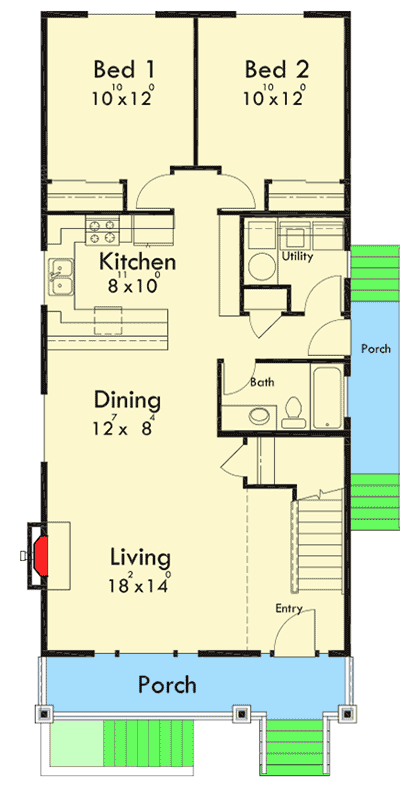

  • Main Level

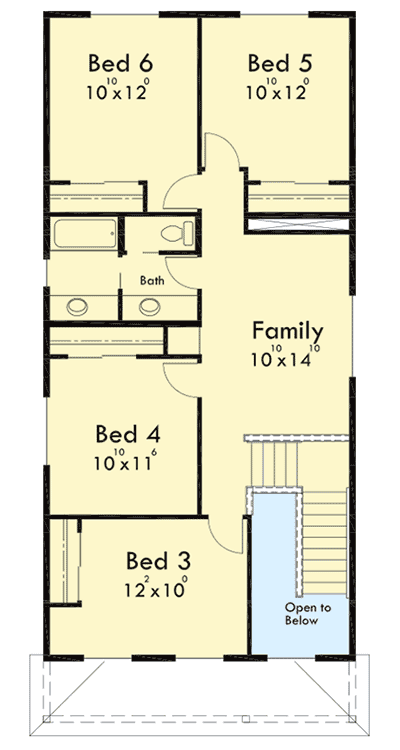

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,821 sq. ft.
  • Lower Level: 738 sq. ft.
  • 1st Floor: 1,104 sq. ft.
  • 2nd Floor: 979 sq. ft.

Dimensions

  • Width: 23' 0"
  • Depth: 57' 0"
  • Max ridge height: 30' 4"

Beds/Baths

  • Bedrooms: 6, 7, or 8
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6
All house plans are copyright ©2024 by the architects and designers represented on our web site

2 Family Craftsman House Plan

  • 2,821

    Heated s.f.

  • 2

    Units

  • 23'

    Width

  • 57'

    Depth

2 Family Craftsman House Plan

  • 2,821

    Heated s.f.

  • 2

    Units

  • 23'

    Width

  • 57'

    Depth

Plan Details

Square Footage Breakdown

  • Total: 2,821 sq. ft.
  • Lower Level: 738 sq. ft.
  • 1st Floor: 1,104 sq. ft.
  • 2nd Floor: 979 sq. ft.

Dimensions

  • Width: 23' 0"
  • Depth: 57' 0"
  • Max ridge height: 30' 4"

Beds/Baths

  • Bedrooms: 6, 7, or 8
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6
