Plan 8196LB

Craftsman Home Plan for 2 Families

Heated S.F.
2,881
Units
2
Width
Depth

Floor Plan

Plan 8196LB

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 8196LB

M-F 9am-5pm EST |

1-203-761-8500

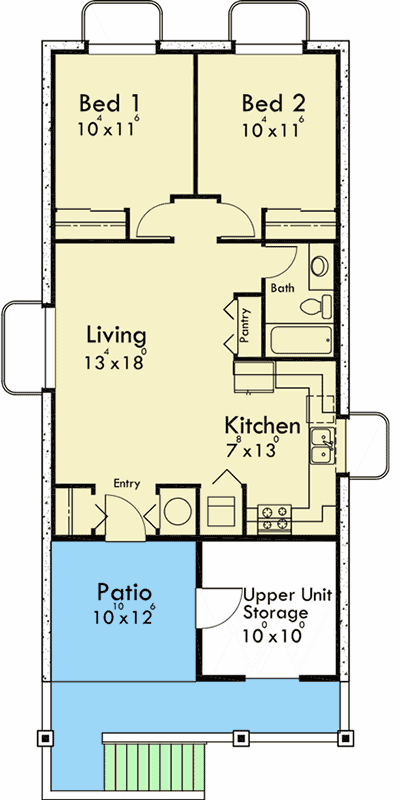

Basement

Plan 8196LB: Craftsman Home Plan for 2 Families - Floor Plan - Basement

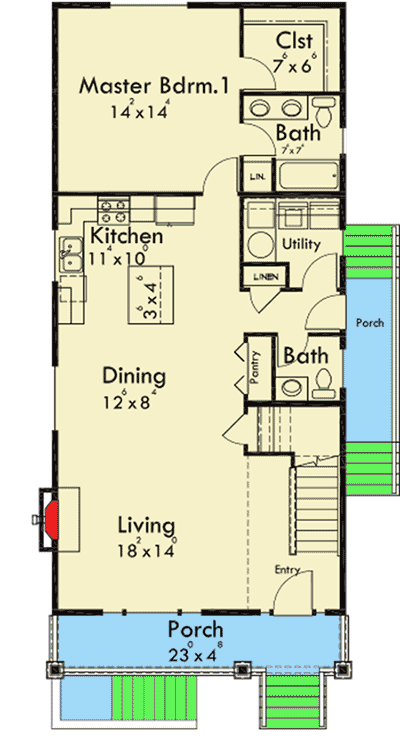

Main Level

Plan 8196LB: Craftsman Home Plan for 2 Families - Floor Plan - Main Level

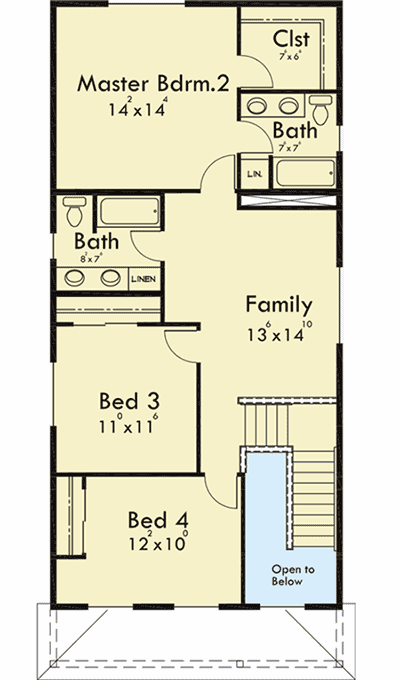

2nd Floor

Plan 8196LB: Craftsman Home Plan for 2 Families - Floor Plan - 2nd Floor

Plan Details

  • This 2 family Craftsman home plan is great as a standalone home or as part of a larger community where you can build multiple homes.
  • The lower unit gives you 798 square feet of living space and has two beds that share a bath and a kitchen that is open to the living room. There is also a below grade patio in front.
  • The main unit gives you 2,083 square feet of living (1,104 square feet of living space and the top floor unit has 979 square feet of living space) spread across two floors and a total of 6 bedrooms. This unit gets the benefit of the front porch and the storage unit below.
  • Related Plans: Get a slightly smaller lower level unit with house plan 8194LB.
  • Get an alternate exterior with house plan 8195LB.
Unit A
Heated Area
2,083Sq. Ft.
1104 Sq. Ft. 1st
979 Sq. Ft. 2nd
Beds
4Beds
Baths
3Full Baths
1Half Bath
Dimensions
23'width
57'depth
30' 4"height
Unit B
Heated Area
798Sq. Ft.
798 Sq. Ft. LL
Beds
2Beds
Baths
1Full Bath
Dimensions
23'width
57'depth
30' 4"height

What's Included

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,881 sq. ft.

Lower Level

798 sq. ft.

1st Floor

1,104 sq. ft.

2nd Floor

979 sq. ft.

Storage

114 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

23' 0"

Depth

57' 0"

Max Ridge Height

30' 4"

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Special Features

In-Law Suite

Master Suite - 1st Floor

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

2,881 sq. ft.

Lower Level

798 sq. ft.

1st Floor

1,104 sq. ft.

2nd Floor

979 sq. ft.

Storage

114 sq. ft.

Beds/Baths

Bedrooms

5 or 6

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

23' 0"

Depth

57' 0"

Max Ridge Height

30' 4"

Ceiling Heights

Lower Level

8'

First Floor

8'

Second Floor

8'

Special Features

In-Law Suite

Master Suite - 1st Floor

Master Suite - Upstairs
