Plan 677035NWL

2-Story Cabin with Upstairs Bedrooms - 1035 Sq Ft

Heated S.F.
1,035
Beds
2
Baths
2.5
Stories
2
Tour

Floor Plan

Plan 677035NWL

Main Level
Main Level
2nd Floor
2nd Floor

Plan 677035NWL

M-F 9am-5pm EST |

1-203-761-8500

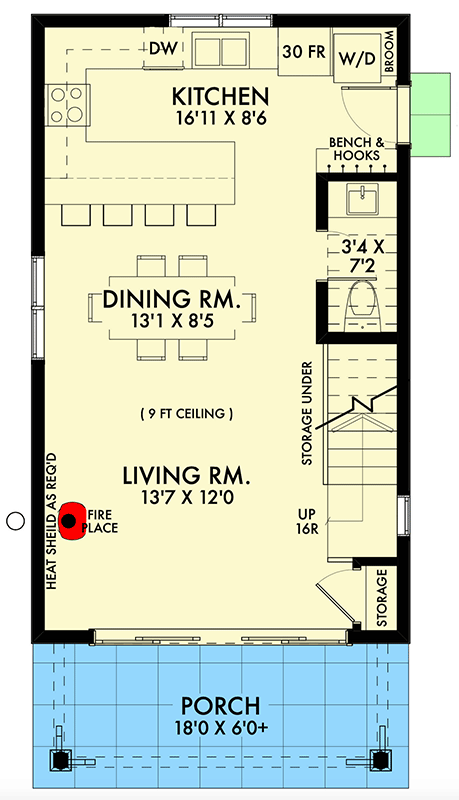

Main Level

Plan 677035NWL: 2-Story Cabin with Upstairs Bedrooms - 1035 Sq Ft - Floor Plan - Main Level - Cabin, Cottage, Country, Rustic, Traditional

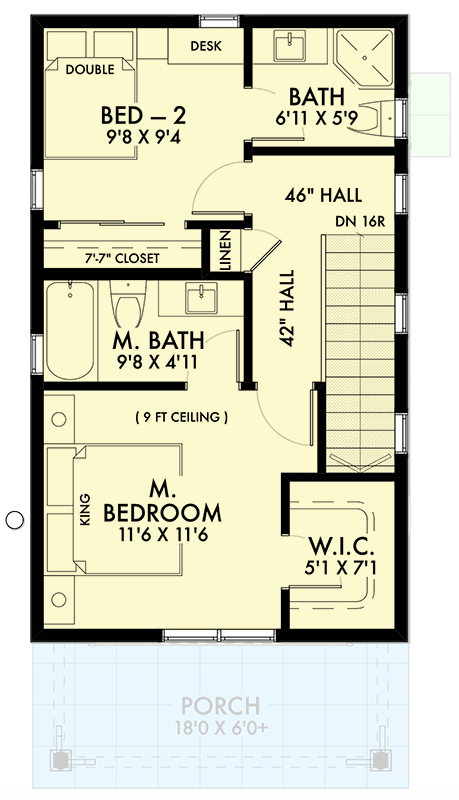

2nd Floor

Plan 677035NWL: 2-Story Cabin with Upstairs Bedrooms - 1035 Sq Ft - Floor Plan - 2nd Floor - Cabin, Cottage, Country, Rustic, Traditional

Plan Details

  • This 2-story cabin gives you 2 beds, 2.5 baths and 1,035 square feet of heated living. It has an attractive rustic exterior with board and batten siding and a welcoming 6'-deep front porch with sliders that open to the living room with fireplace.
  •  The main floor is open front to back with the kitchen with peninsula in back and the dining area in the middle all set under a 9' ceiling.
  • By the side entrance, a well-placed bench with hooks is opposite the washer/dryer. A half bath completes the floor.
  • Upstairs, the master suite is in front and has a walk-in closet while Bed 2 accesses the hall bath.

What's Included

  • General Notes, Perspectives
  • Fully Dimensioned Floor Plans
  • Foundation & Roof Plan

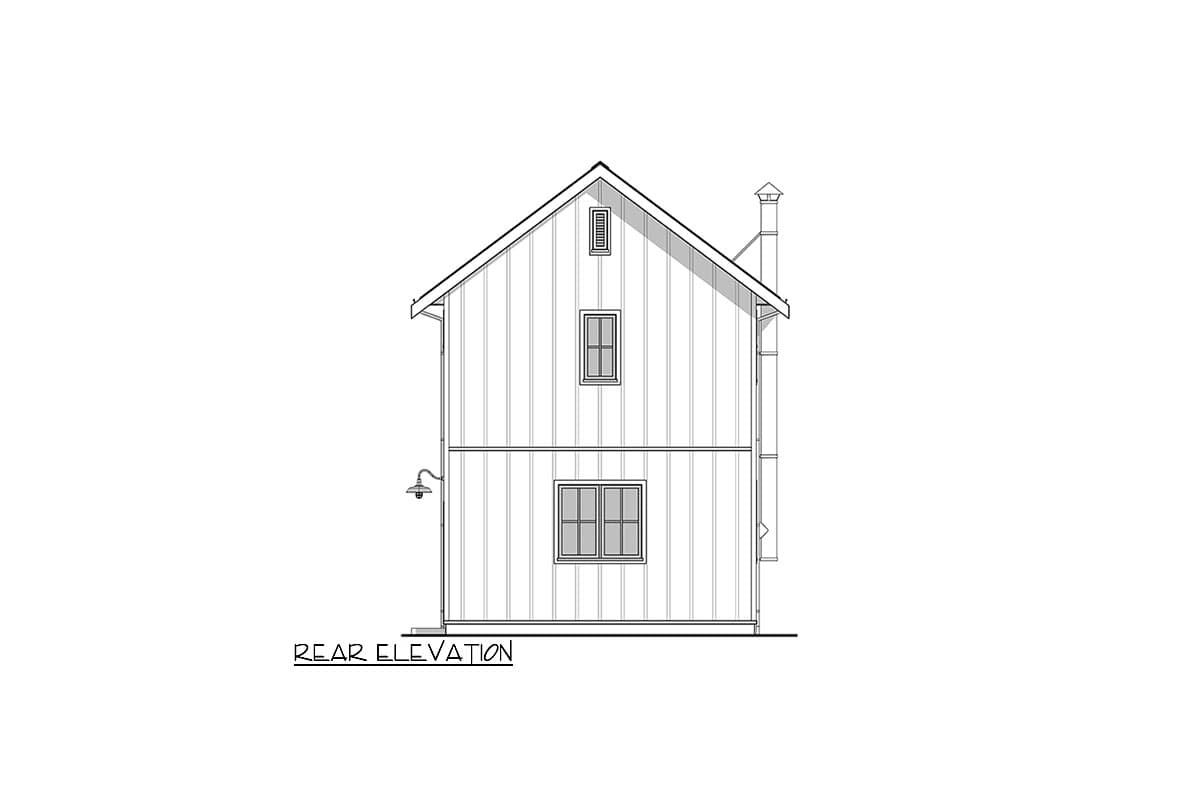

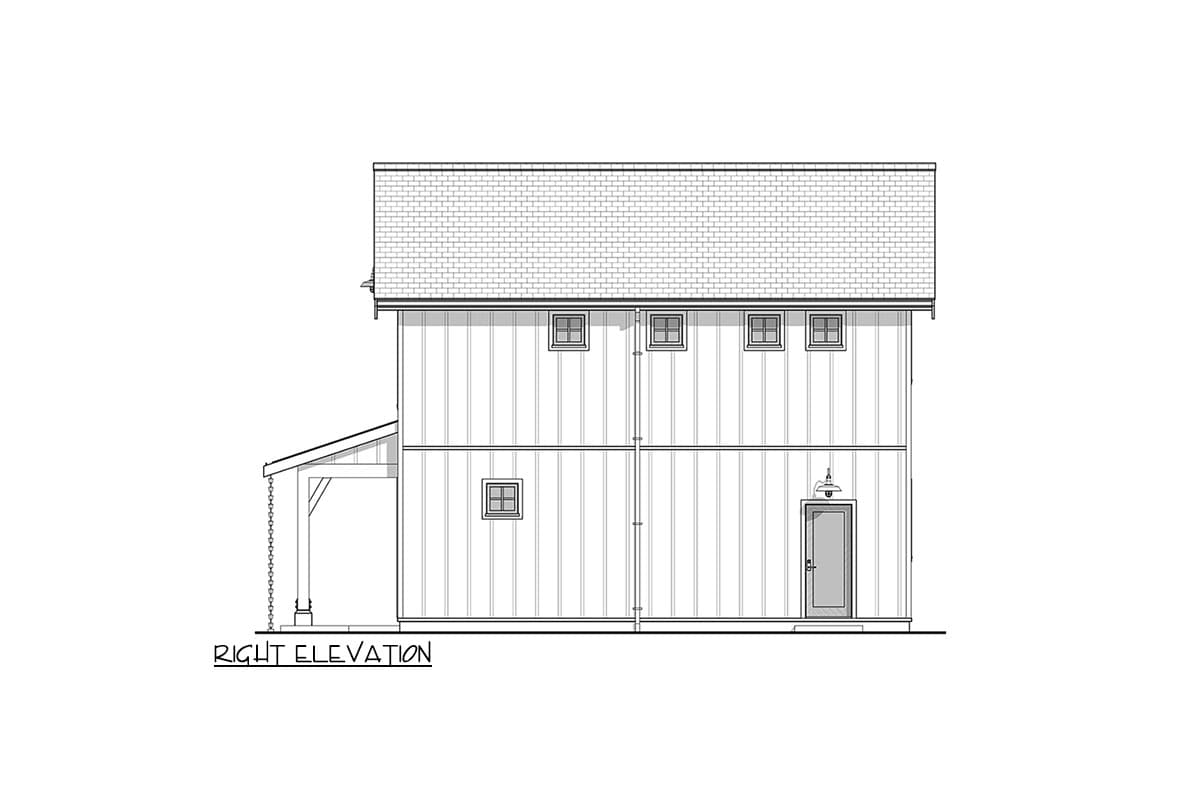

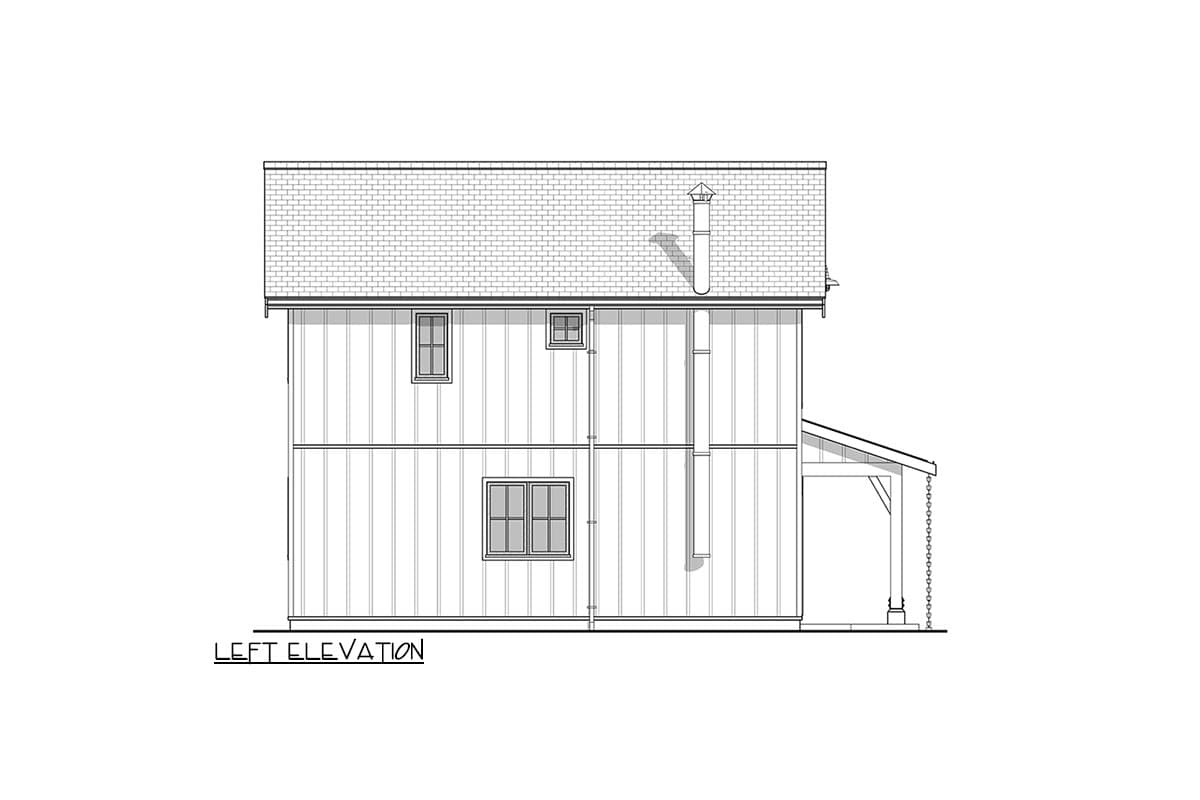

  • Elevations
  • Building & Wall Sections
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,035 sq. ft.

1st Floor

540 sq. ft.

2nd Floor

495 sq. ft.

Porch, Front

108 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

18' 0"

Depth

36' 0"

Max Ridge Height

26' 8"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Country

Rustic

Traditional

Special Features

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Plan Collections

Canadian House Plans

Square Footage Breakdown

Total Heated Area

1,035 sq. ft.

1st Floor

540 sq. ft.

2nd Floor

495 sq. ft.

Porch, Front

108 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

18' 0"

Depth

36' 0"

Max Ridge Height

26' 8"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Cabin

Cottage

Country

Rustic

Traditional

Special Features

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Plan Collections

Canadian House Plans
