2-Story Cape Cod Home Plan with Formal Dining Room and Den
Heated S.F.
2,291
Beds
4
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • Shake siding and brick accents add to the immense curb appeal offered by this 2-story Cape Cod home plan that gives you 4 bedrooms and 2.5 baths.

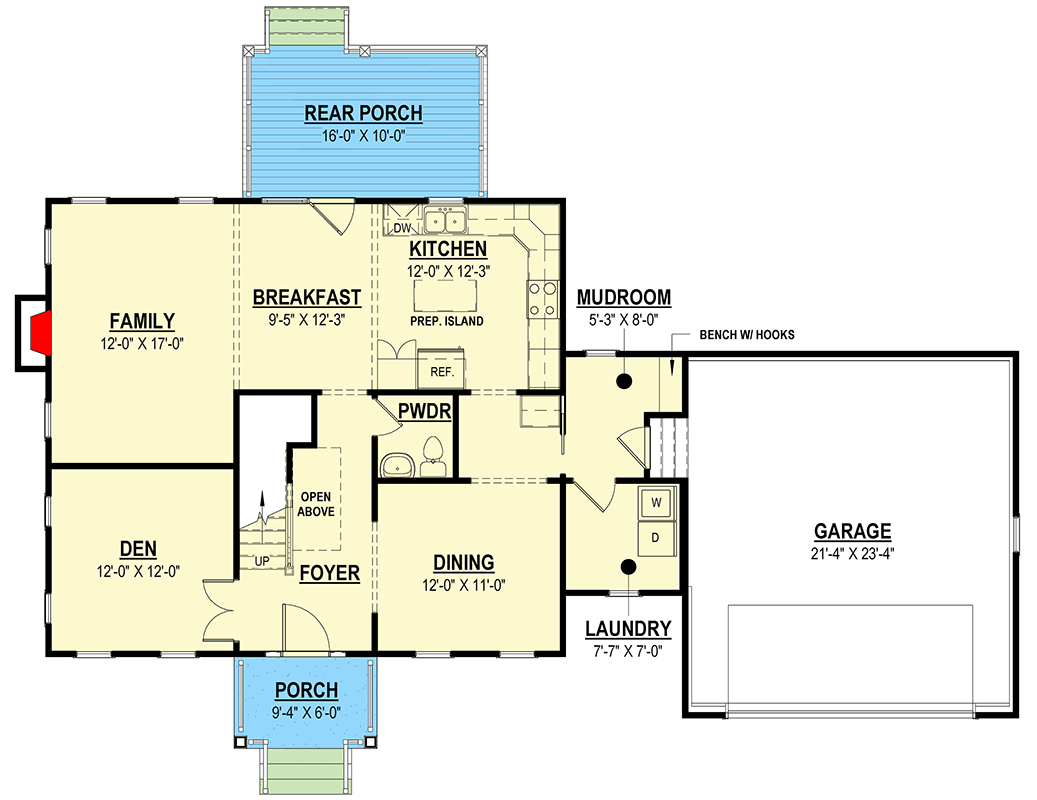

  • On either side of the foyer, you will find a sizable den and formal dining room, while the heart of the home is rear facing and opens to the breakfast nook and family room.
  • Retreat to the rear 16' by 10' porch to BBQ or relax outdoors. The service areas include a mudroom and laundry room, tucked behind a pocket door, with access to the double garage.

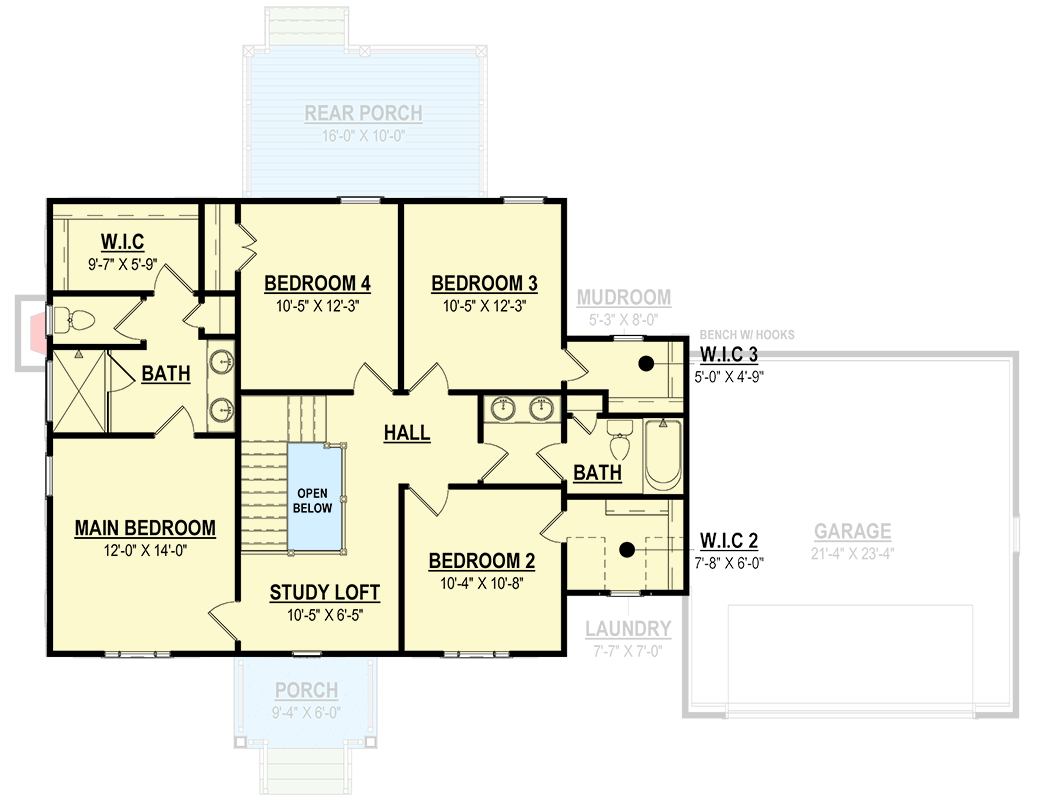

  • Four bedrooms are located upstairs, along with a study loft. The secondary bedrooms are good sized and share a compartmentalized bathroom.
  • The main bedroom occupies the left side of the second level and includes a 4-fixture bathroom with dual sinks and a walk-in closet.
What's Included
  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)

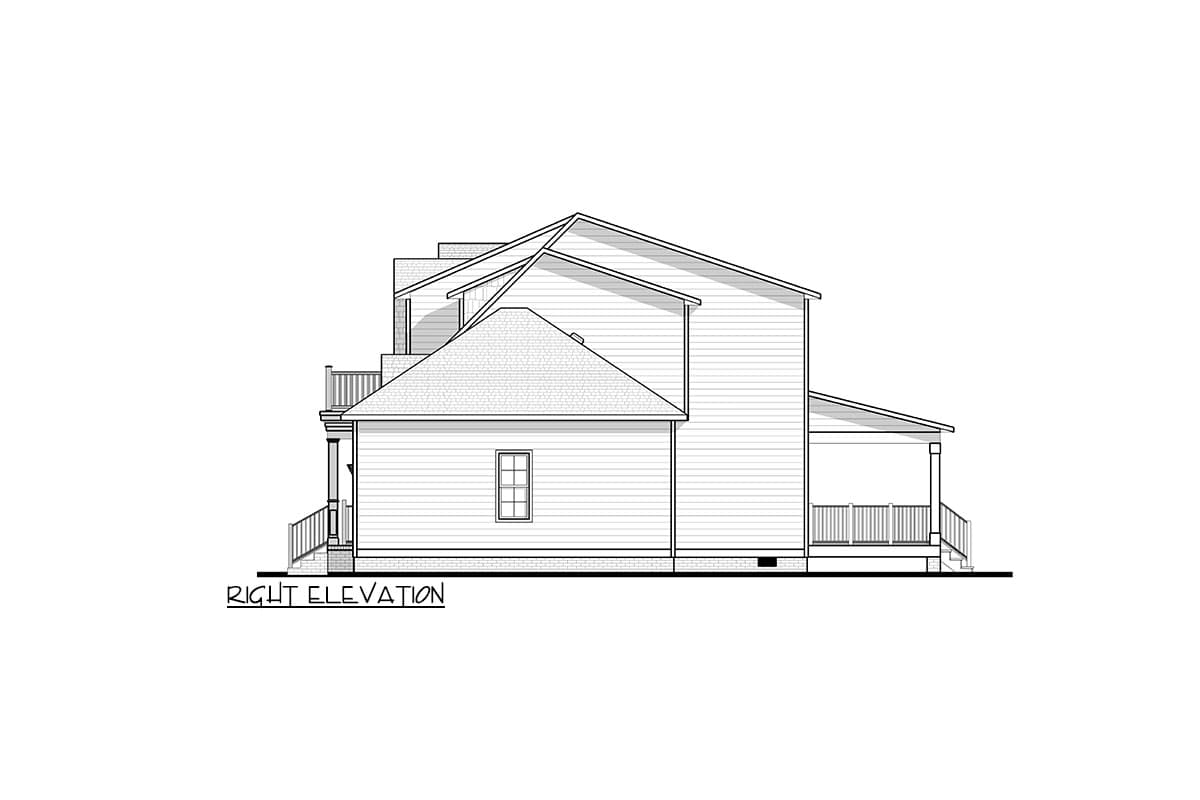

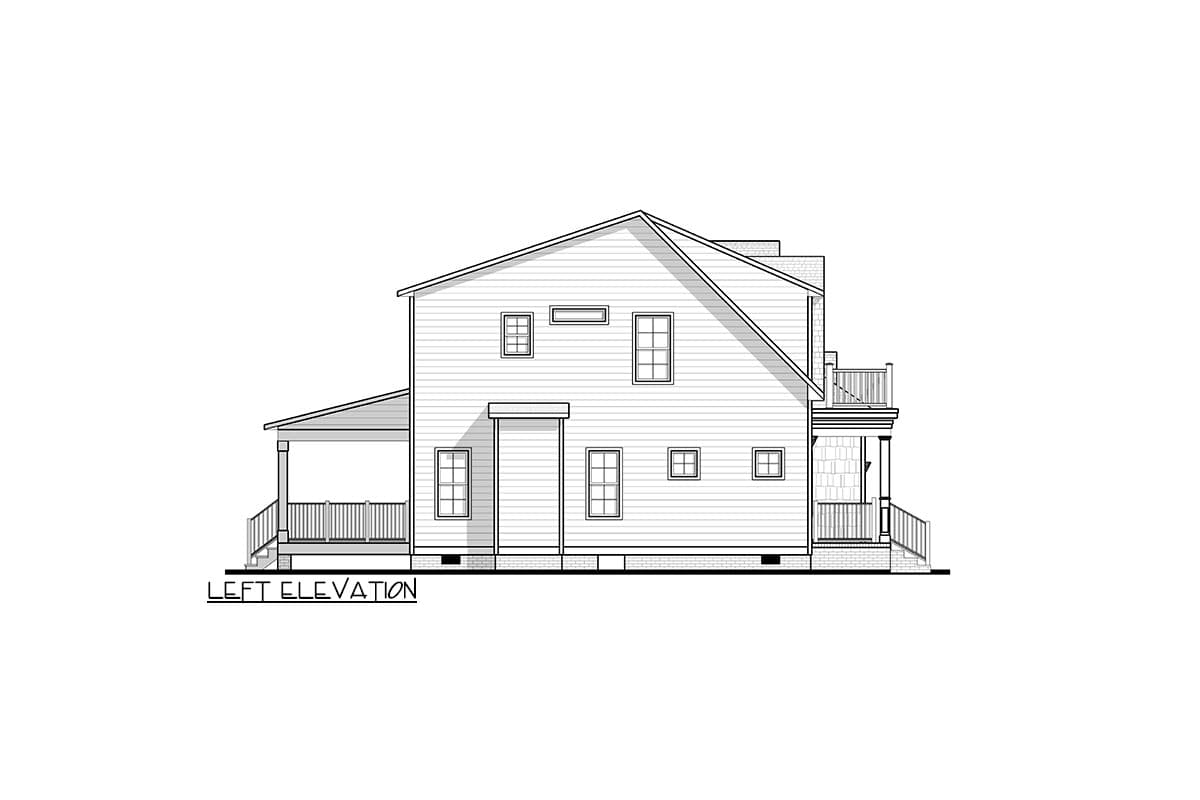

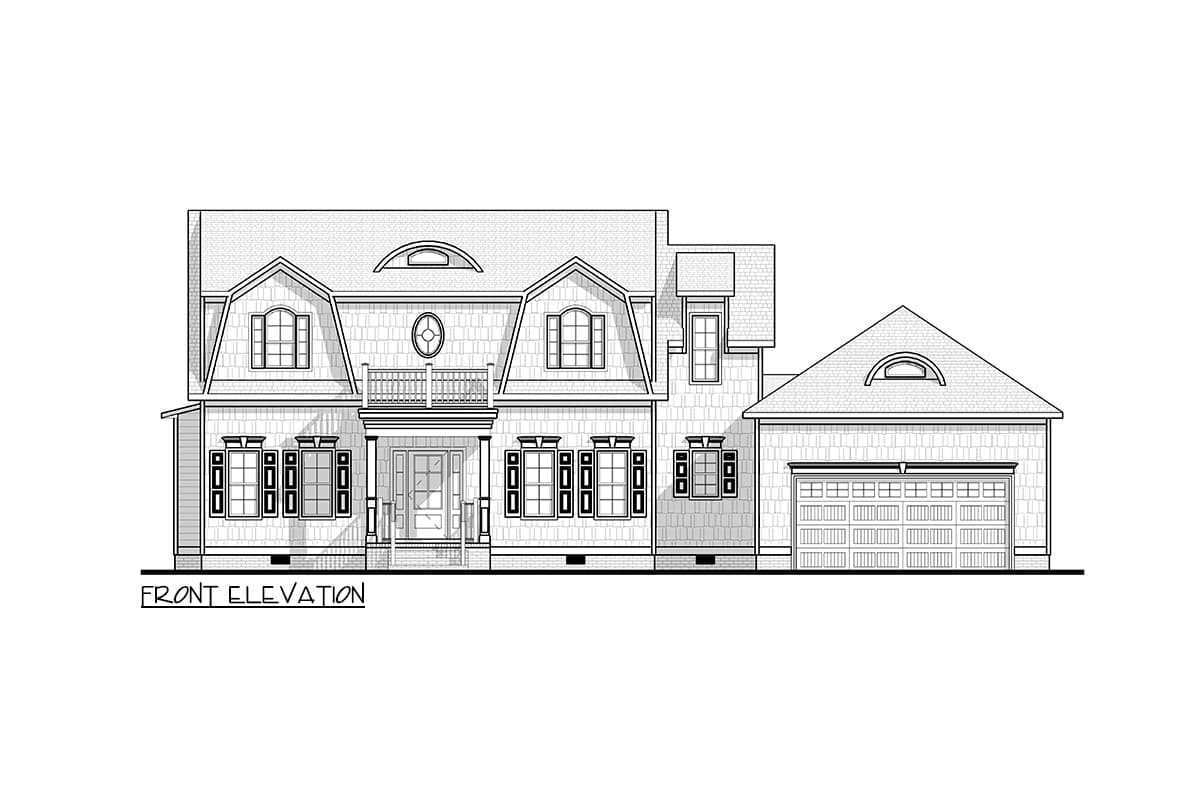

  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-Story Cape Cod Home Plan with Formal Dining Room and Den

  • 2,291

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,291 sq. ft.
  • 1st Floor: 1,135 sq. ft.
  • 2nd Floor: 1,156 sq. ft.

Dimensions

  • Width: 63' 8"
  • Depth: 34' 0"
  • Max ridge height: 25' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 544 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
