2-Story Charmer with Loft

Plan 8175LB

  • 1,237

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Stories

  • This 2-story house plan features two bedrooms and a loft on the second floor.
  • The master bedroom has a 3-sided bumpout giving you extra room and lots of light. A walk-in closet and bath are plusses.
  • The main floor features an open plan with a large living room with fireplace.
  • The kitchen opens to the dining room and counter seating in the living room provides a place for casual meals.
  • The washer/dryer are tucked away behind bi-fold doors.

What is Included in Our Plans?

We work with hundreds of designers and architects who work in a variety of styles.  It is important to note. Their plan packages may contain different details.

We strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below are examples of sheets that may be included in plan sets - please be aware that not every plan includes every one of these pages:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

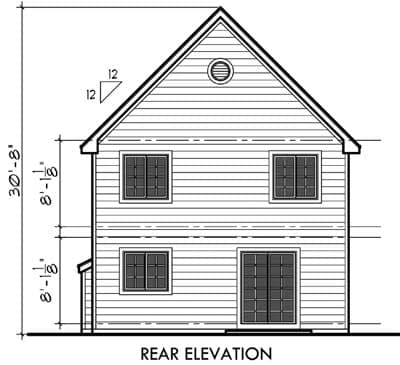

Exterior Elevations

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

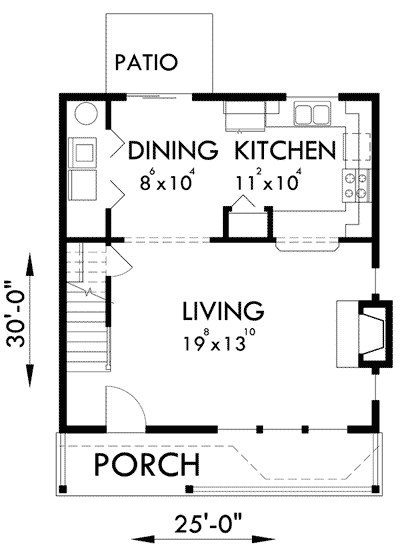

2-Story Charmer with Loft - 8175LB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
2-Story Charmer with Loft - 8175LB floor plan - 2nd Floor

Architectural Style

2-Story Charmer with Loft

  • 1,237

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,237 sq. ft.
  • 1st Floor: 625 sq. ft.
  • 2nd Floor: 612 sq. ft.

Dimensions

  • Width: 25' 0"
  • Depth: 30' 0"
  • Max ridge height: 38' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site

2-Story Charmer with Loft

  • 1,237

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

2-Story Charmer with Loft

  • 1,237

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 2

    Floors

Plan Details

Square Footage Breakdown

  • Total: 1,237 sq. ft.
  • 1st Floor: 625 sq. ft.
  • 2nd Floor: 612 sq. ft.

Dimensions

  • Width: 25' 0"
  • Depth: 30' 0"
  • Max ridge height: 38' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

    Main Level

    2nd Floor
