Plan 666101RAF
2-story Contemporary Home Plan on a Side Sloping Lot with Lower-level Guest Suite
Heated S.F.
4,748
Beds
5-6
Baths
5
Stories
2
Cars
3
What's Included
Plan Details
  • Beauty defines this well-appointed, contemporary home plan - ideal for a side sloping lot - complete with a private guest suite on the lower level.
  • A grand foyer welcomes you inside where a coat closet awaits your personal gear. The heart of the home is located to the left with oversized openings connecting the great room, kitchen, and dining room.
  • Relax at the eating bar available at the kitchen's prep island, and discover the adjacent deck that is perfect for a grill. Find additional workspace in the butler's pantry, next to the dining room.
  • A bedroom on the main level provides a flex space and could serve as a quiet den.
  • Upstairs, four bedrooms are joined by the laundry room. The master suite boasts an elegant vaulted ceiling, a massive walk-in closet, and a standalone tub in the 5-fixture bath.

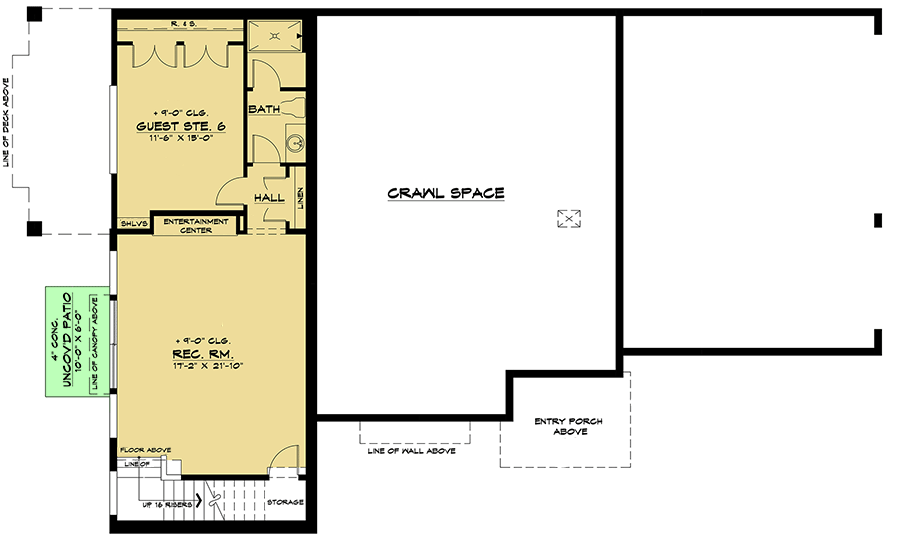

  • The lower level gives you a rec room with entertainment center and a guest suite with full bath. The rec room has outdoor access through sliding doors.
  • NOTE: The bonus room on the second floor is factored into the total living area.
What's Included
  • Cover Sheet with plan info
  • General notes - Note: codes will not include local state adopted amendments
  • Fully dimensions and detailed floor plans

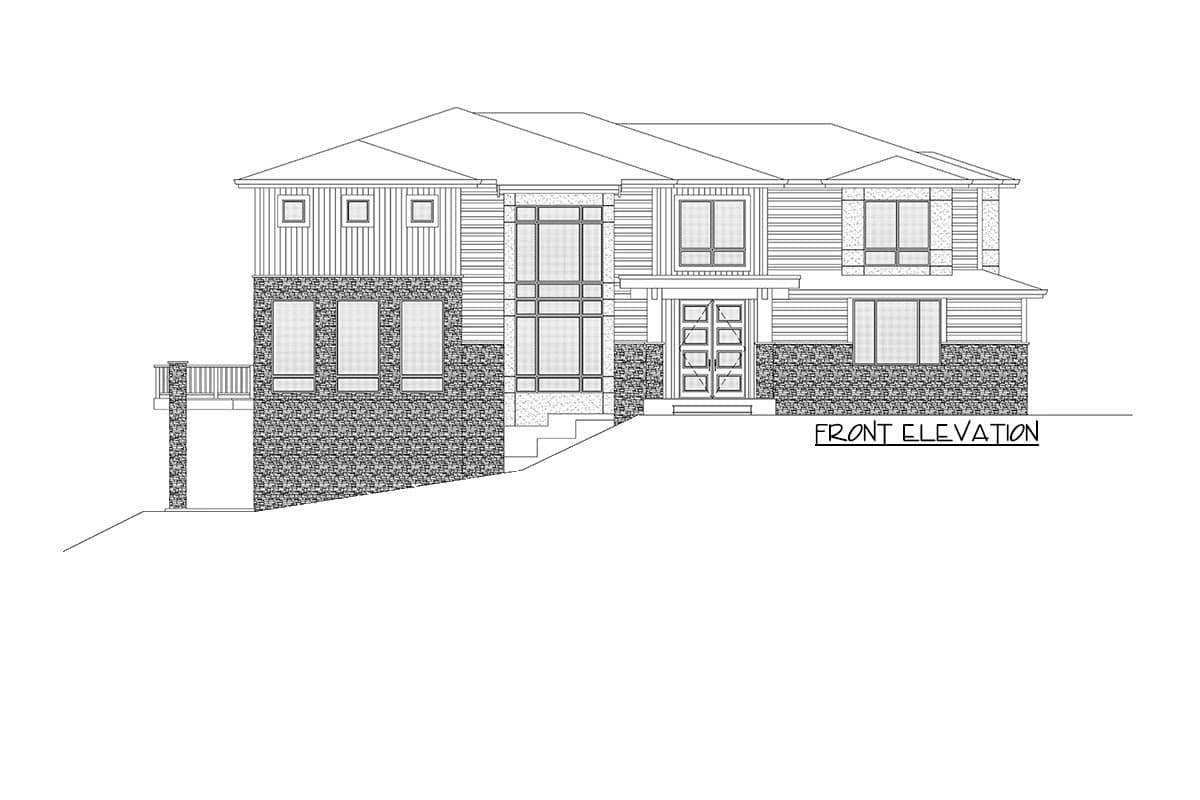

  • Elevations
  • Building cross section
  • Roof Plan
  • Details
  • Window Schedule
  • Original Structural plan FOR REFERENCE ONLY
What's Not Included
  • Architectural or Engineering Stamp  - handled locally when required
  • Site plans - handled locally - handled locally when required
  • Mechanical Drawings - handled locally when required
  • Plumbing Drawings  - handled locally when required
  • Electrical Drawings  - handled locally when required
  • Energy Calculations  - handled locally when required
  • Foundation and Framing plans   - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

2-story Contemporary Home Plan on a Side Sloping Lot with Lower-level Guest Suite

  • 4,748

    Heated s.f.

  • 5-6

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

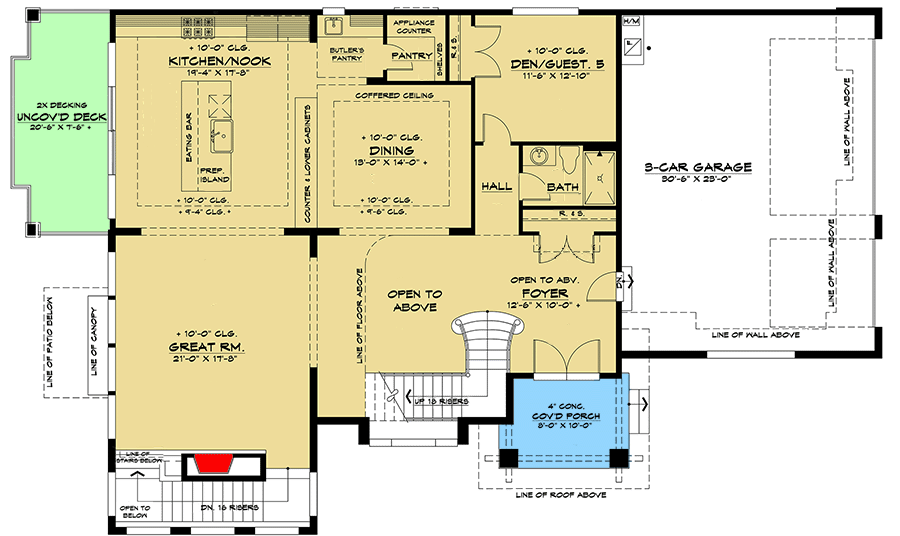

  • Main Level

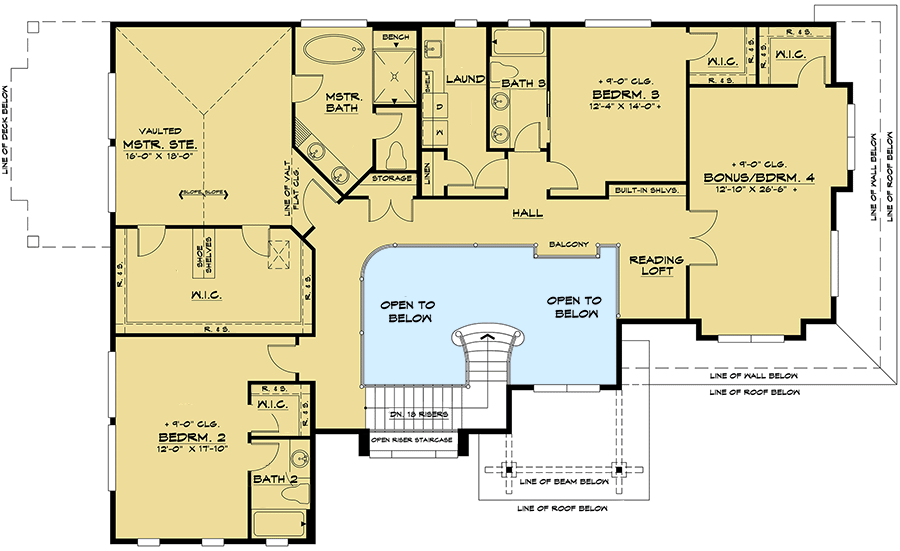

  • 2nd Floor

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,748 sq. ft.
  • Lower Level: 828 sq. ft.
  • 1st Floor: 1,810 sq. ft.
  • 2nd Floor: 2,110 sq. ft.

Dimensions

  • Width: 77' 6"
  • Depth: 47' 6"
  • Max ridge height: 36' 6"

Beds/Baths

  • Bedrooms: 5 or 6
  • Full bathrooms: 5

Garage

  • Type: Attached
  • Area: 702 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Secondary Pitch: .25 on 12
  • Framing Type: Truss
